Sony STR-KM5 - Heatsink, Main Board, and Surr Back Amp Board Removal

STR-KM5/KM7
9

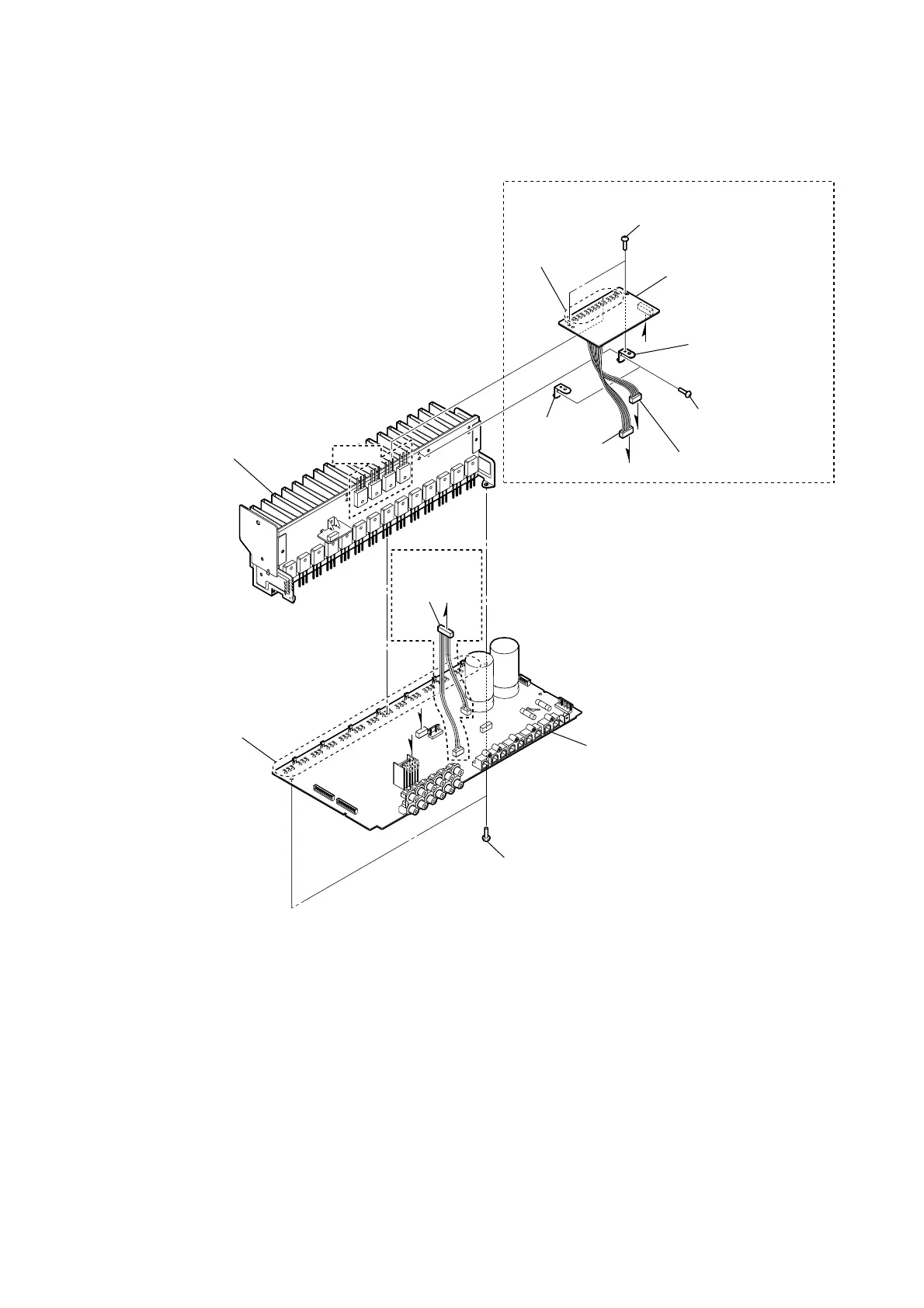

2-6. HEATSINK BLOCK, MAIN BOARD, SURR BACK AMP BOARD
Note: This illustration sees the MAIN board, SURR BACK AMP board from back side.
qs heatsink block
0 two screws
(+BVTP 3 u 8)
7 two screws
(+BVTP 3 u 8)
8 bracket (L)
1 CN405
(4P)
2 CN953
(6P)
3 CN954 (5P)
6 SURR BACK AMP board
8 bracket (L)
5 two screws
(+BVTP 3 u 8)
qa MAIN board
9 Remove the
forty-two solders.
4 Remove the
twelve solders.
(KM7)
(KM7)
(KM7)
I
I
G
G
H
H
Ver. 1.4
