Sony STR-SE491 - Rear Panel Descriptions; STR-DE535;DE435 Rear Panel Connections; STR-SE491 Rear Panel Connections

28

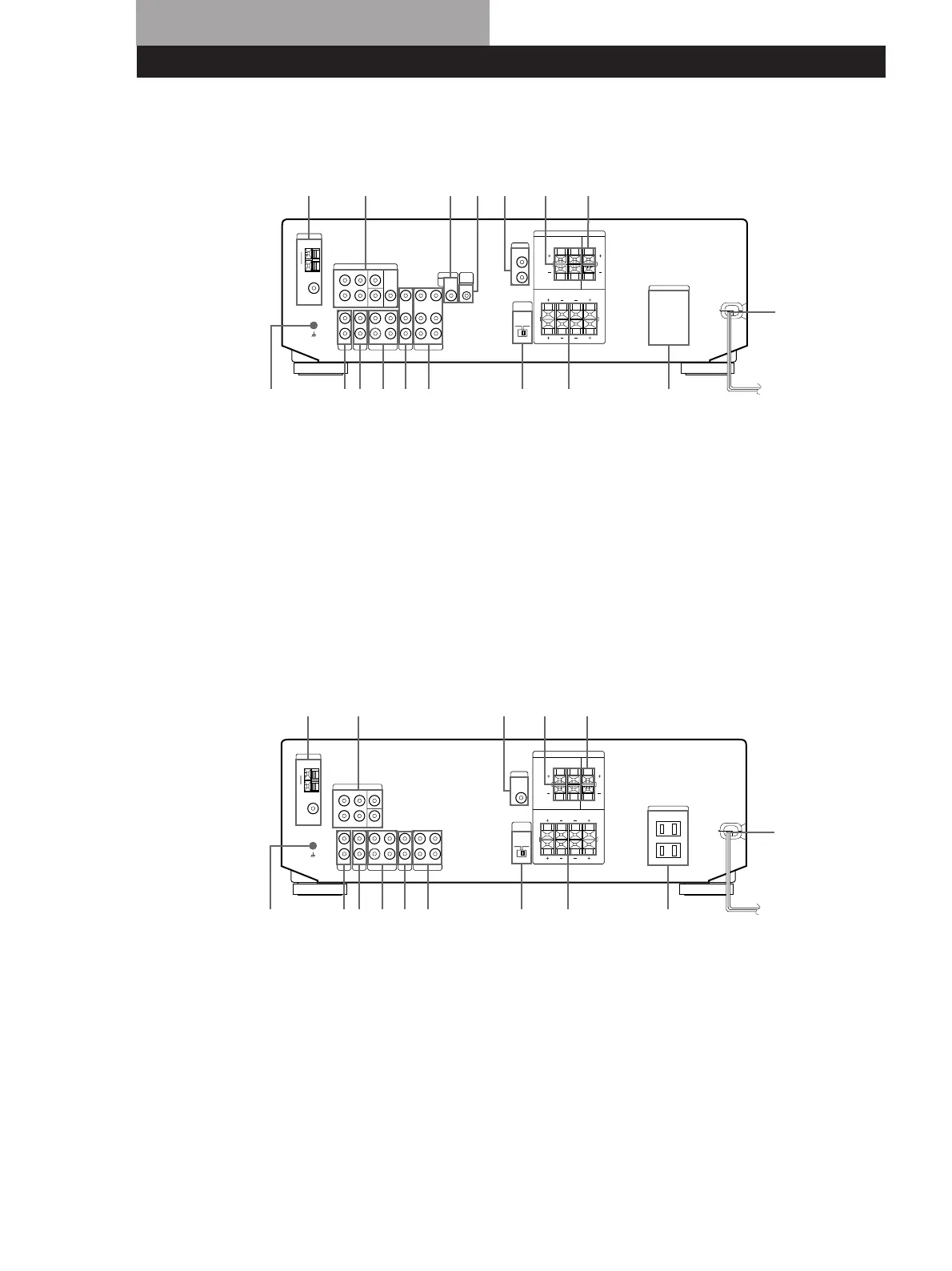

Rear Panel Descriptions
1 ANTENNA (AM/FM)
2 y ground terminal (STR-DE535
only)
3 PHONO (STR-DE535 only)
4 CD
5 MD/TAPE
6 TV/SAT
7 VIDEO
8 5.1 CH/DVD
9 MONITOR
!º CTRL A1 II (STR-DE535 only)
!¡ WOOFER (STR-DE535–2 pins,
STR-DE435– 1 pin)
!™ SPEAKERS REAR
!£ SPEAKERS CENTER
!¢ AC power cord
!∞ SWITCHED AC OUTLET
(STR-DE535–2-ganged,
STR-DE435–1-ganged)
!§ SPEAKERS FRONT (A/B)
!¶ IMPEDANCE SELECTOR
STR-DE535/DE435 only
1
8 9 !™ !£!¡!º
!¢
2 34 5 6 7 !§ !∞!¶
1 ANTENNA (AM/FM)
2 y ground terminal
3 PHONO
4 CD
5 MD/TAPE
6 TV/SAT
7 VIDEO
8 5.1 CH/DVD
9 WOOFER
!º SPEAKERS REAR
!¡ SPEAKERS CENTER
!™ AC power cord
!£ SWITCHED AC OUTLET
!¢ SPEAKERS FRONT (A/B)
!∞ IMPEDANCE SELECTOR
STR-SE491 only
1
8 !º !¡9
2 34 5 6 7 !¢ !£!∞
!™
