Sony TA-F333ESL Service Manual

TA-F333ESL/F770ES/F870ES

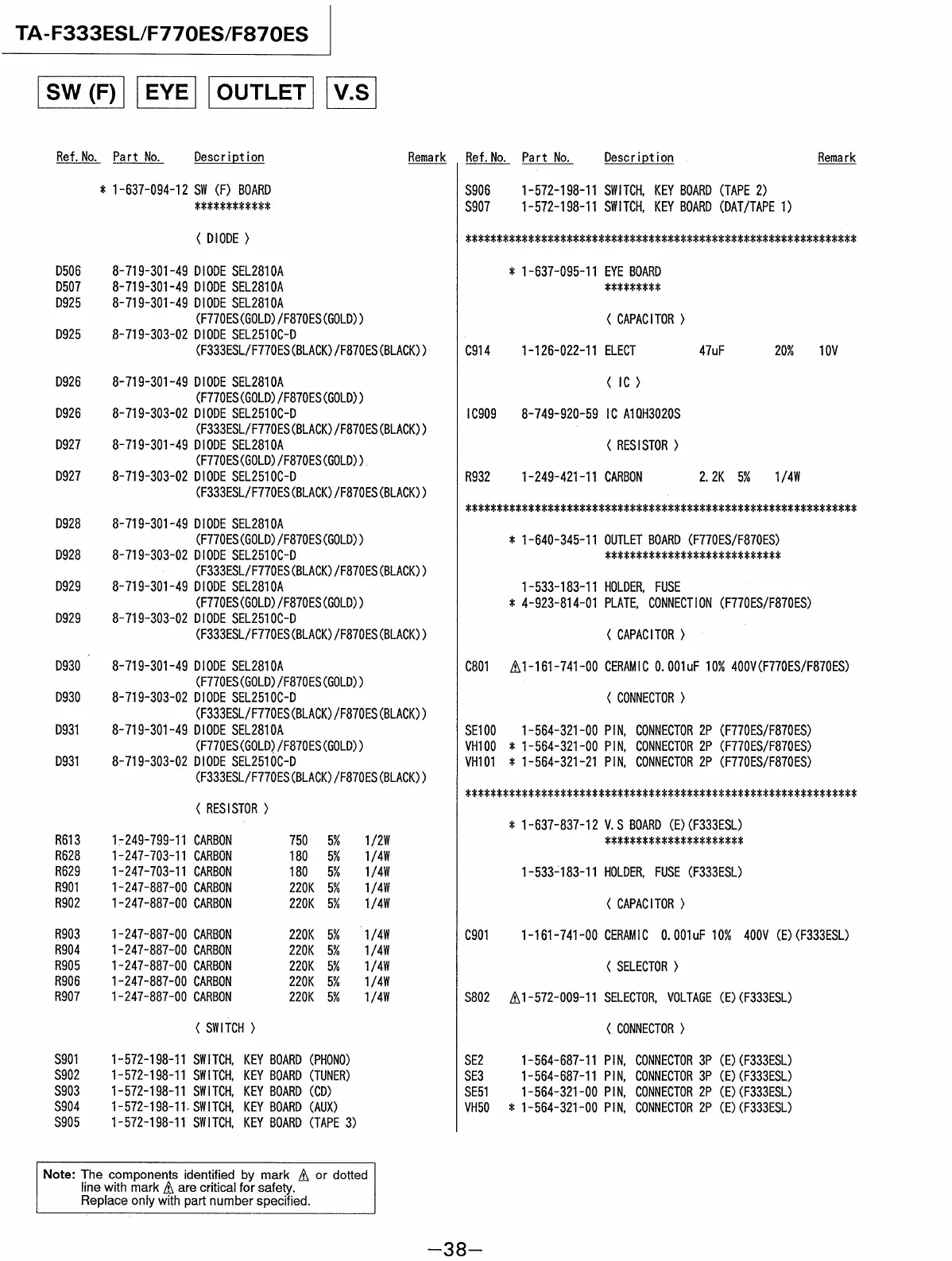

Ref.No. Part No. Description
* 1-637-094-12 SW (F) BOARD
RERKEAERAERE
« DIODE >
D506 8-719-301-49 DIODE SEL2810A
D507 8-719-301-49 DIODE SEL2810A
D925 8-719-301-49 DIODE SEL2810A
(FT70ES (GOLD) /F870ES (GOLD) )
D925 8-719-303-02 DIODE SEL2510C-D
(F333ESL/F770ES (BLACK) /F870ES (BLACK) )
D926 8-719-301-49 DIODE SEL2810A
(FT70ES (GOLD) /F870ES (GOLD) )
D926 8-719-303-02 DIODE SEL2510C-D
(F333ESL/F770ES (BLACK) /F870ES (BLACK) )
D927 8-719-301-49 DIODE SEL2810A
(FT70ES (GOLD) /F870ES (GOLD) ).
D927 8-719-303-02 DIODE SEL2510C-D
(F333ESL/F770ES (BLACK) /F870ES (BLACK) )
D928 8-719-301-49 DIODE SEL2810A
(FT70ES (GOLD) /F870ES (GOLD) )
D928 8-719-303-02 DIODE SEL2510C-D
(F333ESL/F770ES (BLACK) /F870ES (BLACK) )
D929 8-719-301-49 DIODE SEL2810A
(FT70ES (GOLD) /F870ES (GOLD) )
D929 8-719-303-02 DIODE SEL2510C-D
(F333ESL/F770ES (BLACK) /F870ES (BLACK) )
D930 8-719-301-49 DIODE SEL2810A
(FTT0ES (GOLD) /F870ES (GOLD) )
D930 8-719-303-02 DIODE SEL2510C-D
(F333ESL/F770ES (BLACK) /F870ES (BLACK) )
D931 8-719-301-49 DIODE SEL2810A
(FTT0ES (GOLD) /F870ES (GOLD) )
D931 8-719-303-02 DIODE SEL2510C-D
(F333ESL/F770ES (BLACK) /F870ES (BLACK) )
{ RESISTOR )
R613 1-249-799-11 CARBON 750 5% 1/2W
R628 1-247-703-11 CARBON 180 5% 1/4
R629 1-247-703-11 CARBON 180 5% 1/4W
R901 1-247-887-00 CARBON 220K 5% 1/44
R902 1-247-887-00 CARBON 220K 5% 1/4W
R903 1-247-887-00 CARBON 220K 5% 1/4W
R904 1-247-887-00 CARBON 220K 5% 1/4W
R905 1-247-887-00 CARBON 220K 54 = 1/4
R906 1-247-887-00 CARBON 220K 5% 1/4W
R907 1-247-887-00 CARBON 220K 5% 1/48
{ SWITCH >
$901 1-572-198-11 SWITCH, KEY BOARD (PHONO)
$902 1-572-198-11 SWITCH, KEY BOARD (TUNER)
$903 1-572-198-11 SWITCH, KEY BOARD (CD)
$904 1-572-198-11. SWITCH, KEY BOARD (AUX)
$905 1-572-198-11 SWITCH, KEY BOARD (TAPE 3)
Note: The components identified by mark A\ or dotted
Remark
914
line with mark A\ are critical for safety.
Replace only with part number specified.
Remark Ref.No. Part No. Description
$906
$907
1-572-198-11 SWITCH, KEY BOARD (TAPE 2)
1-572-198-11 SWITCH, KEY BOARD (DAT/TAPE 1)
EKERERERAKARAERAERAERAELESAERER AAA RARE EAE LEE RE LERRE RERA ERE ERS
* 1-637-095-11 EYE BOARD
EKEERARRE
{ CAPACITOR >
1-126-022-11 ELECT 47uF 20% 10V
(IC >
1¢909 = 8-749-920-59 IC A10H3020S
{ RESISTOR >
R932 1-249-421-11 CARBON 2.2K 5% 1/4W
ERRERAERAKKKEEKAKERAE KARA ARE AK RAK AAKE ERE KE ARE ERK ERE ELAR ERA E
* 1-640-345-11 OUTLET BOARD (F770ES/F870ES)
HERRERREKE ERE ERR ERE RE ERR ERES
1-533-183-11 HOLDER, FUSE
* 4-923-814-01 PLATE, CONNECTION (F770ES/F870ES)
{ CAPACITOR >
C801 =A\1-161-741-00 CERAMIC 0. 001uF 10% 400V(F770ES/F870ES)
{ CONNECTOR >
SE100 —- 1-564-321-00 PIN, CONNECTOR 2P (F770ES/F870ES)
VH100 * 1-564-321-00 PIN, CONNECTOR 2P (F770ES/F870ES)
VH101 * 1-564-321-21 PIN, CONNECTOR 2P (F770ES/F870ES)
KRKERELRERARERAAEARAK KARA RAR ERK RRERRA ARE KERR ERE ERE REAR EER RE
* 1-637-837-12 V.S BOARD (E) (F333ESL)
HEKKRERREERERAR RARE ERE
1-533-183-11 HOLDER, FUSE (F333ESL)
« CAPACITOR >
C901 1-161-741-00 CERAMIC 0.001uF 10% 400V (E) (F333ESL)
{ SELECTOR >
$802 A\1-572-009-11 SELECTOR, VOLTAGE (E) (F333ESL)
« CONNECTOR )
SE2 1-564-687-11 PIN, CONNECTOR 3P (E) (F333ESL)
SE3 1-564-687-11 PIN, CONNECTOR 3P (E) (F333ESL)
SE51 1-564-321-00 PIN, CONNECTOR 2P (E) (F333ESL)
VH50 = ® : 1-564-321-00 PIN, CONNECTOR 2P (E) (F333ESL)
