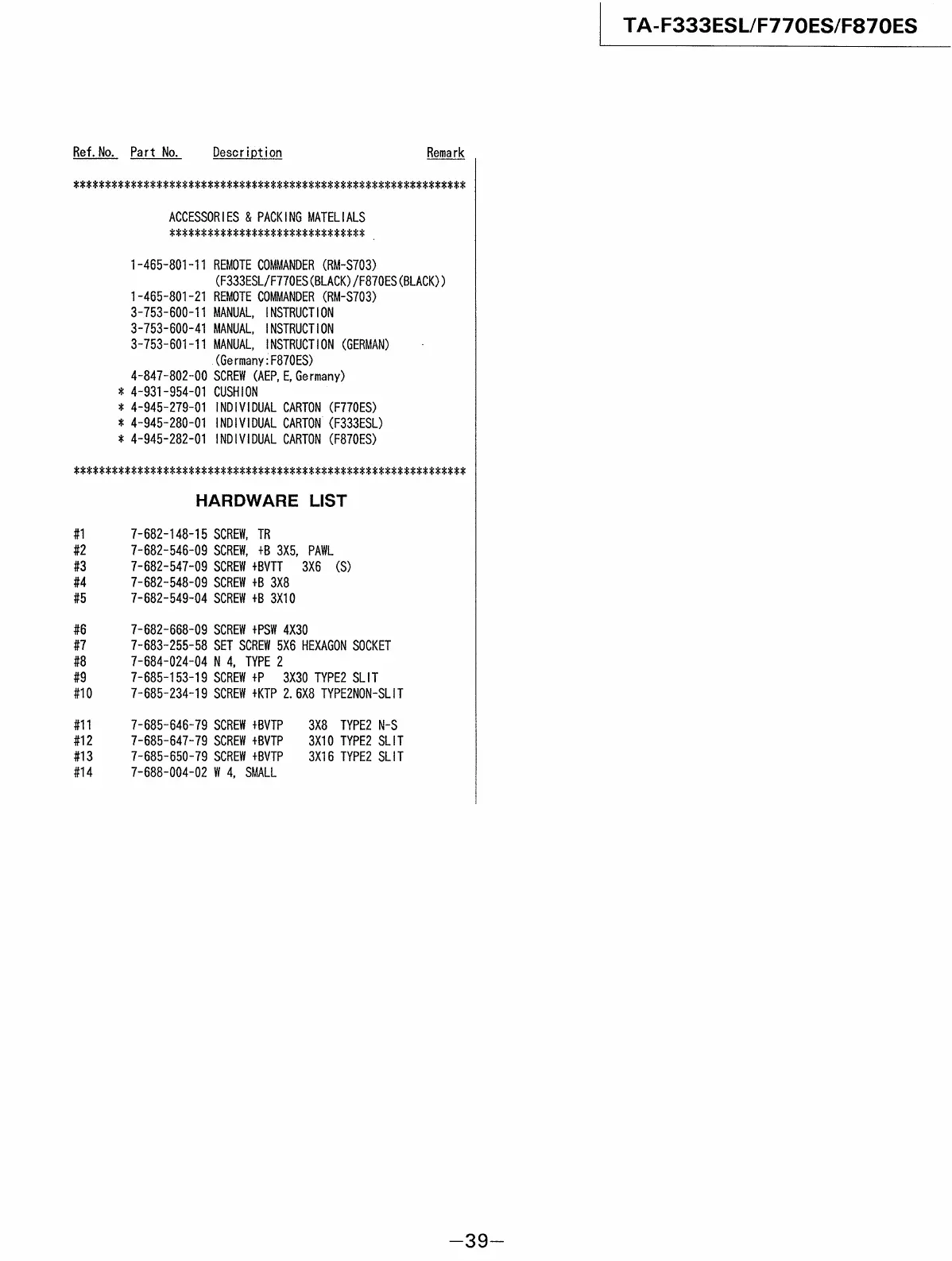

Sony TA-F333ESL Service Manual

Ref.No. Part No. Description Remark
RREREARAKRA ERE EKER ARARA SAAR ER ARR R EK ERE RAE RA ERA AAA RE RR ERE RK
ACCESSORIES & PACKING MATELIALS
HRERARARER EERE ELAR ERE RE RARER
1-465-801-11 REMOTE COMMANDER (RM-S703)
(F333ESL/F770ES (BLACK) /F870ES (BLACK) )
1-465-801-21 REMOTE COMMANDER (RM-S703)
3-753-600-11 MANUAL, INSTRUCTION
3-753-600-41 MANUAL, {INSTRUCTION
3-753-601-11 MANUAL, INSTRUCTION (GERMAN)
(Germany : F870ES)
4-847-802-00 SCREW (AEP, E, Germany)
* 4-931-954-01 CUSHION
* 4-945-279-01 INDIVIDUAL CARTON (F770ES)
* 4-945-280-01 INDIVIDUAL CARTON (F333ESL)
* 4-945-282-01 INDIVIDUAL CARTON (F870ES)
CSS ess tess ssssreseri sss ess sotetesssses sess tssest esses sss ese ses 3
#1
#2
#3
#4
#5
#6
#7
#8
#10
#11
#12
#13
#14
HARDWARE LIST
7-682-148-15 SCREW, TR
7-682-546-09 SCREW, +B 3X5, PAWL
7-682-547-09 SCREW +BVTT 3X6 (S)
7-682-548-09 SCREW +B 3X8
7-682-549-04 SCREW +B 3X10
7-682-668-09 SCREW +PSW 4X30
7-683-255-58 SET SCREW 5X6 HEXAGON SOCKET
7-684-024-04 N 4, TYPE 2
7-685-153-19 SCREW +P 3X30 TYPE2 SLIT
1-685-234-19 SCREW +KTP 2. 6X8 TYPE2NON-SLIT
7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
1-685-647-79 SCREW +BVTP = 3X10 TYPE2 SLIT
7-685-650-79 SCREW +BVTP = 3X16 TYPE2 SLIT
7-688-004-02 W 4, SMALL
—39—
| TA-F333ESL/F770ES/F870ES
