Sony TA-FA7ES - Panel and Chassis Exploded Views

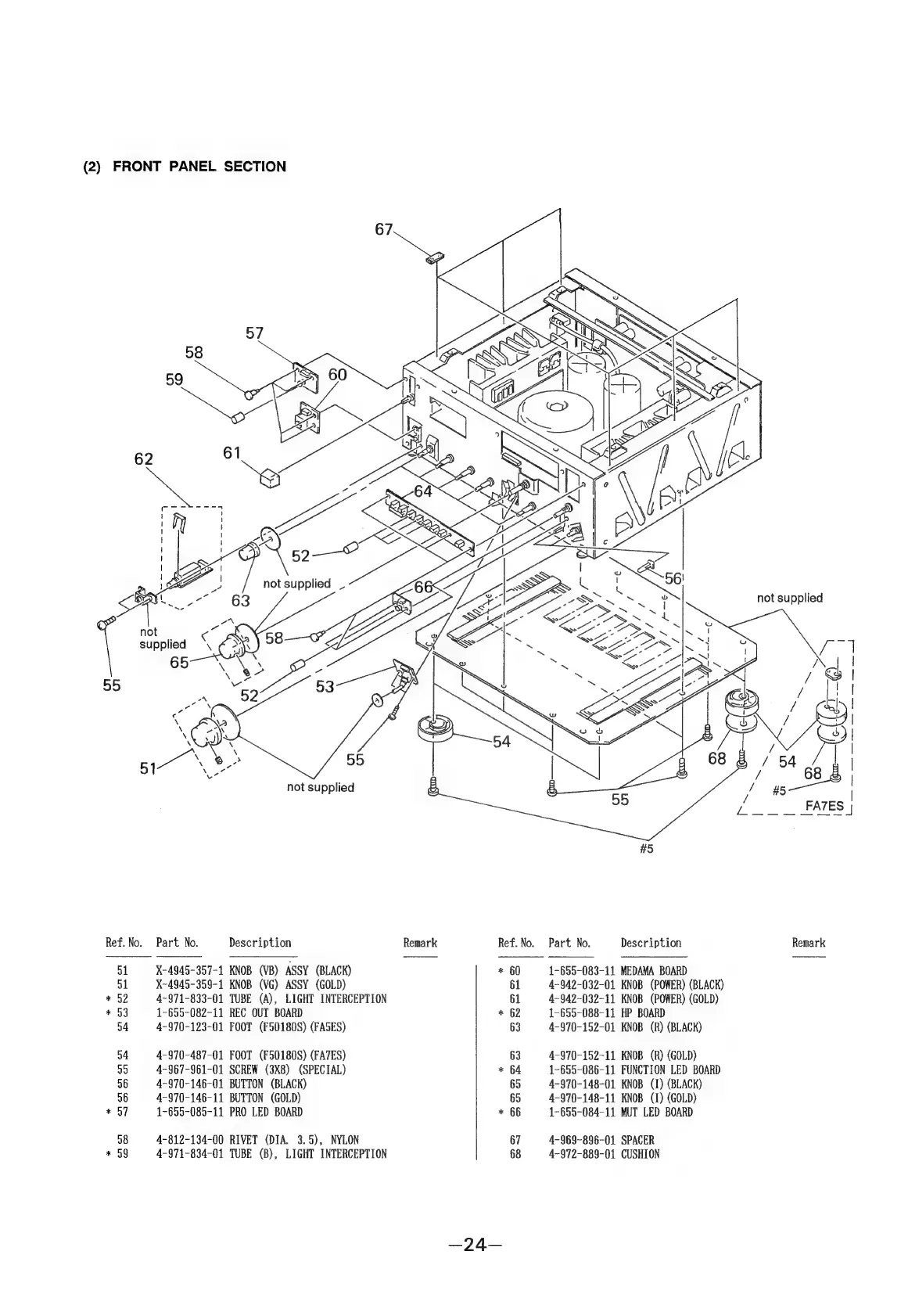

(2) FRONT PANEL SECTION
67
not supplied
not
supplied
65
55
<
\
x
BI
not supplied
#5
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 X-4945-357-1 KNOB (VB) ASSY (BLACK) *« 60 1-655-083-11 MEDAMA BOARD
51 X-4945-359-1 KNOB (VG) ASSY (GOLD) 61 4-942-032-01 KNOB (POWER) (BLACK)
* 52 4-971-833-01 TUBE (A), LIGHT INTERCEPTION 61 4-942-032-11 KNOB (POWER) (GOLD)
* 53 1-655-082-11 REC OUT BOARD * 62 1-655-088-11 HP BOARD
54 4-970-123-01 FOOT (F50180S) (FASES) 63 4-970-152-01 KNOB (R) (BLACK)
54 4-970-487-01 FOOT (F50180S) (FA7ES) 63 4-970-152-11 KNOB (R) (GOLD)
55 4-967-961-01 SCREW (3X8) (SPECIAL) * 64 1-655-086-11 FUNCTION LED BOARD
56 4-970-146-01 BUTTON (BLACK) 65 4-970-148-01 KNOB (I) (BLACK)
56 4-970-146-11 BUTTON (GOLD) 65 4-970-148-11 KNOB (I) (GOLD)
* 57 1-655-085-11 PRO LED BOARD * 66 1-655-084-11 MUT LED BOARD
58 4-812-134-00 RIVET (DIA. 3.5), NYLON 67 4-969-896-01 SPACER
* 59 4-971-834-01 TUBE (B), LIGHT INTERCEPTION 68 4-972-8859-01 CUSHION
