Sony TA-FA7ES - Exploded Views and Part Identification; Cabinet and External Exploded Views

NOTE:
@ -XX and -X mean standardized parts, so they
may have some difference from the original
one.
® Color
Example:
KNOB, BALANCE (WHITE)... (RED)
ih t

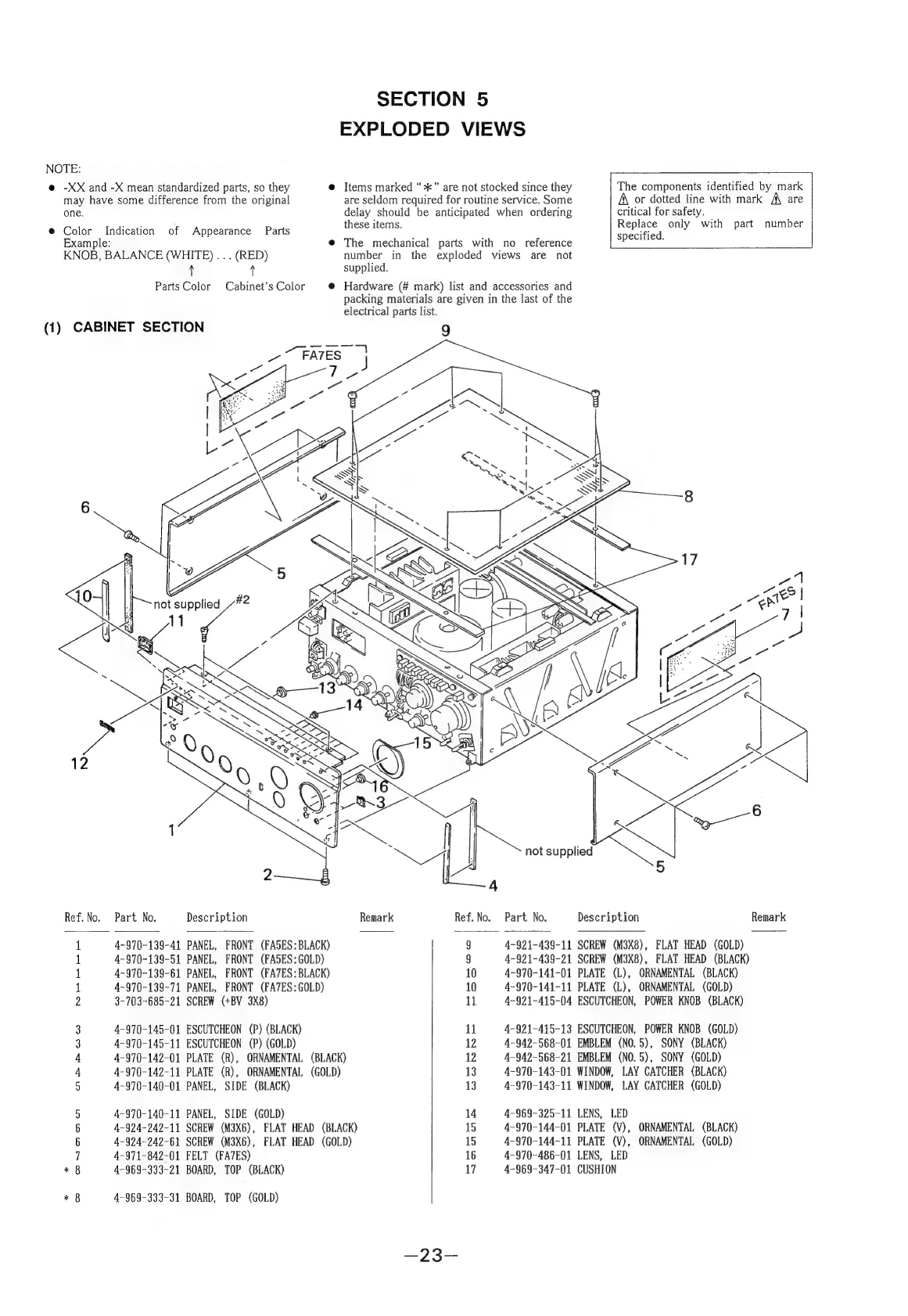

(1) CABINET SECTION
Indication
SECTION 5
EXPLODED VIEWS
of Appearance Parts
@ The mechanical parts with no reference
number in the exploded views are not
supplied.
Parts Color Cabinet’s Color e
not supplied #2
11 a
Remark
FRONT (FA7ES: GOLD)
4-924-242-11 SCREW (M3X6), FLAT HEAD (BLACK)
4-924-242-61 SCREW (M3X6), FLAT HEAD (GOLD)
12
Ref. No. Part No. Description
1 4~970-139-41 PANEL, FRONT (FA5ES:BLACK)
1 4-970-139-51 PANEL, FRONT (FASES: GOLD)
1 4-970-139-61 PANEL, FRONT (FA7ES:BLACK)
1 4-970-139-71 PANEL,
2 3-703-685-21 SCREW (+BV 3X8)
3 4-970-145-01 ESCUTCHEON (P) (BLACK)
3 4-970-145-11 ESCUTCHEON (P) (GOLD)
4 4-970-142-01 PLATE (R), ORNAMENTAL (BLACK)
4 4-970-142-11 PLATE (R), ORNAMENTAL (GOLD)
5 4-970-140-01 PANEL, SIDE (BLACK)
5 4-970-140-11 PANEL, SIDE (GOLD)
6
6
7 4-971-842-01 FELT (FATES)
* 8 4-969-333-21 BOARD, TOP (BLACK)
* 8 4-969-333-31 BOARD, TOP (GOLD)
@ Items marked “*«” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
The components identified by mark
A\ or dotted line with mark A\ are
critical for safety.
Replace only with part number
specified.
Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
not supplied
Remark
Part No. Description
4-921-439-11 SCREW (M3X8), FLAT HEAD (GOLD)
4-921-439-21 SCREW (M3X8), FLAT HEAD (BLACK)
4-970-141-01 PLATE (L), ORNAMENTAL (BLACK)
4-970-141-11 PLATE (L), ORNAMENTAL (GOLD)
4-921-415-04 ESCUTCHEON, POWER KNOB (BLACK)
4-921-415-13 ESCUTCHEON, POWER KNOB (GOLD)
4-942-568-01 EMBLEM (NO. 5), SONY (BLACK)
4-942-568-21 EMBLEM (NO.5), SONY (GOLD)
4-970-143-01 WINDOW, LAY CATCHER (BLACK)
4-970-143-11 WINDOW, LAY CATCHER (GOLD)
4-969-325-11 LENS, LED
4-970-144-01 PLATE (V), ORNAMENTAL (BLACK)
4-970-144-11 PLATE (V), ORNAMENTAL (GOLD)
4-970-486-01 LENS, LED
4-969-347-01 CUSHION
