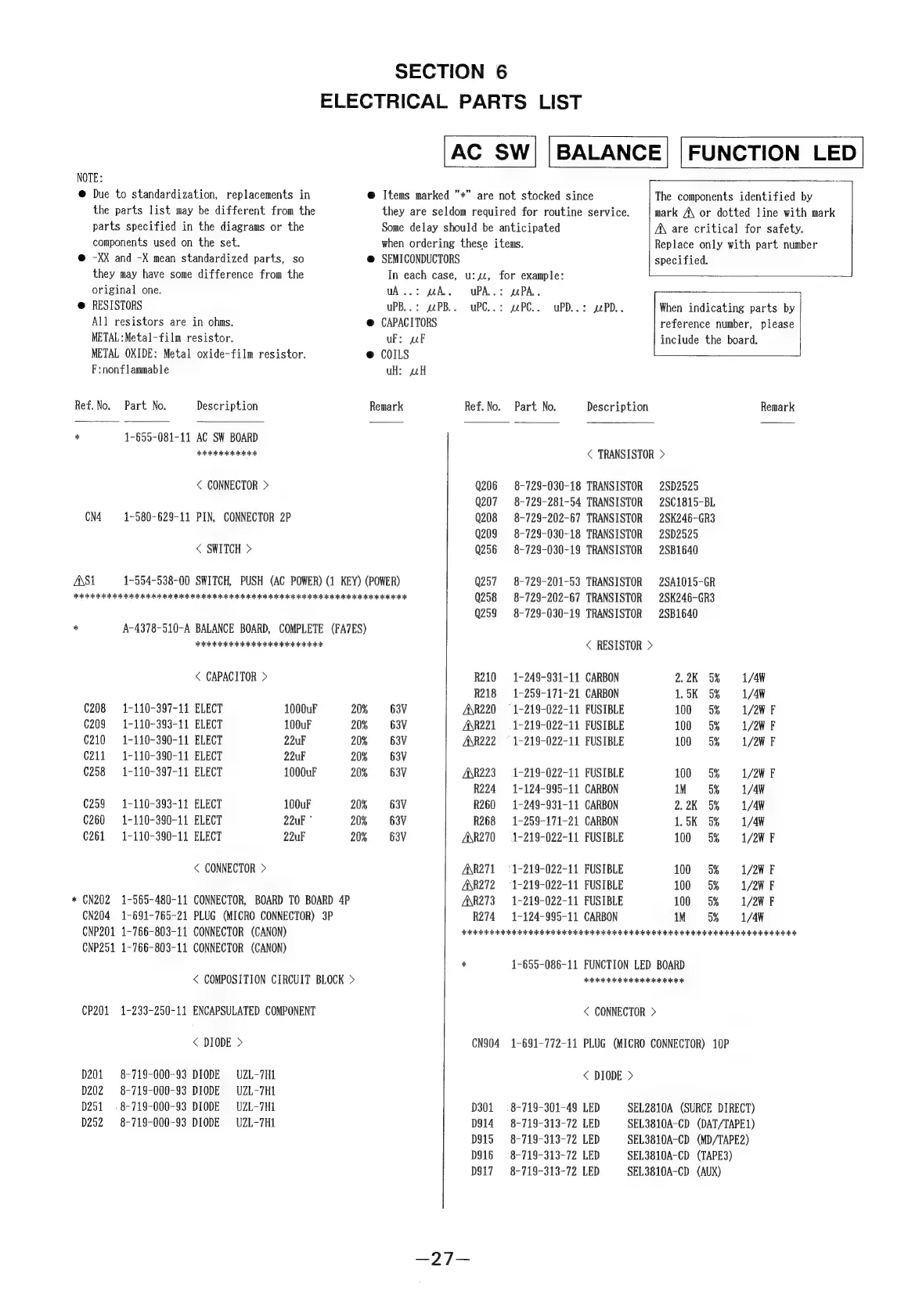

Sony TA-FA7ES - Electrical Parts List and Component Details; Electrical Components by Section

SECTION 6
ELECTRICAL PARTS LIST
NOTE:
@ Due to standardization, replacements in @ Items marked ”*” are not stocked since The components identified by
the parts list may be different from the they are seldom required for routine service. mark A\ or dotted line with mark
parts specified in the diagrams or the Some delay should be anticipated A\ are critical for safety.
components used on the set. when ordering these items. Replace only with part number
@ -XX and -X mean standardized parts, so @ SEMICONDUCTORS specified.
they may have some difference from the In each case, u:y, for example: oa
original one. uA..: WA. uPA..: uPA.
@ RESISTORS uPB..: s2PB.. uPC..: gPC.. uPD..: xePD.. When indicating parts by
Ali resistors are in ohms. @ CAPACITORS reference number, please
METAL: Metal-film resistor. uF: uF include the board.
METAL OXIDE: Metal oxide-film resistor. e@ COILS
F:nonflammable uH: 2H
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 1-655-081-11 AC SW BOARD
oloiooooioiootok < TRANSISTOR >
< CONNECTOR > Q206 8-729-030-18 TRANSISTOR 2SD2525
Q207 8-729-281-54 TRANSISTOR 28C1815-BL
CN4 1-580-629-11 PIN, CONNECTOR 2P Q208 8-729-202-67 TRANSISTOR 2SK246-GR3
Q209 8-729-030-18 TRANSISTOR 28D2525
< SWITCH > Q256 8-729-030-19 TRANSISTOR 2SB1640
ASI 1-554-538-00 SWITCH, PUSH (AC POWER) (1 KEY) (POWER) Q257 8-729-201-53 TRANSISTOR 2SA1015-GR
JE OSI OS IS IASC GOI CO IGG og SIO IOI AS Ga OA III mR Q258 8-729-202-67 TRANSISTOR 2SK246-GR3
Q259 8-729-030-19 TRANSISTOR 2SB1640
X* A-4378-510-A BALANCE BOARD, COMPLETE (FA7ES)
Jeo oo cioloioioobototok totok ok < RESISTOR >
< CAPACITOR > R210 1-249-931-11 CARBON 2.2K 5% 1/4W
R218 1-259-171-21 CARBON 1.5K 5% 1/4W
C208 1-110-397-11 ELECT 1000uF 20% 63V A\R220 =: 1-219-022-11 FUSIBLE 100 «5% 1/2W F
C209 1-110-393-11 ELECT 100uF 20% 63V A\R221 = 1-219-022-11 FUSIBLE 100 «5% 1/2W F
C210 1-110-390-11 ELECT 22uF 20% 63V A\R222 = 1-219-022-11 FUSIBLE 100 95% 1/2W F
C211 1-110-390-11 ELECT 22uF 20% 63V
€258 1-110-397-11 ELECT 1000uF 20% 63V A\R223 =: 1-219-022-11 FUSIBLE 100 5% 1/2W F
R224 1-124-995-11 CARBON 1M a” 1/4W
(259 1-110-393-11 ELECT 100uF 20% 63V R260 1-249-931-11 CARBON 2.2K 5% 1/4W
C260 = =1-110-390-11 ELECT 22uF * 20% 63V R268 1-259-171-21 CARBON 1.5K 5% 1/4W
C261 1-110-390-11 ELECT 22uF 20% 63V ANR270 =: 1-219-022-11 FUSIBLE 100 «5% 1/2W F
< CONNECTOR > A\R271 =: 1-219-022-11 FUSIBLE 100 5% 1/2W F
ANR272 =: 1-219-022-11 FUSIBLE 100 §=5% 1/2W F
* ON202 1-565-480-11 CONNECTOR, BOARD TO BOARD 4P ANR273~—-1-219-022-11 FUSIBLE 100 95% 1/2W F
CN204 1-691-765-21 PLUG (MICRO CONNECTOR) 3P R274 1-124-995-11 CARBON 1M 5% 1/4W
CNP201 1-766-803-11 CONNECTOR (CANON) FIO IOI IO OO Ooo a i ioioioiolotototk iiokolok tok ptok
CNP251 1-766-803-11 CONNECTOR (CANON)
* 1-655-086-11 FUNCTION LED BOARD
< COMPOSITION CIRCUIT BLOCK > Jodoioiotoloiooloioioioioloiiok
CP201 1-233-250-11 ENCAPSULATED COMPONENT < CONNECTOR >
< DIODE > CN904 1-691-772-11 PLUG (MICRO CONNECTOR) 10P
D201 8-719-000-93 DIODE UZL-7H1 < DIODE >
D202 8-719-000-93 DIODE UZL-7H1
D251 = 8-719-000-93 DIODE UZL-7H1 D301 = 8-719-301-49 LED SEL2810A (SURCE DIRECT)
D252 = 8-719-000-93 DIODE UZL-7H1 D914 = 8-719-313-72 LED SEL3810A-CD (DAT/TAPE1)
D915 = 8-719-313-72 LED SEL3810A-CD (MD/TAPE2)
D916 = 8-719-313-72 LED SEL3810A-CD (TAPE3)
D817 8-719-313-72 LED SEL3810A-CD (AUX)
97
