Sony TA-FE320R - Exploded Views and Part Identification; Front Panel Section Exploded View

– 19 –
SECTION 4
EXPLODED VIEWS
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

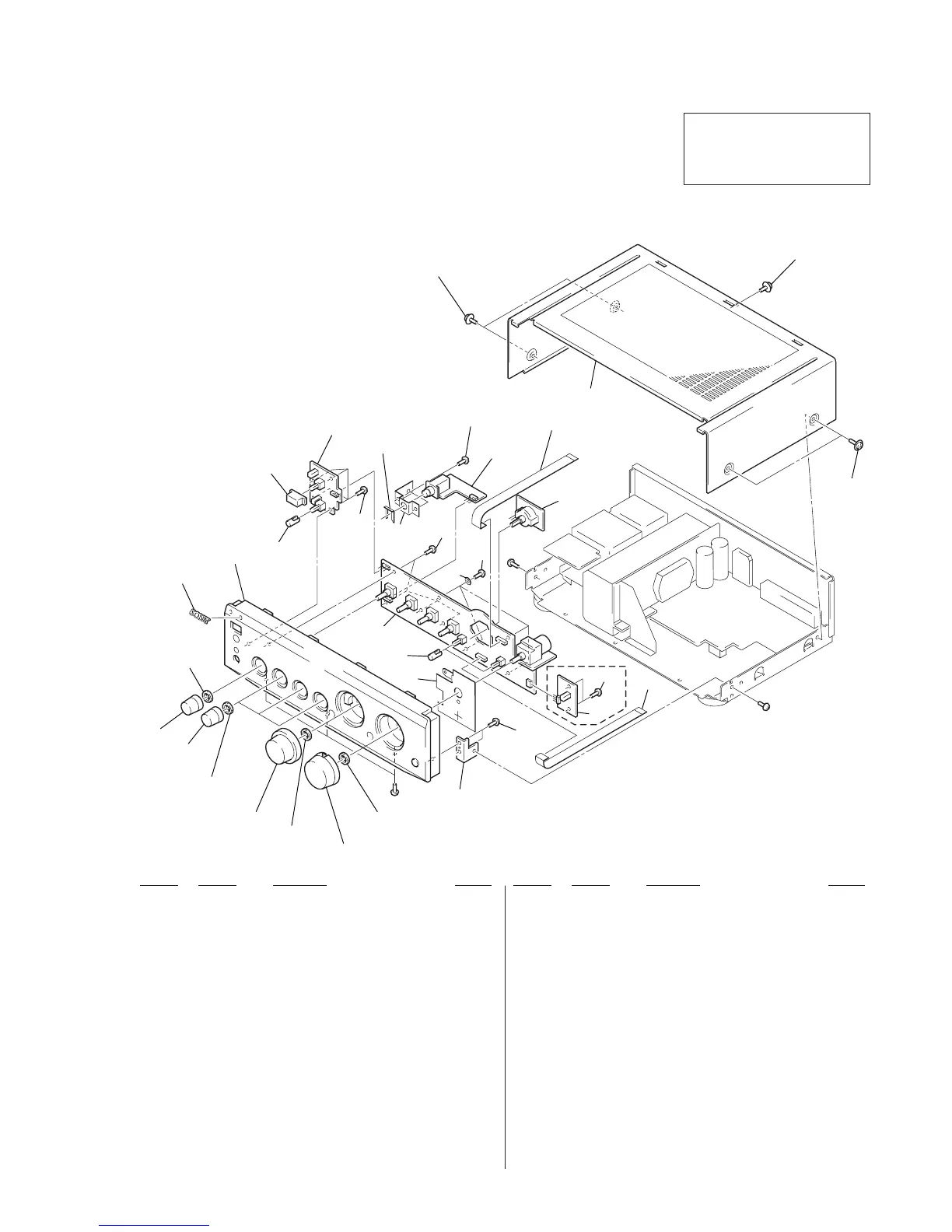

(1) FRONT PANEL SECTION
5
6
7
8
9
10
10
11
14
13
12
13
13
10
19
10
10
10
15
16
17
18
1
2
3
4
#1
#1
#1
supplied
with JK501
not
supplied
supplied
with S205
supplied with
RV201, 203, 204
supplied
with S801
supplied
with RV202
not
supplied
FE520R
20
20
1 X-4950-306-1 KNOB ASSY, VOLUME (BLACK)
1 X-4950-307-1 KNOB ASSY, VOLUME (SILVER)
2 4-211-947-01 KNOB (FUNCTION) (BLACK)
2 4-211-947-11 KNOB (FUNCTION) (SILVER)
3 4-211-945-01 KNOB (BALANCE) (BLACK)
3 4-211-945-11 KNOB (BALANCE) (SILVER)
4 4-211-950-01 KNOB (SPEAKER) (BLACK)
4 4-211-950-11 KNOB (SPEAKER) (SILVER)
5 4-996-698-41 EMBLEM, SONY
6 X-4950-304-1 PANEL ASSY, FRONT (FE520R: BLACK)
6 X-4950-305-1 PANEL ASSY, FRONT (FE520R: SILVER)
6 X-4950-308-1 PANEL ASSY, FRONT (FE320R)
7 4-211-946-01 BUTTON (LINK) (BLACK)
7 4-211-946-11 BUTTON (LINK) (SILVER)
8 4-211-949-01 BUTTON, POWER (BLACK)
8 4-211-949-11 BUTTON, POWER (SILVER)
* 9 1-670-966-11 POWER SW BOARD
10 4-951-620-01 SCREW (2.6X8), +BVTP
* 11 1-670-967-11 HP BOARD
* 12 4-211-940-21 CASE (BLACK)
* 12 4-211-940-31 CASE (SILVER)
13 3-704-366-01 SCREW (CASE) (M3X8) (BLACK)
13 3-704-366-71 SCREW (CASE) (M3X8) (SILVER)
* 14 1-670-968-11 FUNCTION SW BOARD
15 4-211-951-01 WASHER (FIBER DIA. 8)
* 16 A-4417-046-A CONTROL BOARD, COMPLETE (FE520R)
* 16 A-4417-056-A CONTROL BOARD, COMPLETE (FE320R)
17 4-211-948-01 BUTTON (LOUDNESS) (BLACK)
17 4-211-948-11 BUTTON (LOUDNESS) (SILVER)
* 18 4-211-953-01 SHIELD (VOLUME)
* 19 1-670-969-11 TAPE MON BOARD (FE520R)
* 20 1-769-983-11 WIRE (FLAT TYPE) (13 CORE)
