Sony TA-FE320R - Disassembly Procedures; Front Panel Section Disassembly; Main Board Disassembly

– 4 –

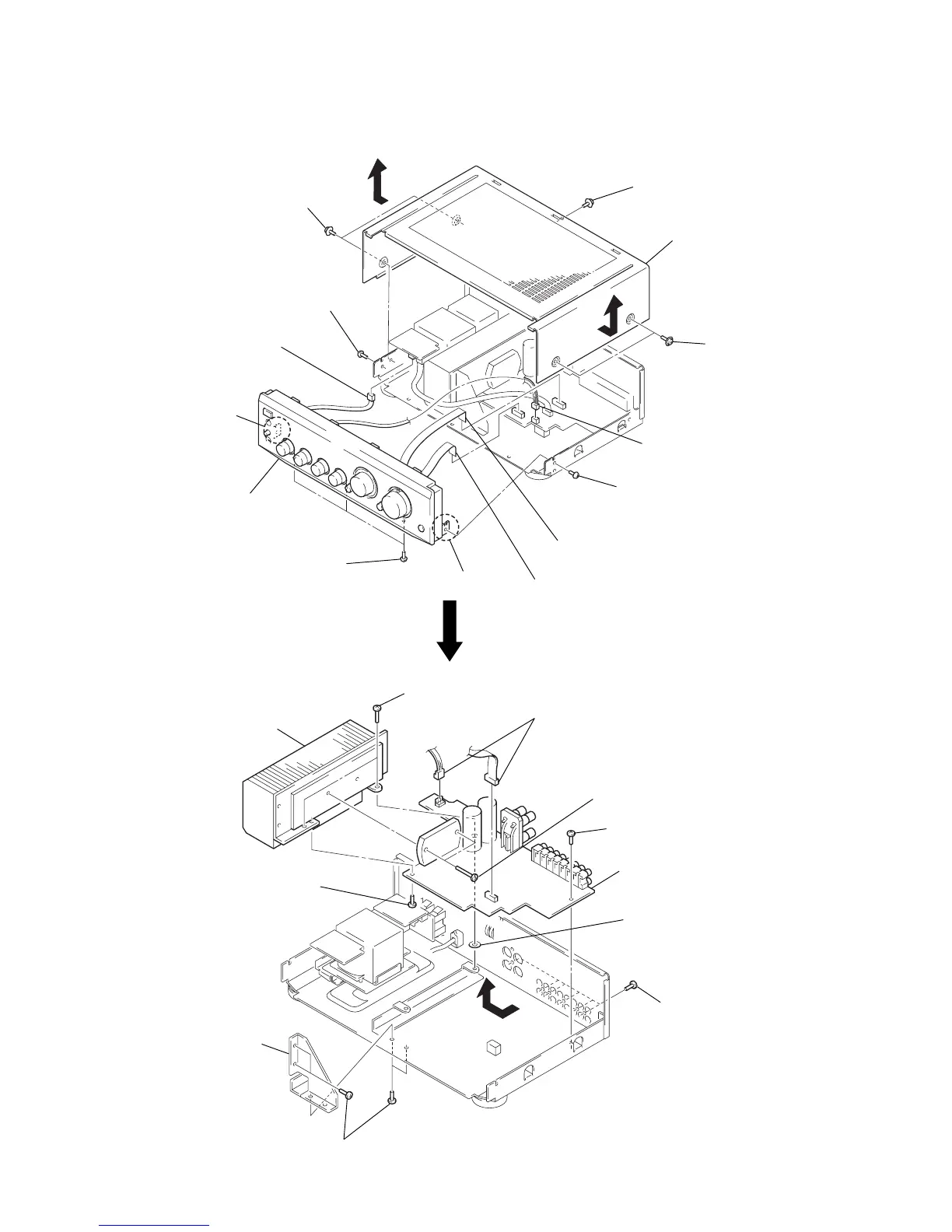

FRONT PANEL SECTION
MAIN BOARD
Note: Follow the disassembly procedure in the numerical order given.
SECTION 2
DISASSEMBLY
1 screw
(CASE)
1 two screw
s
(CASE)
5 screw
(BVTP3
× 8)
5 three screws
(BVTP3
× 8)
5 screw
(BVTP3
× 8)
4 connector
(CN812) (FE520R)
4 connector
(CN902)
6 claw
6 claw
7 front panel section
3 wire (flat type) (13 core)
(CN815)
3 wire (flat type) (13 core)
(CN811)
1 two screws
(CASE)
2 case
4 six screws
(BVTP3
× 8)
4 screw
(BVTP3
× 8)
9 screw
(BVTP3
× 10)
1 two connectors
(CN951, 952)
3 bracket
(HEAT SINK)
7 washer
(FIBER DIA.10)
5 two screws
(BVTP3
× 10)
2 four screws
(BVTP3
× 8)
!¡ MAIN board
8 two screws
(BVTP3
× 16)
0 heat sink
6
