Sony TA-FE320R - Main Section Schematic Diagram

TA-FE320R/FE520R
– 9 –
– 10 –

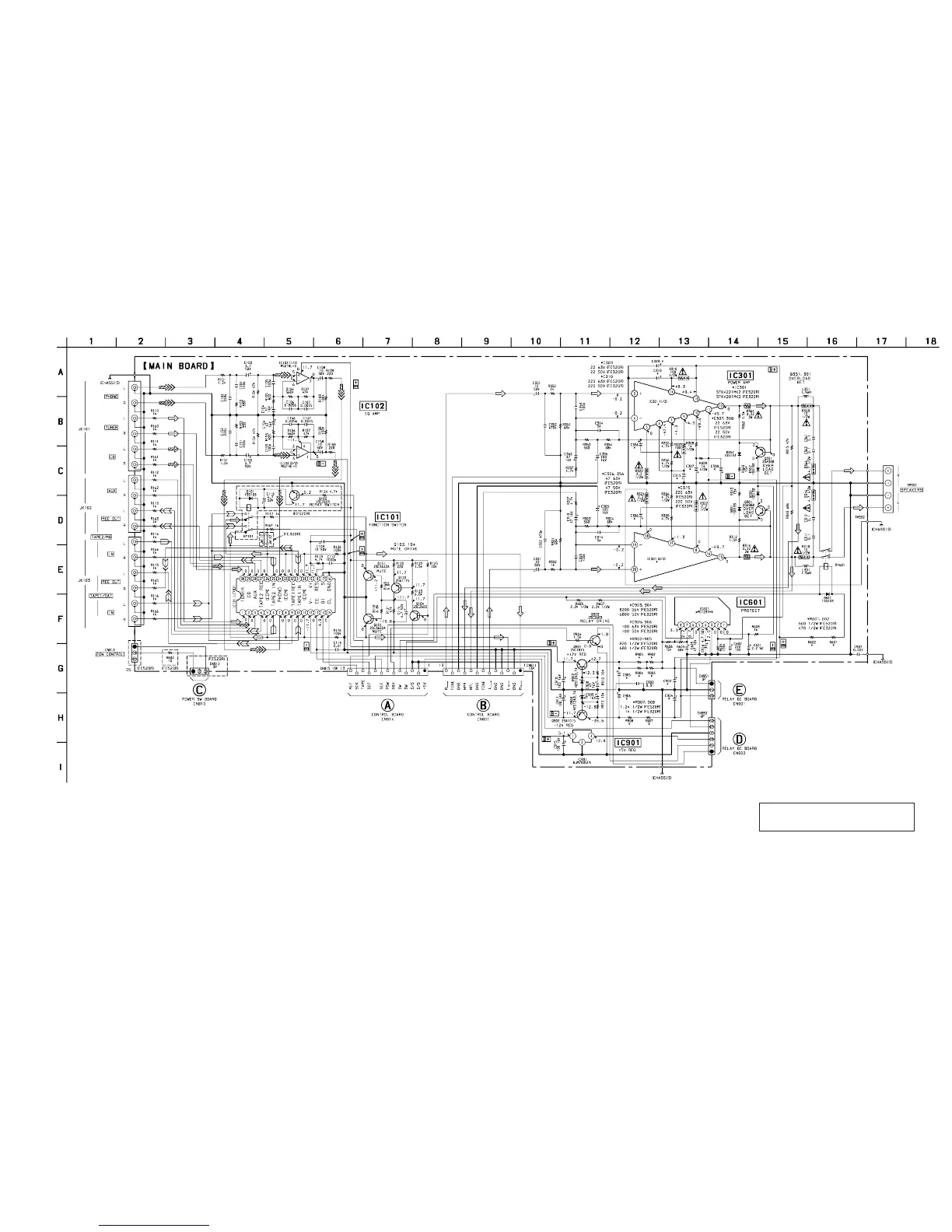

3-3. SCHEMATIC DIAGRAM – MAIN Section – • See page 17 for IC Block Diagrams.
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
(Page 13)
(Page 13)
(Page 14)
(Page 16)
(Page 16)
