Sony TC-252 D - Technical Specifications

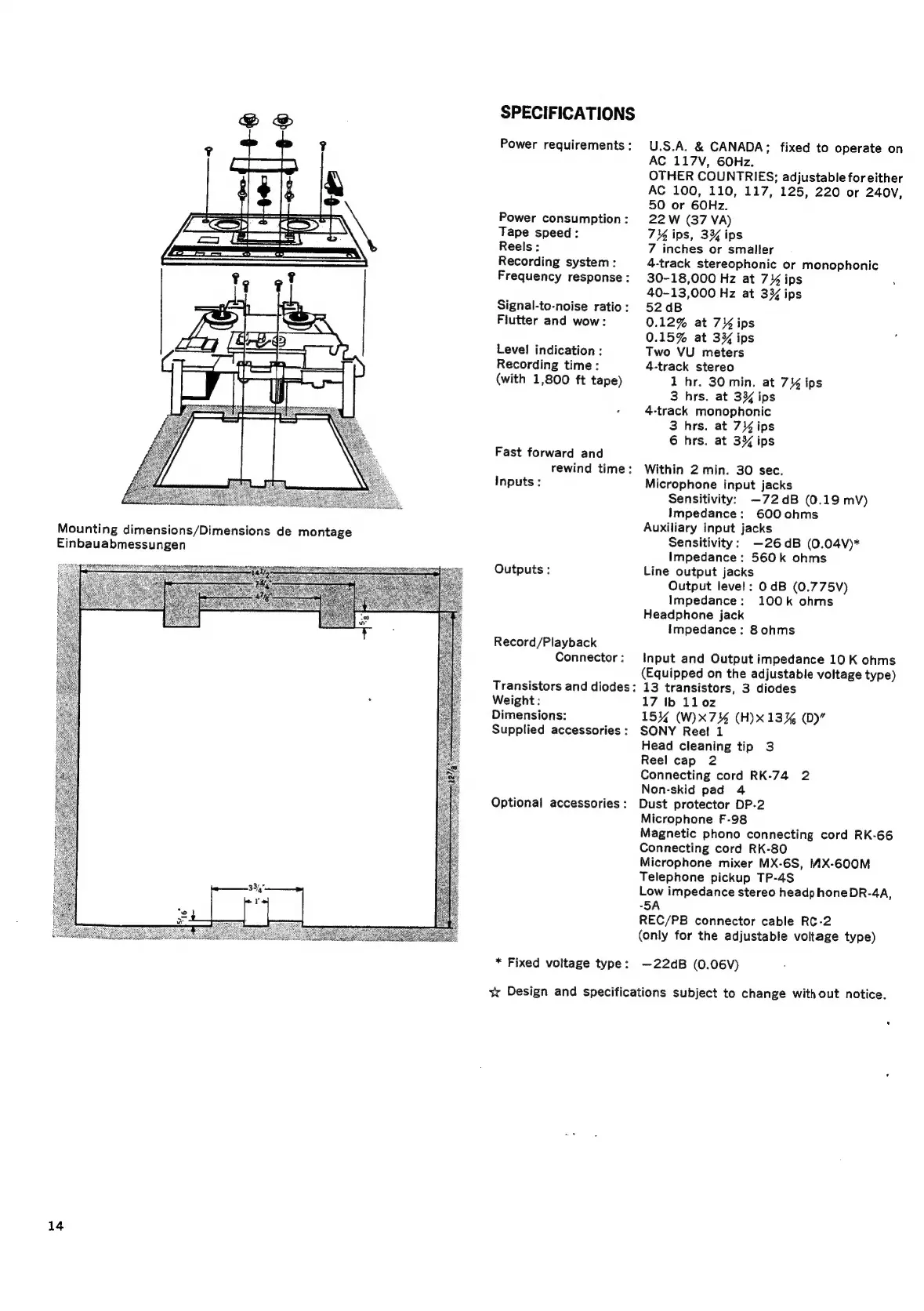

Mounting
dimensions/Dimensions
de
montage
Einbauabmessungen
14
SPECIFICATIONS
Power requirements :
Power consumption:
Tape speed:
Reels:
Recording system:
Frequency response:
Signal-to-noise ratio:
Flutter and wow:
Level indication :
Recording time:
(with 1,800 ft tape)
Fast forward and
rewind time:
Inputs :
Outputs :
Record/Playback
Connector :
Transistors and diodes:
Weight:
Dimensions:
Supplied accessories :
Optional accessories :
* Fixed voltage type:
U.S.A. & CANADA; fixed to operate on
AC 117V, 60Hz.
OTHER COUNTRIES; adjustable for either
AC 100, 110, 117, 125, 220 or 240v,
50 or 60Hz.
22 W (37 VA)
7% ips, 3% ips
7 inches or smaller
4-track stereophonic or monophonic
30-18,000 Hz at 7% ips
40-13,000 Hz at 3% ips
52 dB
0.12% at 7% ips
0.15% at 3% ips
Two VU meters
4-track stereo
1 hr. 30 min. at 7 ips
3 hrs. at 3% ips
4-track monophonic
3 hrs. at 7% ips
6 hrs. at 3% ips
Within 2 min. 30 sec.
Microphone input jacks
Sensitivity; —72dB (0.19 mV)
Impedance: 600 ohms
Auxiliary input jacks
Sensitivity: —26dB (0.04V)*
Impedance: 560k ohms
Line output jacks
Output level: 0 dB (0.775v)
Impedance: 100k ohms
Headphone jack
Impedance: 8 ohms
Input and Output impedance 10 K ohms
(Equipped on the adjustable voltage type)
13 transistors, 3 diodes
17 ib 110z
15% (W)x7% (H)x13% (D)”
SONY Reel 1
Head cleaning tip 3
Reel cap 2
Connecting cord RK-74 2
Non-skid pad 4
Dust protector DP-2
Microphone F-98
Magnetic phono connecting cord RK-66
Connecting cord RK-80
Microphone mixer MX-6S, MX-600M
Telephone pickup TP-4S
Low impedance stereo headphone DR-4A,
-5A
REC/PB connector cable RC-2
(only for the adjustable voltage type)
—22dB (0.06V)
xx
Design
and
specifications
subject
to
change
without
notice.
