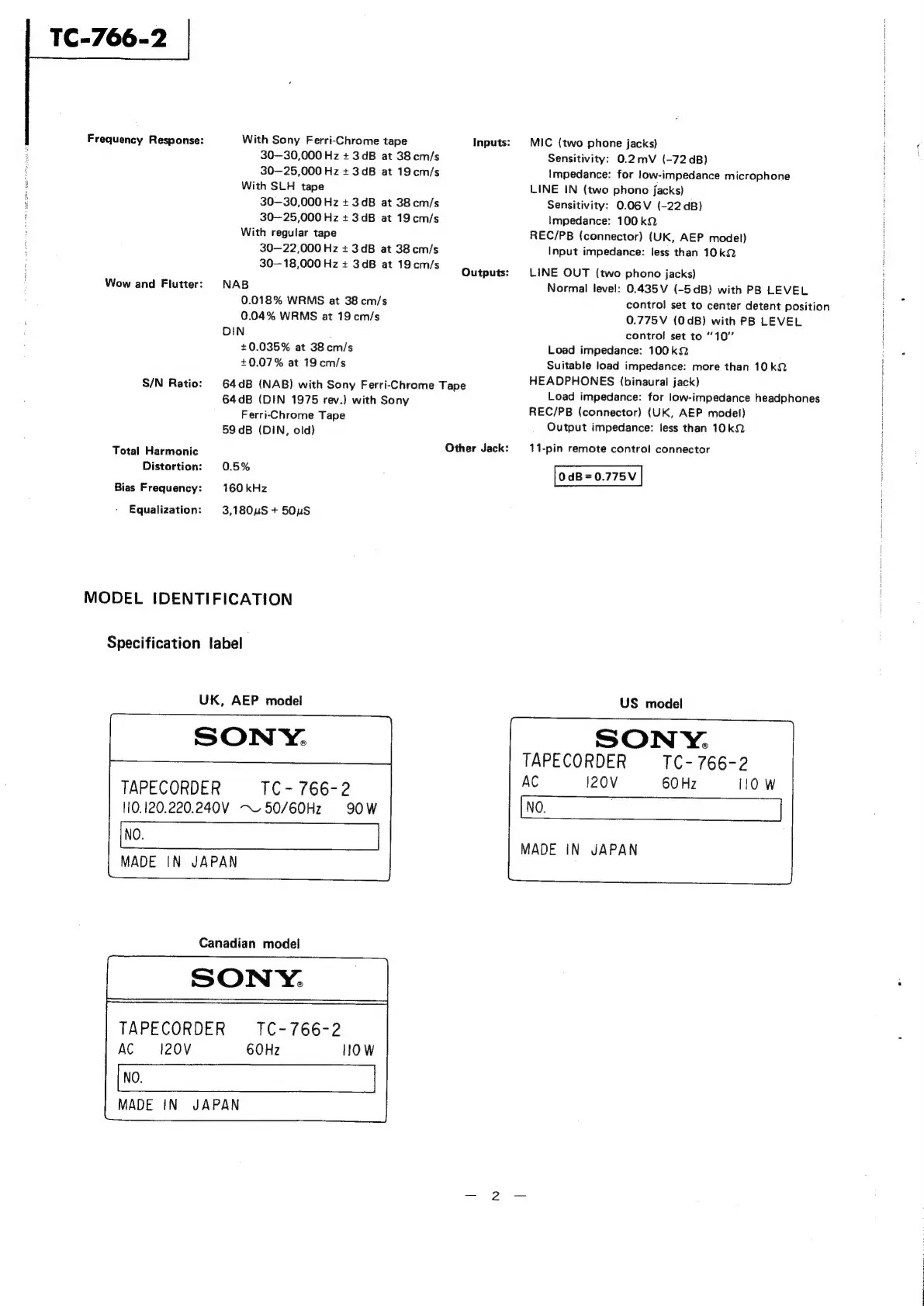

Sony TC-766-2 - Model Identification

Frequency Response:
TC-766-2
30-—-30,000 Hz + 3dB at 38 cm/s
30—25,000 Hz + 3dB at 19cm/s
With SLH tape
30—30,000 Hz + 3dB at 38 cm/s
30—25,000 Hz + 3dB at 19cm/s
With regular tape
30—22,000 Hz + 3dB at 38cm/s
30—18,000 Hz + 3dB at 19cm/s
Wow and Flutter: NAB
0.018% WRMS at 38 cm/s
0.04% WRMS at 19 cm/s
DIN ;
+0.035% at 38 cm/s
+0.07% at 19 cm/s
64dB (NAB) with Sony Ferri-Chrome Tape
64dB (DIN 1975 rev.) with Sony
Ferri-Chrome Tape
59 dB (DIN, old)
S/N Ratio:
Total Harmonic
Distortion: 0.5%
160 kHz
3,180uS + 50uS
Bias Frequency:
Equalization:
MODEL IDENTIFICATION
Specification label
UK, AEP model
TAPECORDER
TC=16672
110.120.220.240V ~~ 50/60Hz 90W
MADE IN JAPAN
Canadian model
TAPECORDER JTC-766-2
AC 120V 60Hz 10 W
MADE IN JAPAN
With Sony Ferri-Chrome tape Inputs:
Outputs:
Other Jack:
MIC (two phone jacks)
Sensitivity: 0.2 mV (-72 dB)
Impedance: for low-impedance microphone
LINE IN (two phono jacks)
Sensitivity: 0.06V (-22 dB)
Impedance: 100 kQ
REC/PB (connector) (UK, AEP model)
Input impedance: less than 10kQ
LINE OUT (two phono jacks)
Normal level: 0.435V (-5 dB) with PB LEVEL
control set to center detent position
0.775V (OdB) with PB LEVEL
control set to 10”
Load impedance: 100k
Suitable load impedance: more than 10kQ
HEADPHONES (binaural jack)
Load impedance: for low-impedance headphones
REC/PB (connector) (UK, AEP model)
Output impedance: less than 10kQ
11-pin remote control connector
0dB=0.775V
US model
SONY.
TAPECORDER
TC-
766-2
AC
1200.
6OHz~—SL10.W
MADE IN JAPAN
