‘TC-FX205/FX220

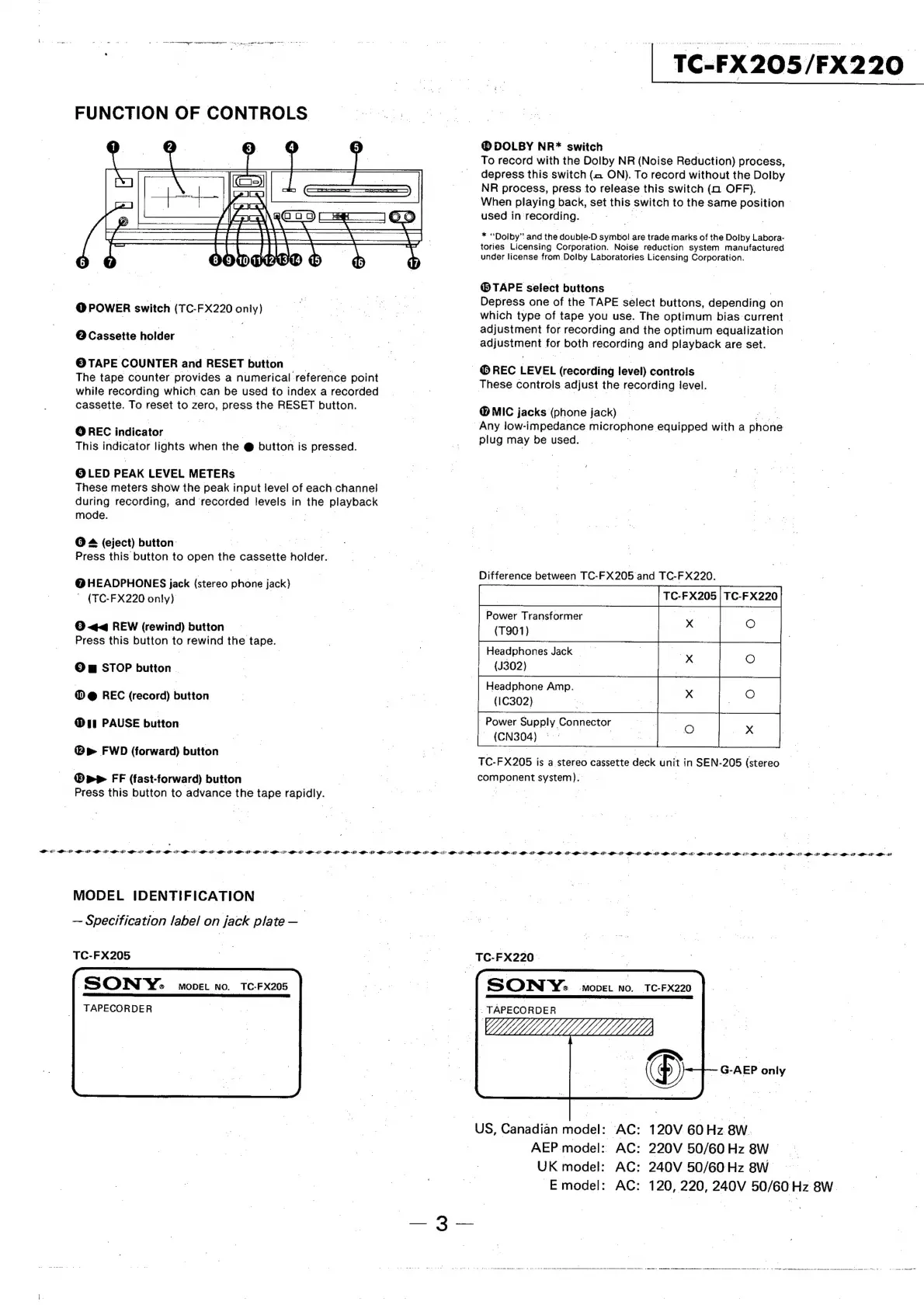

FUNCTION OF CONTROLS
@ DOLBY NR* switch
To record with the Dolby NR (Noise Reduction) process,
depress this switch (a ON). To record without the Dolby
NR process, press to release this switch (a OFF).
When playing back, set this switch to the same position |
used in recording. |
* “Doiby” and the double-D symbol are trade marks of the Dolby Labora-
tories Licensing Corporation. Noise reduction system manufactured
under license Hem: Dolby Laboratories Licensing Corporation.
® TAPE select t buttons
Depress one of the TAPE select buttons, depending on
which type of tape you use. The optimum bias current .
adjustment for recording and the optimum equalization
adjustment for both recording and playback are set.
@ POWER switch (TC-FX220 only)
O Cassette holder
OTAPE COUNTER and RESET button | | ~ @REC LEVEL (recording level) controls
The tape counter provides a numerical reference point } |
while recording which can be used to index a recorded
These controls adjust the recording level.
cassette. To reset to zero, press the RESET button. - ® MIC jacks (phone jack)
Any low-impedance microphone equipped with a phone
@
REC
indicator
plug
may
be
used.
This indicator lights when the e button is pressed.
@LED PEAK LEVEL METERs
These meters show the peak input Jevel of each channel!
during recording, and recorded levels in the playback
mode.
O 4 (eject) button | as
Press this button to open the cassette holder.
Difference between TC- FX205 and TC-FX220.
ae
Power Transformer
(T901 ) .
Headphones Jack |
(J302)
Headphone Amp.
(1C302)
- Power Supply Connector
. (CN304) |
@ HEADPHONES jack (stereo eikane Jgek
(TC-FX220 only)
© <4 REW (rewind) button
Press this button to rewind the tape.
© STOP button
© @ REC (record) button
®t PAUSE button
© p FWD (forward) button
. TC- FX205 is a stereo eaasette deen unit in SEN-205 (stereo
© pp FF (fast-forward) button i re | rompenent system)”
Press this button to advance the tape rapidly. eye os :
SE gL ALTE RD AN NF ALU Atle RR RE RR LE ALT AD LN a A ll TD Re TT etl QT ng CT 1) a git’ A lll NA 2 a DD 0 1 ~~ Ll ll Qt atts > 1 ag ET ag TT ag A ag at
MODEL IDENTIFICATION
— Specifica tion label on jack plate —
TC-FX205 a TEE X2200
SONY: mover NO. TC-FX205 a SONY: MODEL No. TC-FX220
TAPECORDER eas - - J. TAPECORDER
| GMM 00000000
~ G-AEP only
US, Canadian model: AC: 120V 60Hz 8W.
AEP model: AC: 220V 50/60 Hz 8W —
UK model: AC: 240V 50/60 Hz 8W
E model: AC: 120, 220, 240V 50/60 Hz 8W
