Sony TCS-100DV - 3 Disassembly

– 6 –

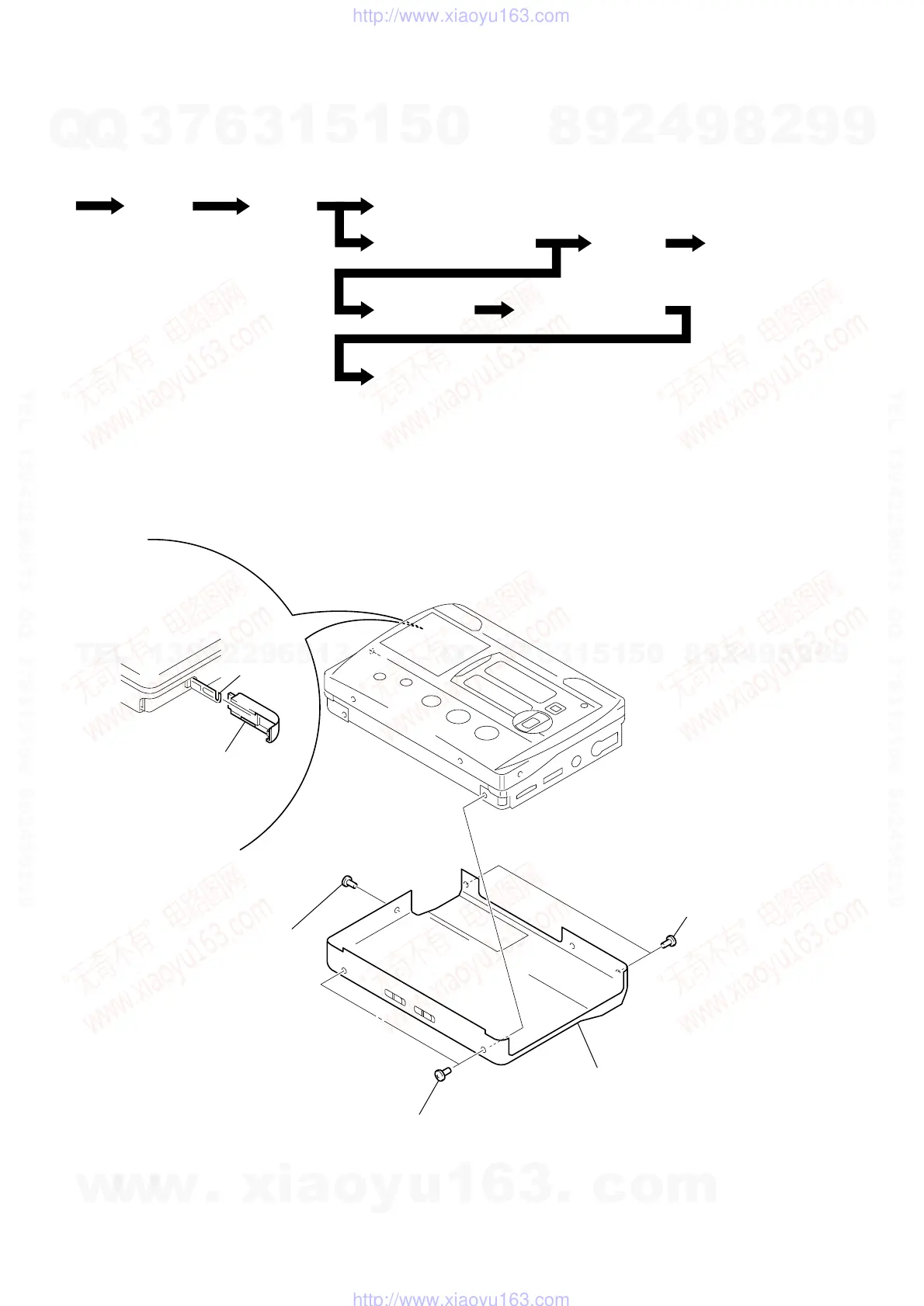

CASE ASSY
Note: Follow the disassembly procedure in the numerical order given.
SECTION 3
DISASSEMBLY
• This set can be disassembled in the order shown below.
Set
Case Assy
Holder (F) Assy
Pinch Lever (N)/(R) Assy
MAGNETIC HEAD (H901)
MAIN board
belt, motor (M601)
Ornament Sub Assy, Reel
Lid Sub
Assy,
Cassette
Lid Assy, Cassette
1 Open the “lid, battery case”.
3 lid, battery case
2 claw
4 screw
(M1.4 × 2.5)
4 two screws
(M1.4 × 2.5)
4 two screws
(M1.4 × 2.5
)
5 case assy
