– 30 –

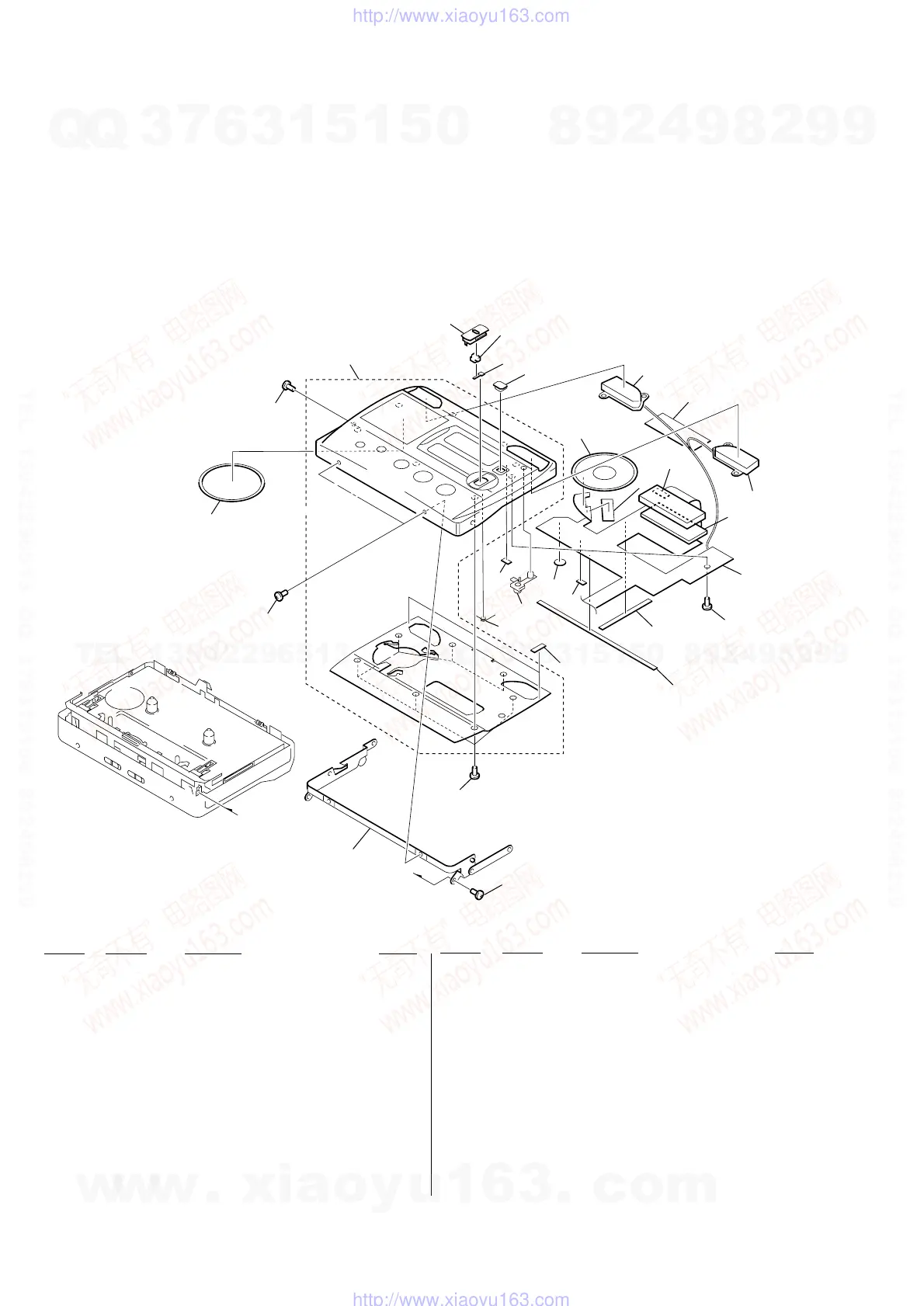

(1) COVER SECTION
SECTION 7
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories and packing materials are given
in the last of the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
SP301
not
supplied
1
17
2
25
3
5
6
7
8
24
9
16
20
21
19
23
11
12
14
14
18
15
13
10
4
2
1 X-3376-279-1 BRACKET (CASSETTE) ASSY
2 3-704-197-11 SCREW (M1.4X2.0), LOCKING
3 X-3379-175-1 LID ASSY, CASSETTE
4 3-044-961-01 KNOB (REC)
5 3-044-962-01 BUTTON (REC)
6 3-044-963-01 SPRING (REC BUTTON), LEAF
7 3-044-960-01 KNOB (REC-T)
8 3-044-977-01 SPRING (REC), RETURN
9 3-044-981-01 BUTTON (COUNTER RESET)
10 A-3052-185-A MICROPHONE SUB ASSY (L)
11 1-418-745-11 KEY BOARD UNIT (INCLUDING D1,IC1, S1-10)
12 3-044-979-01 CUSHION (LCD)
13 A-3052-184-A MICROPHONE SUB ASSY (R)
14 3-375-114-41 SCREW
15 4-017-441-01 CUSHION (B)
16 3-047-911-01 CUSHION (CASSETTE LID)
17 3-365-630-41 SCREW (M1.4)
18 3-831-441-99 CUSHION
19 3-831-441-99 CUSHION
20 3-047-820-01 SHEET (A)
21 3-047-821-01 SHEET (B)
23 3-016-413-01 SHEET (SW)
24 3-328-483-11 SHEET
25 3-047-833-01 CUSHION (SP)
SP301 1-529-606-11 SPEAKER (3.6 cm)
