– 31 –
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

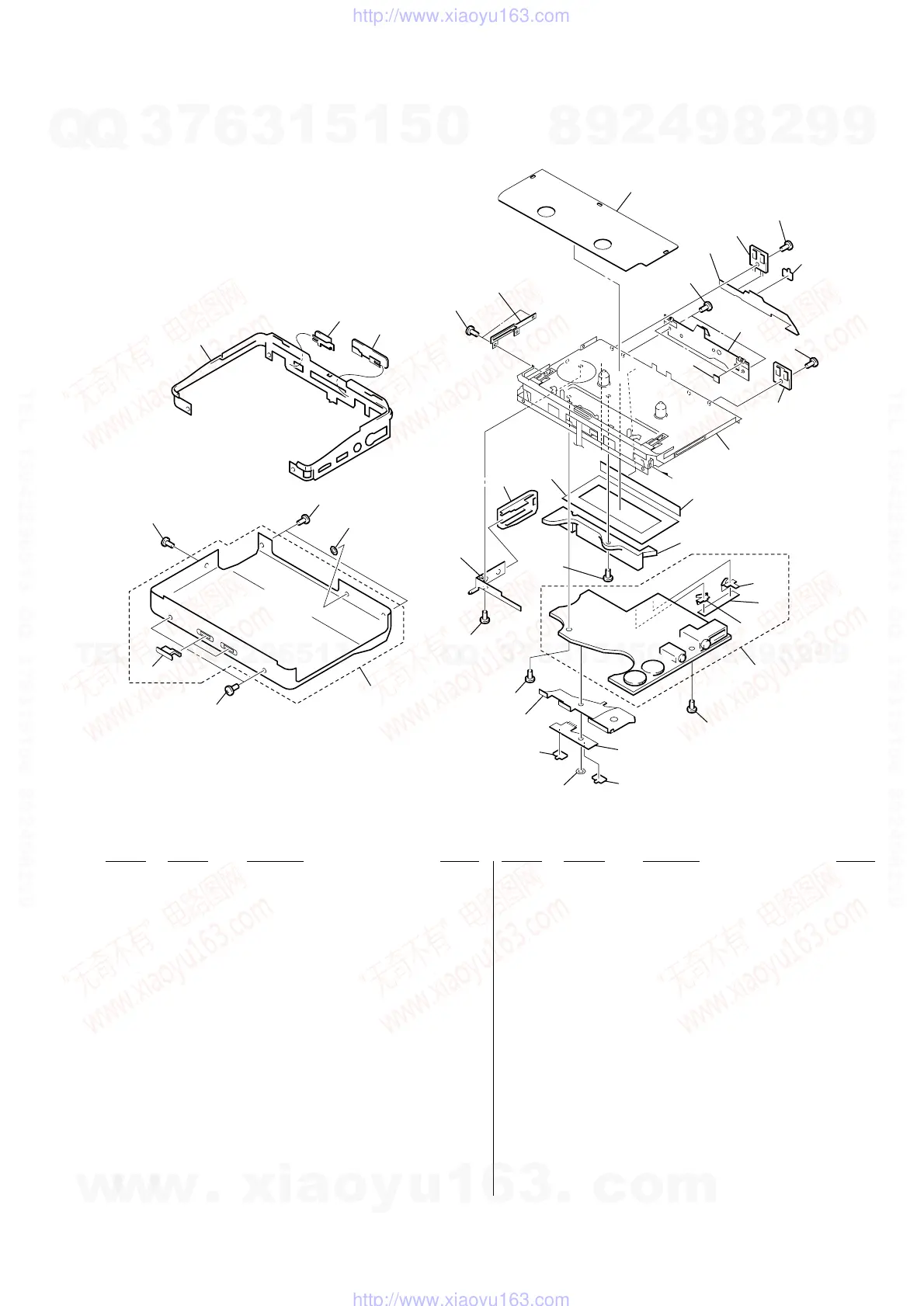

(2) MAIN SECTION
MT-TCS100-162
S703
101
102
102
102
117
119
119
116
109
108
129
110
113
125
126
112
111
106
107
107
127
105
104
128
119
120
118
114
115
103
121
S702
S302
S301
S70
122
123
124
101 X-3378-651-1 CASE ASSY
102 3-704-197-21 SCREW (M1.4X2.5), LOCKING
103 3-044-976-01 KNOB (VM)
104 1-677-406-11 VOR FLEXIBLE BOARD
105 3-044-992-01 BRACKET (SW)
106 3-375-114-41 SCREW
107 3-345-648-71 SCREW (M1.4), TOOTHED LOCK
108 A-3021-321-A MAIN BOARD, COMPLETE
109 3-919-622-01 TERMINAL BOARD
110 3-919-621-01 TERMINAL BOARD
111 X-3378-644-1 TERMINAL BOARD ASSY, BATTERY
112 3-044-993-01 GUIDE, BATTERY
113 3-044-978-01 LID, BATTERY CASE
114 3-366-892-11 SCREW (M1.4X1.4)
115 3-029-217-01 LEVER (B), LOCK
116 3-328-483-11 SHEET
117 3-044-952-11 COVER, MD
118 1-677-407-11 ATS FLEXIBLE BOARD
119 3-366-892-01 SCREW (M1.4)
120 X-3378-645-1 BRACKET (A) ASSY
121 3-010-287-01 COLLAR (DC IN)
122 3-044-989-11 ORNAMENT, REEL
123 3-044-991-01 KNOB (HOLD)
124 3-044-990-01 KNOB (OPEN)
125 3-044-953-01 SHEET, INSULATING (M)
126 3-044-954-01 SHEET, INSULATING (MS)
127 3-704-197-91 SCREW (M 1.4 X 1.8), LOCKING
128 3-029-276-01 WASHER (STOPPER R)
129 3-048-215-01 CUSHION (N)
S301 1-572-922-11 SWITCH, SLIDE (VOR)
S302 1-572-922-11 SWITCH, SLIDE (MIC SENS)
S702 1-692-101-11 SWITCH, LEAF
(REC PROTECT DETECT (REV), TAPE DETECT)
S703 1-692-100-11 SWITCH, LEAF
(REC PROTECT DETECT (FWD), ATS)
S704 1-572-922-11 SWITCH, SLIDE (HOLD)
