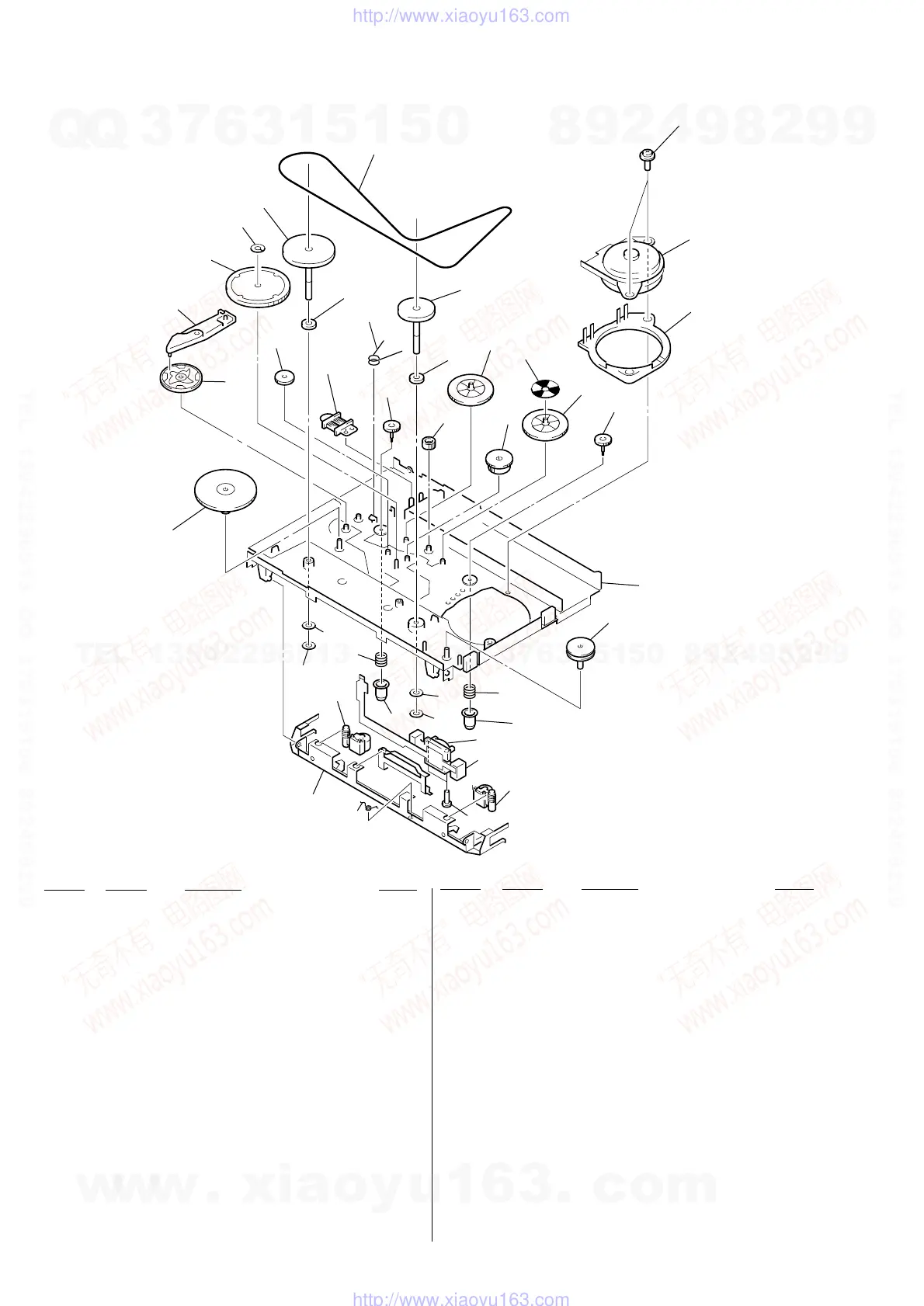

(3) MECHANISM DECK SECTION
(MT-TCS100-162)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 X-3376-550-1 HOLDER (F) ASSY
52 X-3379-016-1 PINCH LEVER (RT) ASSY
53 3-029-271-01 SPRING (HD)
54 X-3377-227-1 LEVER (N) ASSY, PINCH
55 3-029-276-01 WASHER (STOPPER R)
56 3-029-289-01 WASHER
57 3-029-275-01 WASHER (STOPPER N)
58 3-029-278-01 WASHER
59 X-3376-813-1 CLUTCH ASSY (F)
60 3-932-724-21 WASHER
61 3-029-287-01 SPRING (TG), TORSION
62 3-386-694-01 WASHER
63 X-3378-628-1 WHEEL (N) ASSY, FLY
64 3-032-576-01 BELT
65 X-3378-629-1 WHEEL (R2) ASSY, FLY
66 3-007-428-01 WASHER (R)
67 3-029-765-01 SCREW (M1.4), TOOTHED LOCK
68 3-044-748-01 RETAINER (T), MOTOR
69 3-007-433-01 SHEET (N), REFLECTION
70 X-3378-438-1 CHASSIS (T) ASSY
71 3-010-274-02 TABLE, REEL
72 3-010-954-01 SPRING (BT), COMPRESSION
73 3-046-863-01 GEAR (Y)
74 3-029-285-01 GEAR, CAM
75 3-029-284-01 LEVER, TRIGGER
76 3-029-281-01 GEAR, IDLER (B)
77 3-010-273-02 GEAR (REEL)
78 3-029-273-01 GEAR (FR)
79 3-029-283-01 GEAR, IDLER (A)
80 3-029-286-01 GEAR (NR)
81 3-029-288-01 PULLEY, REVERSE
82 3-032-575-01 LEVER, HEAD
84 3-042-480-01 SCREW (M1.4)
H901 1-500-643-11 HEAD, MAGNETIC (REC/PB/ERASE)
M601 1-763-458-11 MOTOR, DC (WITH PULLEY) (CAPSTAN/REEL)
PM701 1-454-674-31 SOLENOID, PLUNGER
