Sony TRINITRON CPD-G400 - Chassis Exploded View

CPD-G400
• Items marked " * " are not stocked since
they are seldom required for routine
service. Some delay should be anticipated
when ordering these items.
• Items with no part number and no
description are not stocked because they
are seldom required for routine service.
• The construction parts of an assembled
part are indicated with a collation number
in the remark column.

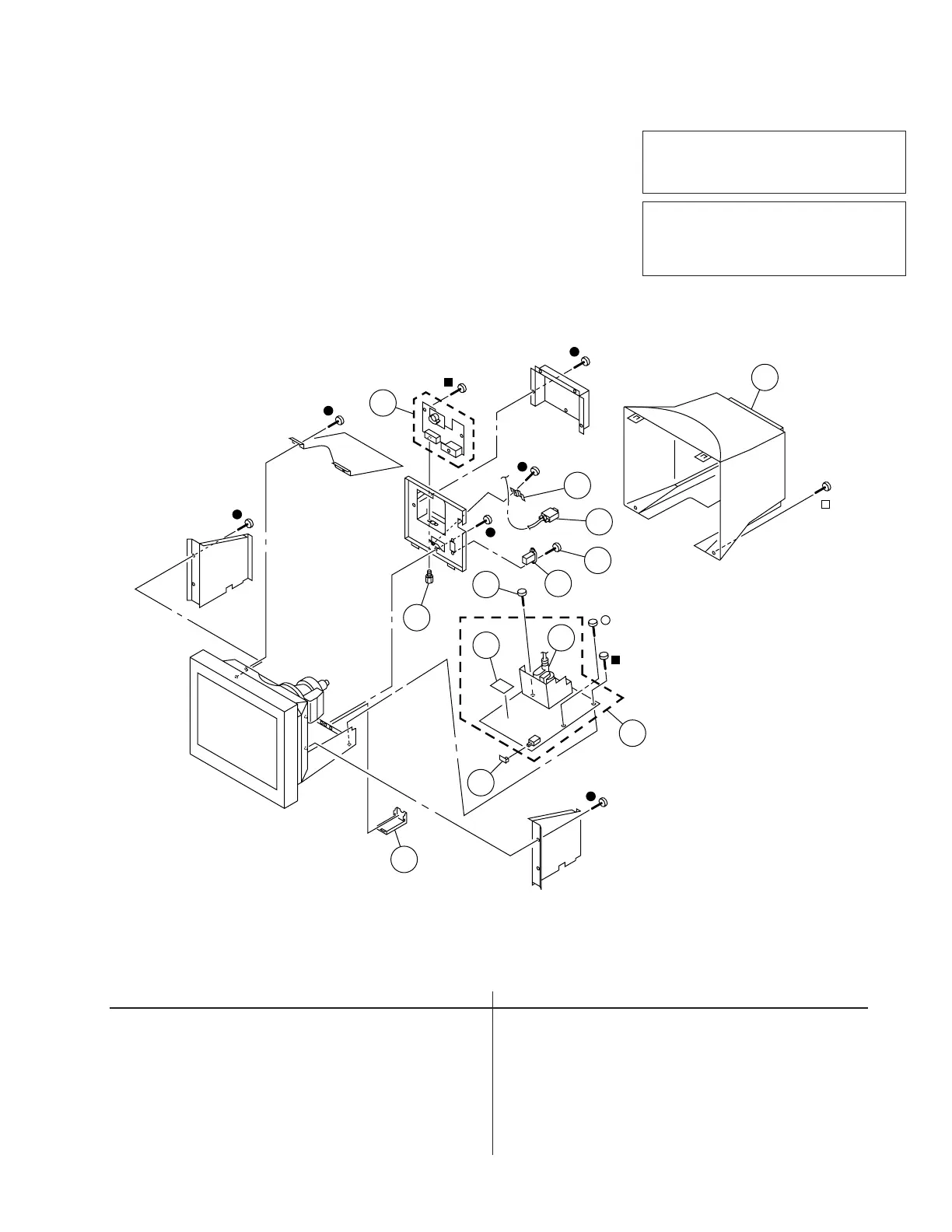

6-1. CHASSIS
z 7-685-881-09 +BVTT 4X8
x 7-685-872-09 +BVTT 3X8
a 7-685-646-79 +BVTP 3X8
s 7-685-663-71 +BVTP 4X16
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
6-1
SECTION 6
EXPLODED VIEWS
The components identified ! marked are
critical for safety.
Replace only with the part number specified.
Les composants identifiés par la marque !
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
10
11
1
12
2
13
3
4
5
6
7
8
9
1 4-071-715-12 COVER, CABLE
2 * 4-394-972-21 CAP, POWER
3 * A-1346-879-B D BOARD, COMPLETE [U/C] 4, 5
3 * A-1346-880-B D BOARD, COMPLETE [AEP] 4, 5
4 * A-1390-954-A N BOARD, COMPLETE
5 0 X-4560-174-1 TRANSFORMER ASSY, FLYBACK
(NX4700//J1E4)
6 4-062-115-01 SCREW +P 3.5X20 TYPE2
7 4-070-122-01 SCREW (HD15)
8 0 1-251-382-31 INLET, AC 3P (WITH NOISE FILTER)
9 4-052-345-01 SCREW, (3X8) (+K), TAPPING
10 1-791-490-11 CABLE ASSY
(15P D-SUB CONNECTOR)
11 * 4-045-131-01 STOPPER, CABLE
12 * A-1298-985-A A BOARD, COMPLETE
13 4-071-714-11 CABINET
