Sony TRINITRON CPD-G400 - Picture Tube Exploded View; Exploded Views

CPD-G400

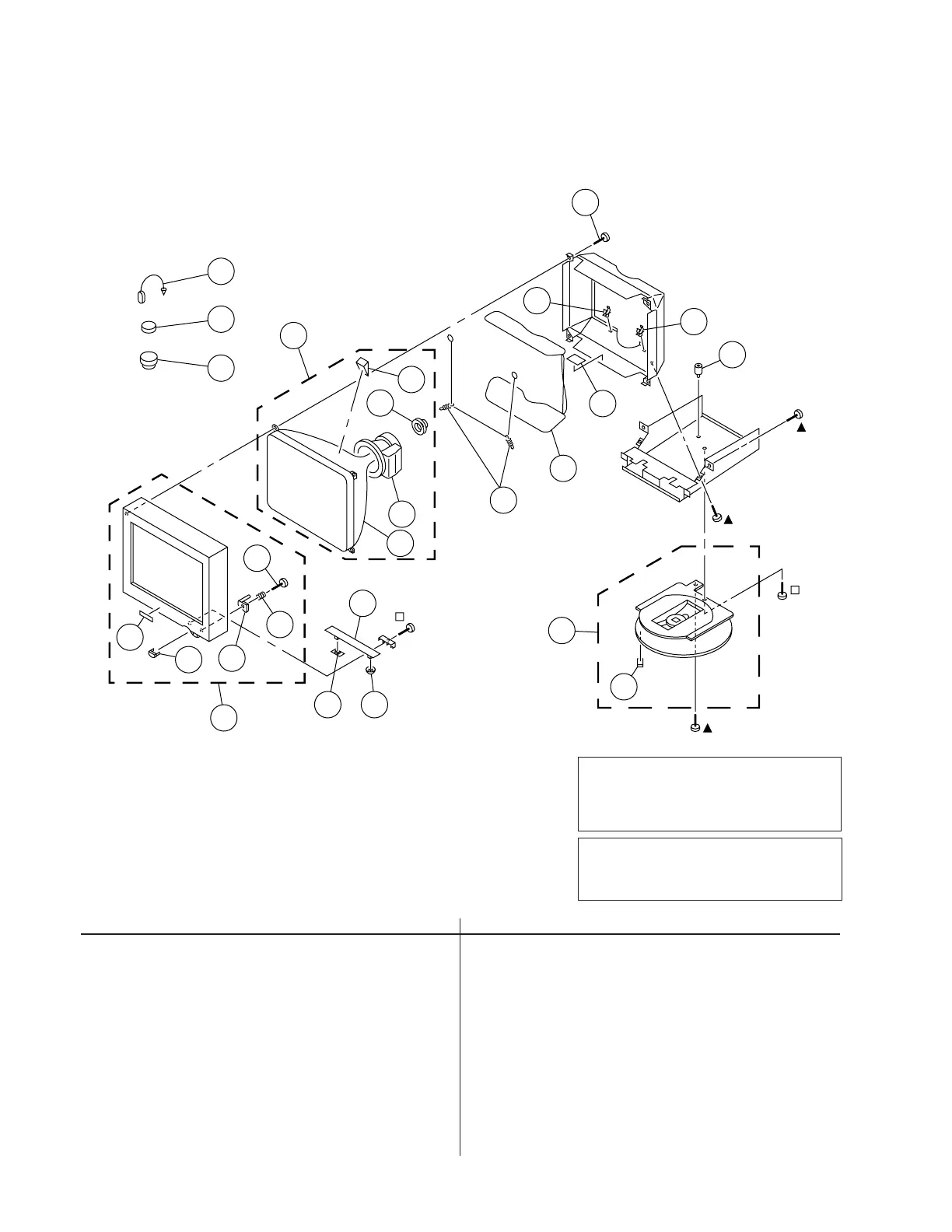

6-2. PICTURE TUBE
z 7-685-881-09 +BVTT 4X8
s 7-685-663-71 +BVTP 4X16
v 7-685-882-09 +BVTT 4X10
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
6-2
The components identified ! marked are
critical for safety.
Replace only with the part number specified.
Les composants identifiés par la marque !
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
60
73
51
61
74
52
62
75
53
56
63
54
64
55
65
70
66
71
67
58
57
72
68
59
69
76
51 X-4037-001-2 BEZEL ASSY 52-56
52 4-070-660-01 BUTTON, POWER
53 4-071-713-01 BAR, EXTENSION
54 4-070-001-02 SPRING, COMPRESSION
55 4-046-797-01 SCREW (3X12), (+) BV TAP
56 4-044-932-11 EMBLEM (NO, 8), SONY
57 * 4-070-217-01 CUSHION
58 * 4-060-359-01 HOLDER, PRINTED CIRCUIT BOARD
59 0 8-736-407-61 ITC ASSY (19TKC-R1) [AEP, U/C] 60-62
59 0 8-736-408-61 ITC ASSY (19TKC-RS1) [BRZ] 60-62
60 0 8-451-284-11 DEFLECTION YOKE (Y19TKK-V)
61 0 1-452-912-61 NECK ASSEMBLY (NA-2914)
62 2-162-100-21 SPACER, DEFLECTION YOKE
63 * 4-047-316-01 SPRING, EXTENSION
64 0 1-419-285-11 COIL, DEGAUSSING
65 4-365-808-01 SCREW (5), TAPPING
66 4-071-175-01 HOLDER, DEGAUSSING COIL
67 4-041-021-02 HOLDER, DEGAUSSING COIL
68 X-4036-988-1 STAND ASSY 69
69 * 4-061-996-11 CUSHION
70 * A-1372-689-A H BOARD, COMPLETE
71 4-071-112-01 INPUT SELECTION
72 4-070-665-02 BUTTON, MENU
73 4-308-870-00 CLIP, LEAD WIRE
74 1-452-032-00 MAGNET, DISC; 10mm φ
75 1-452-094-00 MAGNET, ROTATABLE DISC; 15mm φ
76 8-736-407-05 PICTURE TUBE [AEP, U/C]
76 8-736-408-05 PICTURE TUBE [BRZ]
