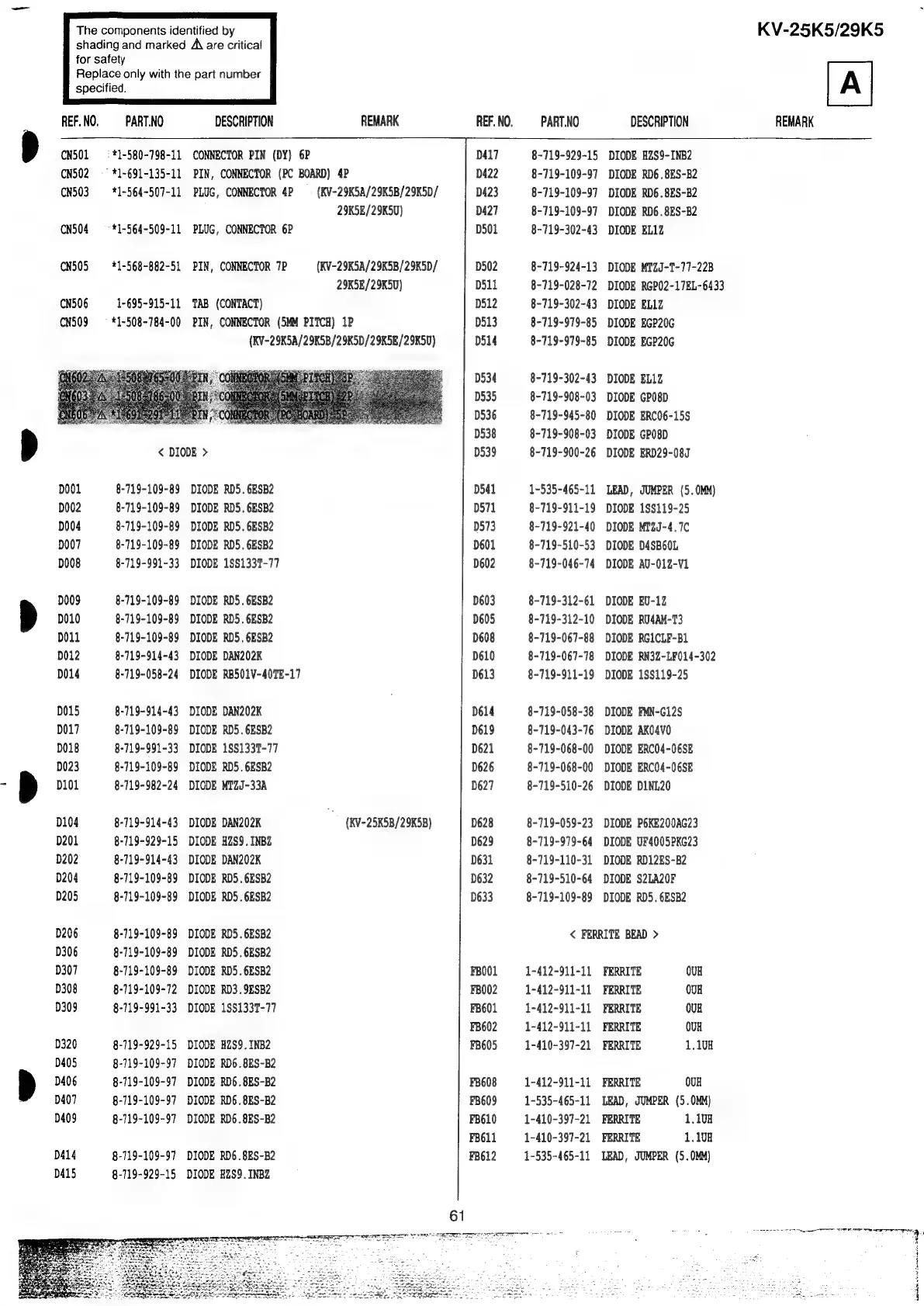

Sony Trinitron KV-25K5A - SECTION 7 ELECTRICAL PARTS LIST; Diodes; Ferrite Beads

The components identified by
shading and marked A\ are critical
KV-25K5/29K5
for safety
Replace only with the part number
specified. | A|
REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK
CN501 = *1-580-798-11 CONNECTOR PIN (DY) 6P D417 8-719-929-15 DIODE H2ZS9-INB2
CN502 = *1-691-135-11 PIN, CONNECTOR (PC BOARD) 4P D422 8-719-109-97 DIODE RDG. 8ES-B2
CN503.—*1-564-507-11 PLUG, CONNECTOR 4P = (KV-29K5A/29K5B/29K5D/ D423 8-719-109-97 DIODE RD6.8ES-B2
29K5E/29K5U) D427 8-719-109-97 DIODE RD6.8ES-B2
CN504 —- *1-564-509-11 PLUG, CONNECTOR 6P D501 8-719-302-43 DIODE ELIZ
CN505 = *1-568-882-51 PIN, CONNECTOR 7P (KV-29K5A/29K5B/29K5D/ D502 8-719-924-13 DIODE MTZJ-T-77-22B
29K5E/29K50) D511 8-719-028-72 DIODE RGP02-17EL-6433
CN506 1-695-915-11 TAB (CONTACT) D512 8-719-302-43 DIODE ELIZ
CN509 = *1-508-784-00 PIN, CONNECTOR (5MM PITCH) 1P D513 8-719-979-85 DIODE EGP20G
(KV-29K5A/29K5B/29K5D/29K5E/29K50) D514 8-719-979-85 DIODE EGP20G
D534 8-719-302-43 DIODE EL1Z
D535 8-719-908-03 DIODE GPO8D
D536 8-719-945-80 DIODE ERCO6-15S
D538 8-719-908-03 DIODE GPOSD
< DIODE > D539 8-719-900-26 DIODE ERD29-08
D001 8-719-109-89 DIODE RD5. 6ESB2 D541 1-535-465-11 LEAD, JUMPER (5.0MM)
D002 8-719-109-89 DIODE RD5.6ESB2 D571 8-719-911-19 DIODE 1$$119-25
D004 8-719-109-89 DIODE RD5.6ESB2 D573 8-719-921-40 DIODE MT2J-4.7C
D007 8-719-109-89 DIODE RD5. 6ESB2 D601 8-719-510-53 DIODE D4SBE0L
D008 8-719-991-33 DIODE 18S133T-77 D602 8-719-046-74 DIODE AU-012-V1
D009 8-719-109-89 DIODE RDS. 6ESB2 D603 8-719-312-61 DIODE EU-12
D010 8-719-109-89 DIODE RDS. 6ESB2 D605, 8-719-312-10 DIODE RU4AN-T3
D011 8-719-109-89 DIODE RD5.6ESB2 D608 8-719-067-88 DIODE RGICLF-B1
D012 8-719-914-43 DIODE DAN202K D610 8-719-067-78 DIODE RN3Z-LF014-302
D014 8-719-058-24 DIODE RB501V-40TE-17 D613 8-719-911-19 DIODE 18$119-25
D015 8-719-914-43 DIODE DAN202K D614 8-719-058-38 DIODE FMN-G12S
D017 8-719-109-89 DIODE RD5. 6ESB2 D619 8-719-043-76 DIODE AKO4V0
D018 8-719-991-33 DIODE 1$$133T-77 D621 8-719-068-00 DIODE ERCO4-06SE
D023 8-719-109-89 DIODE RDS. 6ESB2 D626 8-719-068-00 DIODE ERCO4-06SE
D101 8-719-982-24 DIODE MTZJ-33A D627 8-719-510-26 DIODE D1INL20
D104 8-719-914-43 DIODE DAN202K (KV-25K5B/29K5B) D628 8-719-059-23 DIODE P6KE200AG23
D201 8-719-929-15 DIODE HZS9.INBZ D629 8-719-979-64 DIODE UF4005PKG23
D202 8-719-914-43 DIODE DAN202K D631 8-719-110-31 DIODE RD12ES-B2
D204 8-719-109-89 DIODE RD5.6ESB2 D632 8-719-510-64 DIODE S2LA20F
D205 8-719-109-89 DIODE RD5.6ESB2 D633 8-719-109-89 DIODE RD5. 6ESB2
D206 8-719-109-89 DIODE RD5.6ESB2 < FERRITE BEAD >
D306 8-719-109-89 DIODE RDS. 6ESB2
D307 8-719-109-89 DIODE RD5. 6ESB2 FB001 1-412-911-11 FERRITE OUH
D308 8-719-109-72 DIODE RD3.9ESB2 FB002 1-412-911-11 FERRITE OUH
D309 8-719-991-33 DIODE 1$$133T-77 FB601 1-412-911-11 FERRITE OUH
FB602 1-412-911-11 FERRITE OUH
0320 8-719-929-15 DIODE HZS9.INB2 FB605 1-410-397-21 FERRITE 1.108
D405 8-719-109-97 DIODE RD6.8ES-B2
D406 8-719-109-97 DIODE RD6.8ES-B2 FB608 1-412-911-11 FERRITE OUH
D407 8-719-109-97 DIODE RD6.8ES-B2 FB609 1-535-465-11 LEAD, JUMPER (5.0MM)
D409 8-719-109-97 DIODE RD6.8ES-B2 FB610 1-410-397-21 FERRITE 1,108
FB611 1-410-397-21 FERRITE 1.108
D414 8-719-109-97 DIODE RDG. 8ES-B2 FB612 1-535-465-11 LEAD, JUMPER (5.0MM)
D415 8-719-929-15 DIODE H2S9. INBZ
