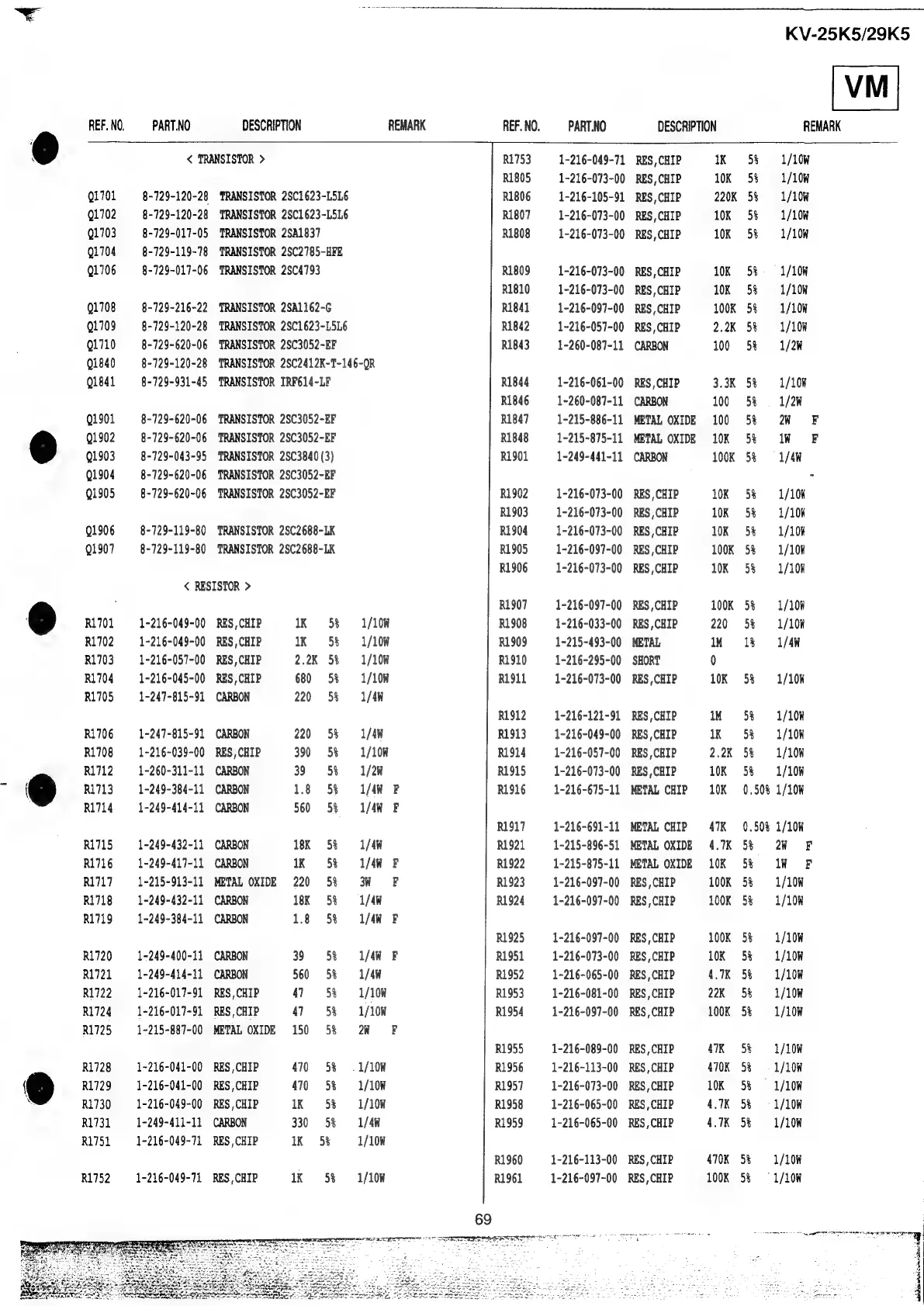

Sony Trinitron KV-25K5A - SECTION 7 ELECTRICAL PARTS LIST; Transistors; Resistors

KV-25K5/29K5
REF. NO, PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK
@ < TRANSISTOR > R1753 1-216-049-71 RES, CHIP 1K O5% 1/10W
R1805 1-216-073-00 RES,CHIP 10K 5% 1/10W
Q1701 8-729-120-28 TRANSISTOR 28C1623-L5L6 R1806 1-216-105-91 RES, CHIP 220K 5% 1/10W
Q1702 8-729-120-28 TRANSISTOR 2SC1623-L5L6 R1807 1-216-073-00 RES, CHIP 10K 5% 1/108
Q1703 8-729-017-05 TRANSISTOR 2SA1837 R1808 1-216-073-00 RES,CHIP 10K 5% 1/10W
Q1704 8-729-119-78 TRANSISTOR 28C2785-HFE
Q1706 8-729-017-06 TRANSISTOR 2SC4793 R1809 1-216-073-00 RES, CHIP 10K 65% = 1/10W
R1810 1-216-073-00 RES, CRIP 10K 5% 1/10W
Q1708 8-729-216-22 TRANSISTOR 2SA1162-G R184] 1-216-097-00 RES,CHIP 100K 5% 1/10W
Q1709 8-729-120-28 TRANSISTOR 2SC1623-L5L6 R1842 1-216-057-00 RES,CHIP 2.2K 5% 1/108
Q1710 8-729-620-06 TRANSISTOR 2SC3052-EF R1843 1-260-087-11 CARBON 100 5% 1/26
Q1840 8-729-120-28 TRANSISTOR 2SC2412K-T-146-QR
Q1g4i 8-729-931-45 TRANSISTOR IRF614-LF R1844 1-216-061-00 RES,CHIP 3.3K 5% 1/108
R1846 1-260-087-11 CARBON 100 058 . 1/2W
Q1901 8-729-620-06 TRANSISTOR 2SC3052-EF R1847 1-215-886-11 METAL OXIDE 100 5% W F
Q1902 8-729-620-06 TRANSISTOR 2SC3052-EF R1848 1-215-875-11 METAL OXIDE 10K 5% iW F
@ Q1903 8-729-043-95 TRANSISTOR 2SC3840 (3) R1901 1-249-441-11 CARBON 100K 5% = .1/4W
91904 8-729-620-06 TRANSISTOR 2SC3052-EF -
Q1905 8-729-620-06 TRANSISTOR 2SC3052-EF R1902 1-216-073-00 RES, CHIP 10K 5% 1/104
R1903 1-216-073-00 RES,CHIP 10K 65%) /10W
Q1906 8-729-119-80 TRANSISTOR 2SC2688-LK R1904 1-216-073-00 RES,CHIP 10K 5% 1/100
Q1907 8-729-119-80 TRANSISTOR 2SC2688-LK R1905 1-216-097-00 RES, CHIP 100K 5% 1/10W
R1906 1-216-073-00 RES, CHIP 10K 53 )~=—1/10W
< RESISTOR >
; R1907 1-216-097-00 RES, CHIP 100K 5% 1/10W
@ R1701 1-216-049-00 RES, CHIP WK 5%) s1/10W R1908 1-216-033-00 RES,CHIP 220 5% «1/100
R1702 1-216-049-00 RES ,CHIP IK 65% ~=—:1/10W R1909 1~215-493-00 METAL IM sos / AW
R1703 1-216-057-00 RES,CHIP 2.2K 5% 1/10 R1910 1-216-295-00 SHORT 0
R1704 1-216-045-00 RES, CHIP 680 5% 1/10W R1911 1-216-073-00 RES,CHIP 10K 5% 1/10W
R1705 1-247-815-91 CARBON 220 58 = 1/4
R1912 1-216-121-91 RES,CHIP IM 5%) s1/10W
R1706 1-247-815-91 CARBON 220 «5% 81/4 R1913 1-216-049-00 RES, CHIP 1K 65% ~=—1/10W
R1708 1-216-039-00 RES,CRIP 390 5% 1/108 R1914 1-216-057-00 RES,CHIP 2.2K 5% 1/10
R1712 1-260-311-11 CARBON 39 5% 1/2W R1915 1-216-073-00 RES,CHIP 10K 5% 1/10W
@ R1713 1-249-384-11 CARBON 1.8 53 i/4W F R1916 1-216-675-11 METAL CHIP 10K 0.50% 1/10W
R1714 1-249-414-11 CARBON 560 5% 1/48 F
R1917 1-216-691-11 METAL CHIP 47K 0.50% 1/10W
R1715 1-249-432-11 CARBON 18K 5% 1/4W R1921 1-215-896-51 METAL OXIDE 4.7K 5% WF
R1716 1-249-417-11 CARBON 1K 5% 1/4 F R1922 1-215-875-11 METAL OXIDE 10K 5% W oF
R1717 1-215-913-11 METAL OXIDE 220 5% HOF R1923 1-216-097-00 RES,CHIP 100K 5% 1/10W
R1718 1-249-432-11 CARBON 18K 5% 1/40 R1924 1-216-097-00 RES,CHIP 100K 5% 1/108
R1719 1-249-384-11 CARBON 1.8 5% 1/4W F
R1925 1-216-097-00 RES,CRIP 100K 5% 1/10
R1720 1-249-400-11 CARBON 39 5% 1/48 F R1951 1-216-073-00 RES,CHIP 10K 5% 1/100
R1721 1-249-414-11 CARBON 560 5% 1/4W R1952 1-216-065-00 RES,CHIP 4.7K 5% 1/10¥
R1722 1-216-017-91 RES,CHIP 4] 5% 1/10W R1953 1-216-081-00 RES,CHIP 22K 5% 1/10
R1724 1-216-017-91 RES, CHIP 47 5% 1/100 R1954 1-216-097-00 RES, CHIP 100K 5% 1/10W
R1725 1-215-887-00 METAL OXIDE 150 5% QW fF
R1955 1-216-089-00 RES, CHIP 47K 5% 1 /10W
R1728 1-216-041-00 RES, CHIP 470 58 = 1/10W R1956 1-216-113-00 RES, CHIP 470K 53 = 1/10W
© R1729 1-216-041-00 RES, CHIP 470 58 1/108 R1957 1-216-073-00 RES,CHIP 10K 653 = 1/10W
: R1730 1-216-049-00 RES, CHIP 1K O58) 1/10W R1958 1-216-065-00 RES, CHIP 4.7K 58 = 1/10"
R1731 1-249-411-11 CARBON 330 58 = 1/48 R1959 1-216-065-00 RES,CHIP 4.7K 5% = 1/100
R1751 1-216-049-71 RES, CHIP IK 5% 1/10W
R1960 1-216-113-00 RES, CHIP 470K 53 1/10
R1752 1-216-049-71 RES, CHIP 1K 581/10" R1961 1-216-097-00 RES, CHIP 100K 5% = 1/10W
