KV-29FX11
SECTION 6
EXPLODED VIEWS
REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK
• Items with no part number and no description are not
stocked because they are seldom required for routine
service.
• The construction parts of an assembled part are indi-
cated with a collation number in the remarks column.
• Items marked “ * “ are not stocked
since they are seldom required for
routine service. Some delay should
be anticipated when ordering
these items.

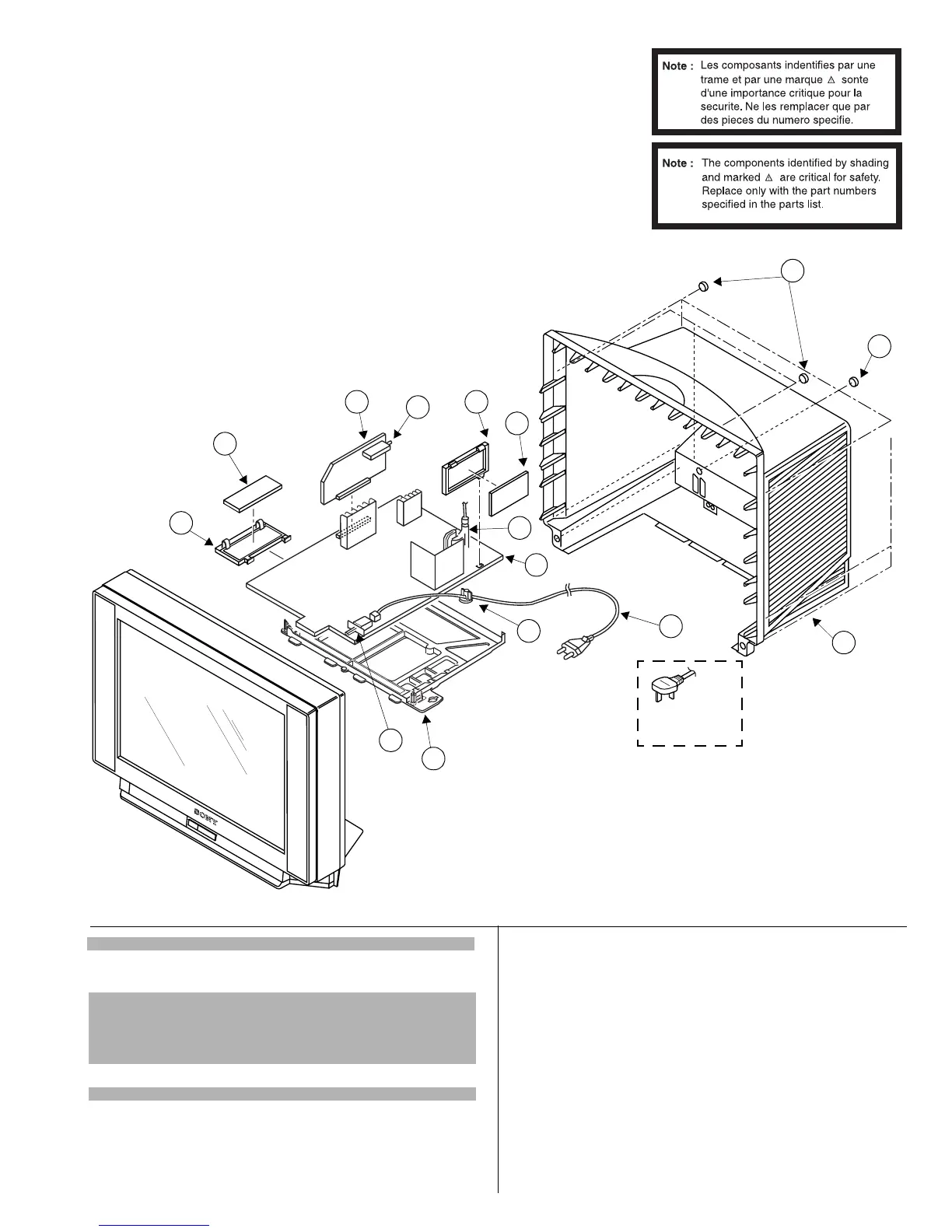

6-1. CHASSIS
NOTE :
1 £ 1-571-433-21 SWITCH, PUSH (AC POWER)
2 *4-203-315-41 BRACKET, MAIN
3 *4-202-531-01 AC CORD LOCK (SC)
4 £ 1-765-286-11 CORD POWER (KV-29FX11A/29FX11B/29FX11D/
KV-29FX11E/29FX11K)
£ 1-574-062-61 CORD POWER (WITH CONNECTOR) (KV-29FX11R)
£ 1-776-204-11 CORD POWER (FILTER) (KV-29FX11U)
5 *A-1642-232-A D BOARD, COMPLETE
6 £ 1-453-269-11 TRANSFORMER ASSY, FLYBACK (NA-4511/U2B4)
7 *A-1640-307-A D5 BOARD, COMPLETE
8 *4-204-206-01 BRACKET, D5
9 1-693-338-11 TUNER/VIF (AEP)
(KV-29FX11A/29FX11D/29FX11E/29FX11K/
KV-29FX11R)
1-693-340-11 TUNER/VIF (FR) (KV-29FX11B)
1-693-339-11 TUNER/VIF (UK) (KV-29FX11U)
10 *A-1632-783-A A BOARD, COMPLETE (KV-29FX11A)
*A-1632-782-A A BOARD, COMPLETE (KV-29FX11B)
*A-1632-769-A A BOARD, COMPLETE (KV-29FX11D)
*A-1632-784-A A BOARD, COMPLETE (KV-29FX11E)
*A-1632-785-A A BOARD, COMPLETE (KV-29FX11K)
*A-1632-786-A A BOARD, COMPLETE (KV-29FX11R)
*A-1632-781-A A BOARD, COMPLETE (KV-29FX11U)
11 *A-1649-022-A K5 BOARD, COMPLETE
12 *4-204-189-01 BRACKET, K5
13 4-204-188-01 COVER, REAR
14 7-685-904-21 SCREW +PTPWH 4X10 TYPE 2
15 4-039-358-01 SCREW (4X16),(+)BV TAPPING
12
8
7
5
1
2
3
11
6
10
9
13
4
15
14
KV-29FX11U
only
To Next Page
