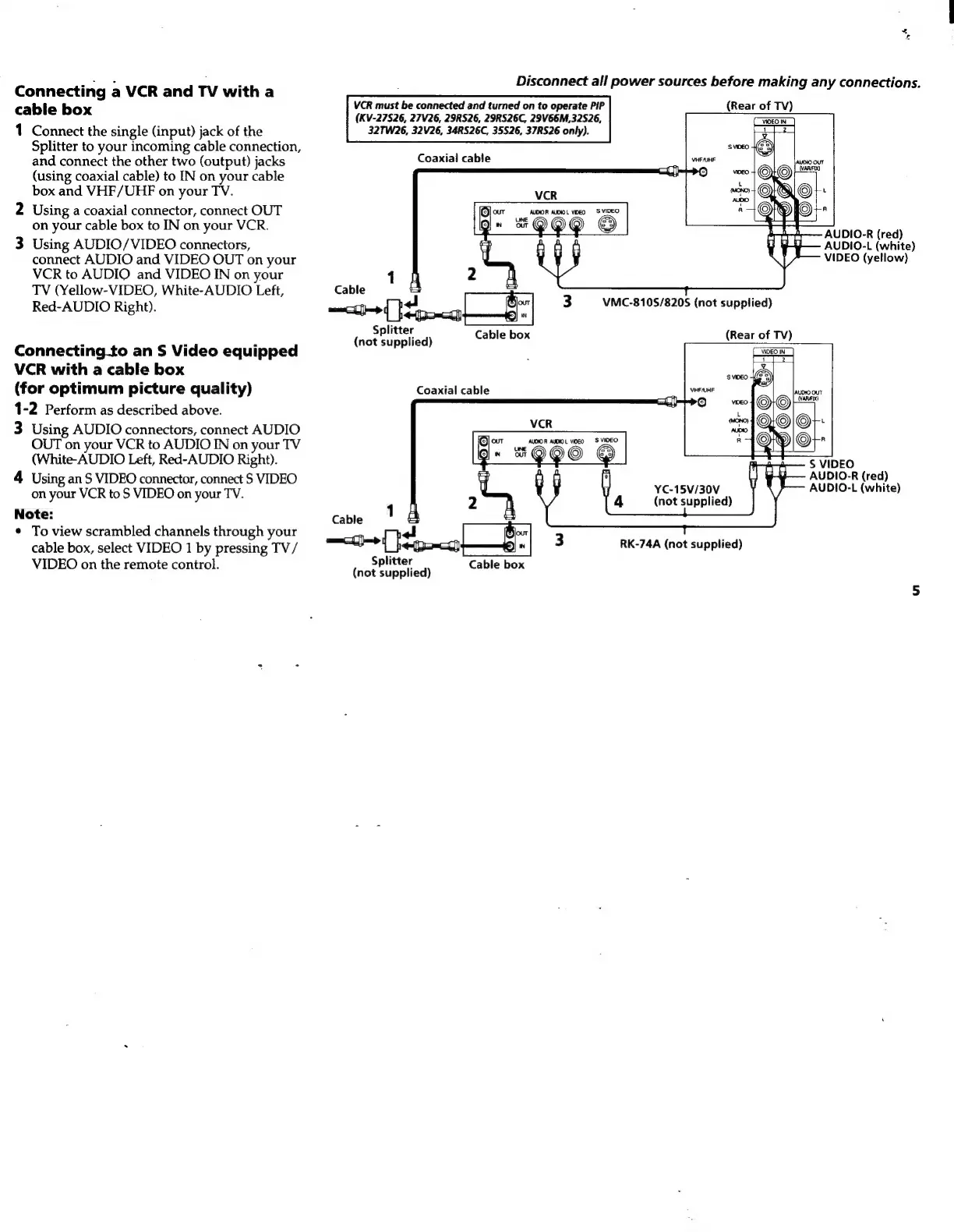

Connecting
a
VCR
and
TV
with
a
cable
box
1
Connect
the
single
(input)
jack
of
the
Splitter
to
your
incoming
cable
connection,
and
connect
the
other
two
(output)
jacks
(using
coaxial
cable)
to
IN
on
your
cable
box
and
VHF/UHF
on
your
TV.
2
Using
a
coaxial
connector,
connect
OUT
on
your
cable
box
to
IN
on
your
VCR.
3
Using
AUDIO/VIDEO
connectors,
connect
AUDIO
and
VIDEO
OUT
on
your
VCR
to
AUDIO
and
VIDEO
IN
on
your
TV
(Yellow-VIDEO,
White-AUDIO
Left,
Red-AUDIO
Right).
Connecting_to
an
S
Video
equipped
VCR
with
a
cable
box
(for
optimum
quality)
1-2
Perform
as
described
above.
3
Using
AUDIO
connectors,
connect
AUDIO
OUT
on
your
VCR
to
AUDIO
IN
on
your
TV
(White-AUDIO
Left,
Red-AUDIO
Right).
4
Using
an
S
VIDEO
connector,
connect
S
VIDEO
on
your
VCR
to
S
VIDEO
on
your
TV.
Note:
¢
To
view
scrambled
channels
through
your
cable
box,
select
VIDEO
1
by
pressing
TV/
VIDEO
on
the
remote
control.
Disconnect
all
power
sources
before
making
any
connections.
(Rear
of
TV)
VCR
must
be
connected
and
turned
on
to
operate
PIP
(KV-27826,
27V26,
29RS26,
29RS26C,
29V66M,32526,
32TW26,
32V26,
34RS26C,
35526,
37RS26
only).
Coaxial
cable
<l
J
3
Splitter
(not
supplied)
Cableibox
Coaxial
cable
1
Cable
=
ol)
3
Splitter
Cable
box
(not
supplied)
AUDIO-R
(red)
AUDIO-L
(white)
VIDEO
(yellow)
VMC-810S/820S
(not
supplied)
(Rear
of
TV)
S
VIDEO
AUDIO-R
(red)
AUDIO-L
(white)
YC-15V/30V
(not
supplied)
RK-74A
(not
supplied)
