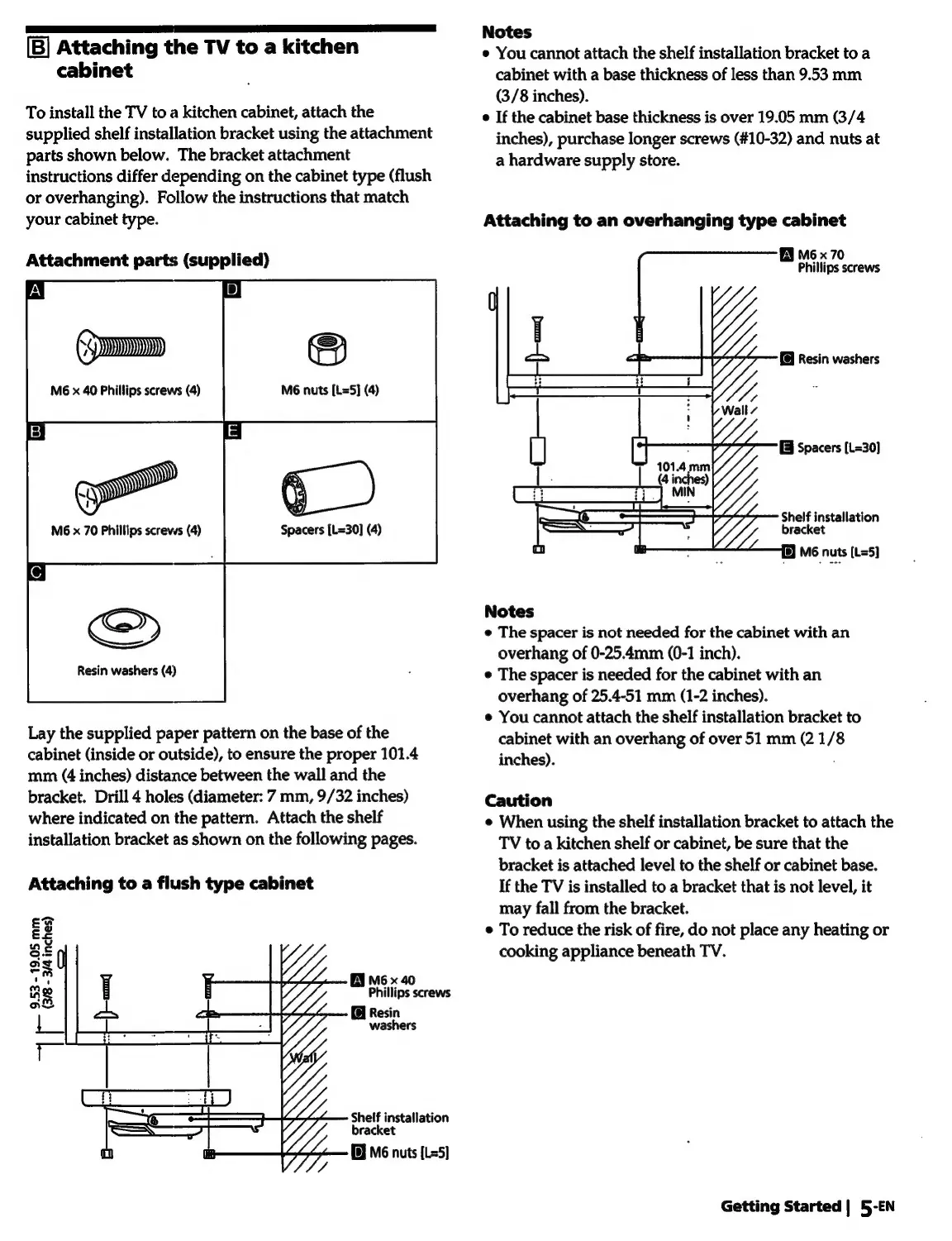

Sony Trinitron KV-9PT40 - Page 5

Attaching the TV to a kitchen
cabinet
To install the TV to a kitchen cabinet, attach the
supplied shelf installation bracket using the attachment
parts shown below. The bracket attachment
instructions differ depending on the cabinet type (flush
or overhanging). Follow the instructions that match
your cabinet type.
Attachment parts (supplied)
M6 nuts [L=5] (4)
gq
Spacers [L=30] (4)
yD
arm
M6 x 70 Phillips screws (4)
Resin washers (4)
Lay the supplied paper pattern on the base of the
cabinet (inside or outside), to ensure the proper 101.4
mum (4 inches) distance between the wall and the
bracket. Drill 4 holes (diameter: 7 mm, 9/32 inches)
where indicated on the pattern. Attach the shelf
installation bracket as shown on the following pages.
Attaching to a flush type cabinet
€
€
w
o-
g
j M6 x 40
fh Phillips screws
2 Resin
| washers
Shelf installation
bracket
© M6 nuts [L=5)
Notes
e You cannot attach the shelf installation bracket to a
cabinet with a base thickness of less than 9.53 mm
(3/8 inches).
e If the cabinet base thickness is over 19.05 mm (3/4
inches), purchase longer screws (#10-32) and nuts at
a hardware supply store.
Attaching to an overhanging type cabinet
M6 x 70
Phillips screws
Resin washers
Spacers (L=30]
Shelf installation
bracket
2) M6 nuts (L=5)
Notes
¢ The spacer is not needed for the cabinet with an
overhang of 0-25.4mm (0-1 inch).
¢ The spacer is needed for the cabinet with an
overhang of 25.4-51 mm (1-2 inches).
¢ You cannot attach the shelf installation bracket to
cabinet with an overhang of over 51 mm (2 1/8
inches).
Caution
e When using the shelf installation bracket to attach the
TV toa kitchen shelf or cabinet, be sure that the
bracket is attached level to the shelf or cabinet base.
If the TV is installed to a bracket that is not level, it
may fall from the bracket.
e To reduce the risk of fire, do not place any heating or
cooking appliance beneath TV.
Getting Started | 5-EN
