Sony TRINITRON KV-G142M - Disassembly Procedures; Rear Cover Removal; A Board Removal; F1 Board Removal

– 9 –
KV-G14M2
RM-869

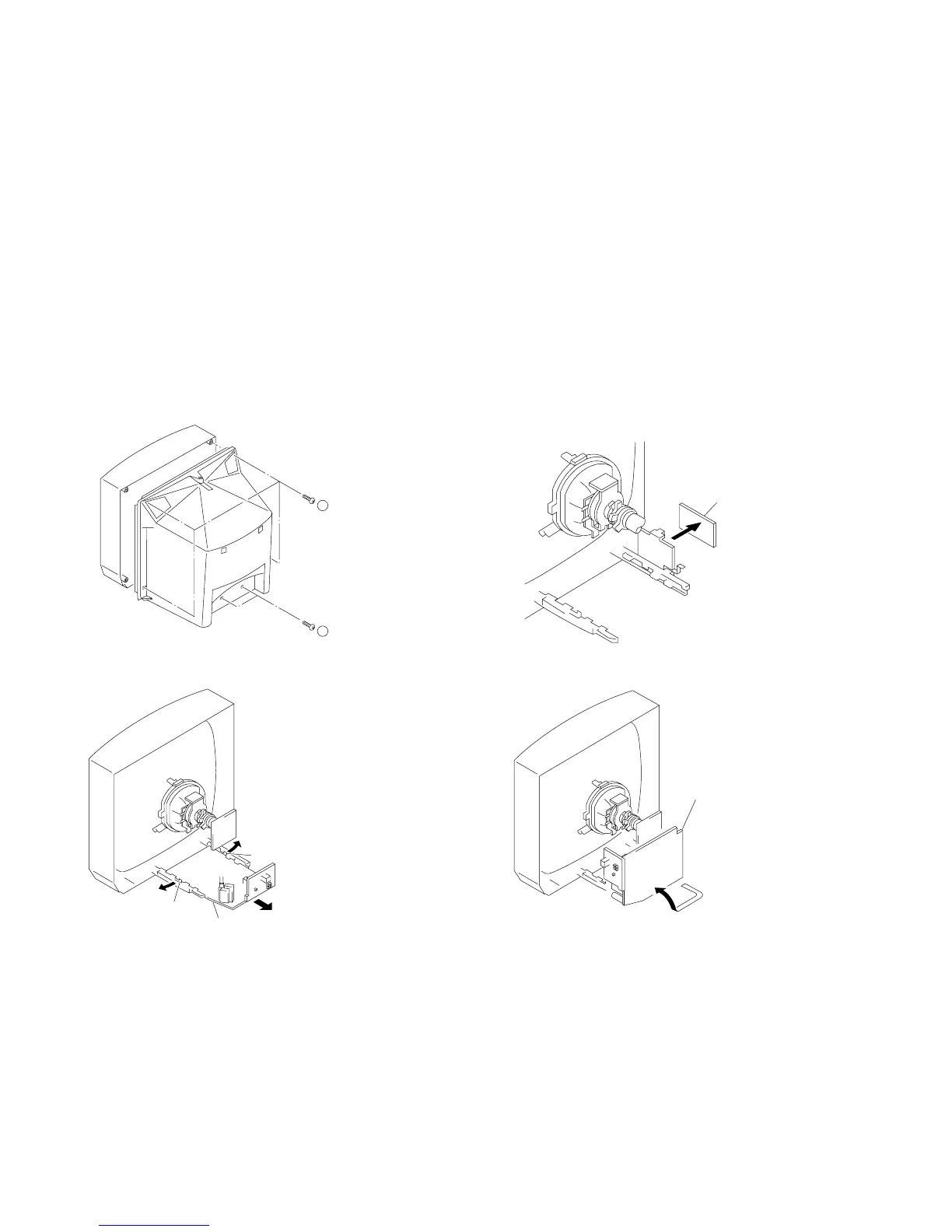

2-1. REAR COVER REMOVAL
2-2. A BOARD REMOVAL
SECTION 2
DISASSEMBLY
Seven screws
(BVTP 4×16)
1
2
Four screws
(BVTP 4×16)
Lever
Lever
A board
2-3. F1 BOARD REMOVAL
F1 board
2-4. SERVICE POSITION
A board
