– 20 –
KV-PF14DK7/PF14L70/PF14M40/PF14M70
KV-PF14P10/PF14P70/PF14Q70
RM-952

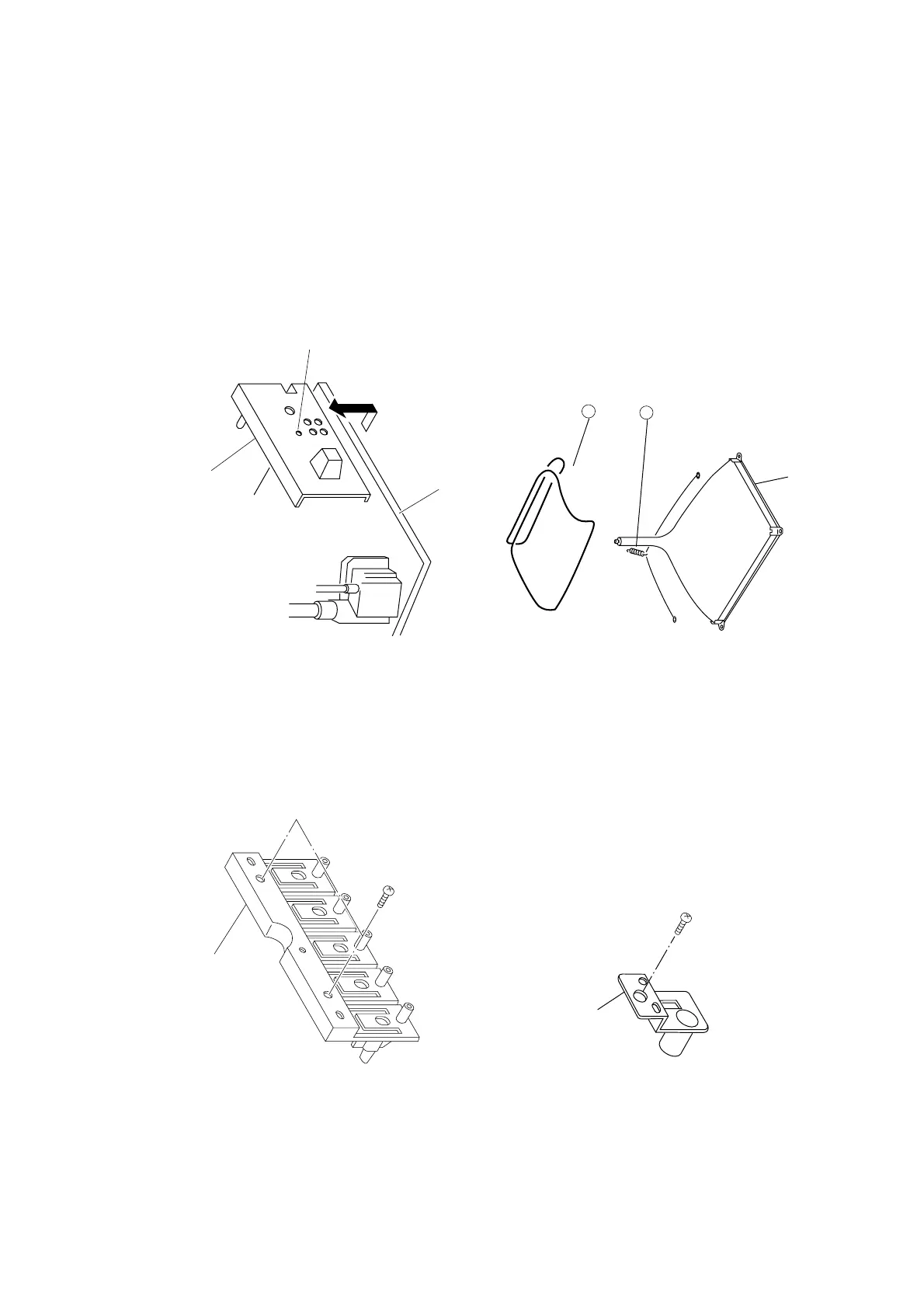

2-6. TERMINAL BRACKET REMOVAL
A board
Screw
Terminal board bracket
2-7. DEGAUSS COIL REMOVAL
1
Demagnetization coil
2
Tension spring
Picture tube
2-5. REPLACEMENT OF PARTS
For replacement of the Multi Button and Bar Optical, unscrew to exchange with the
new parts, and fix them with screws (+BVTP) respectively.
2-5-1. REPLACEMENT OF MULTI BUTTON
Multi button
Two screws
2-5-2. REPLACEMENT OF BAR OPTICAL
Bar optical
One screw
(BVTP 3×12)
