Sony TRINITRON KV-PF21DK7 - 6 Exploded View; Chassis

– 77 – – 78 –
KV-PF21N70/PF51P40/PF21P70/PF21Q40
RM-915 RM-952 RM-952 RM-952
KV-PF21Q70/PF21M70/PF21DK7
RM-952 RM-952 RM-952
KV-PF21N70/PF51P40/PF21P70/PF21Q40
RM-915 RM-952 RM-952 RM-952
KV-PF21Q70/PF21M70/PF21DK7
RM-952 RM-952 RM-952
1 X-4036-748-3 BEZNET ASSY (KV-PF21P70/PF51P40) 3,32,33
X-4036-748-1 BEZNET ASSY (KV-PF21M70) 3,32,33
X-4036-758-2 BEZNET ASSY (KV-PF21Q70/PF21Q40) 3,32,33
X-4036-758-3 BEZNET ASSY (KV-PF21DK7) 3,32,33
X-4037-022-1 BEZNET ASSY (KV-PF21N70) 3,32,33
2 4-070-291-01 BUTTON, POWER (except KV-PF21DK7)
4-070-291-11 BUTTON, POWER (KV-PF21DK7 only)
3 4-070-290-01 BUTTON, MULTI (execpt KV-PF21DK7)
4-070-290-11 BUTTON, MULTI (KV-PF21DK7)
4 1-505-740-11 SPEAKER (5X9CM)
5 4-054-981-01 SCREW, STEP TAPPING
6 4-365-808-01 SCREW (5), TAPPING
7 4-046-600-11 SPACER, DY
8 * 3-704-372-11 HOLDER, HV CABLE
9 ! 8-738-809-05 PICTURE TUBE (A51LPT70X)
(execpt KV-PF21N70/PF51P40)
! 8-738-812-05 PICTURE TUBE (A51LPT70X)
(KV-PF21N70/PF51P40)
10 ! 8-451-505-11 DEFLCETION YOKE (Y21RSA-S)
11 * A-1331-884-A C3 BOARD MOUNTED
12 4-369-318-61 SPRING, TENSION
13 ! 1-416-946-11 COIL, DEMAGNETIC (except KV-PF21N70)
! 1-416-946-31 COIL, DEMAGNETIC (KV-PF21N70 only)
14 * 4-067-189-01 PWB(L), GUIDE
15 * 4-067-187-01 PWB(R), GUIDE
16 * 8-598-447-00 TUNER, FSS BTF-LG411 (except KV-PF21N70/PF21M70)
* 8-598-430-00 TUNER, FSS BTF-FA401 (KV-PF21N70 only)
* 8-598-449-10 TUNER, FSS BTF-LG433 (KV-PF21M70 only)
17 ! 1-453-293-11 TRANSFORMER ASSY, FLYBACK (NX-1748//M3A4)
18 * A-1298-975-A A BOARD COMPLETE (KV-PF21P70)
A-1299-031-A A BOARD COMPLETE (KV-PF21N70)
A-1299-018-A A BOARD COMPLETE (KV-PF51P40)
A-1299-021-A A BOARD COMPLETE (KV-PF21Q40/PF21Q70)
A-1299-026-A A BOARD COMPLETE (KV-PF21M70)
A-1299-028-A A BOARD COMPLETE (KV-PF21DK7)
19 4-057-714-01 PIECE ASSY, TLH CORRECTION
20 4-022-115-00 HOLDER, AC CORD
21 ! 1-574-062-11 CORD, POWER (WITH CONNECTOR) 2.5A/250V
(except KV-PF21N70)
! 1-575-023-11 CORD, POWER (WITH CONNECTOR) 2.5A/250V
(KV-PF21N70 only)
22 1-452-032-00 MAGNET,DISC
23 4-051-736-41 PIECE A(90), CONV, CORRECT
24 4-067-167-21 BRACKET,TERMINAL
25 1-452-094-00 CIRCULAR DISC MAGNET B
26 4-069-651-02 BLOTTING SHEET
27 * A-1241-355-A F BOARD MOUNTED
28 ! 4-070-300-01 COVER, REAR
29 4-064-883-11 HOLDER, DGC
30 * 4-379-189-11 CUSHION, SPEAKER
31 4-069-652-02 CUSHION (HS BAND)
32 X-4036-753-3 DOOR ASSY, CONTROL (KV-PF21DK7)
X-4036-753-2 DOOR ASSY, CONTROL (KV-PF21Q40/PF21Q70)
X-4037-021-1 DOOR ASSY, CONTROL (KV-PF21N70)
X-4036-750-1 DOOR ASSY, CONTROL (KV-PF21M70)
X-4036-750-3 DOOR ASSY, CONTROL (KV-PF21P70/PF51P40)
33 4-070-292-01 BAR OPTICAL

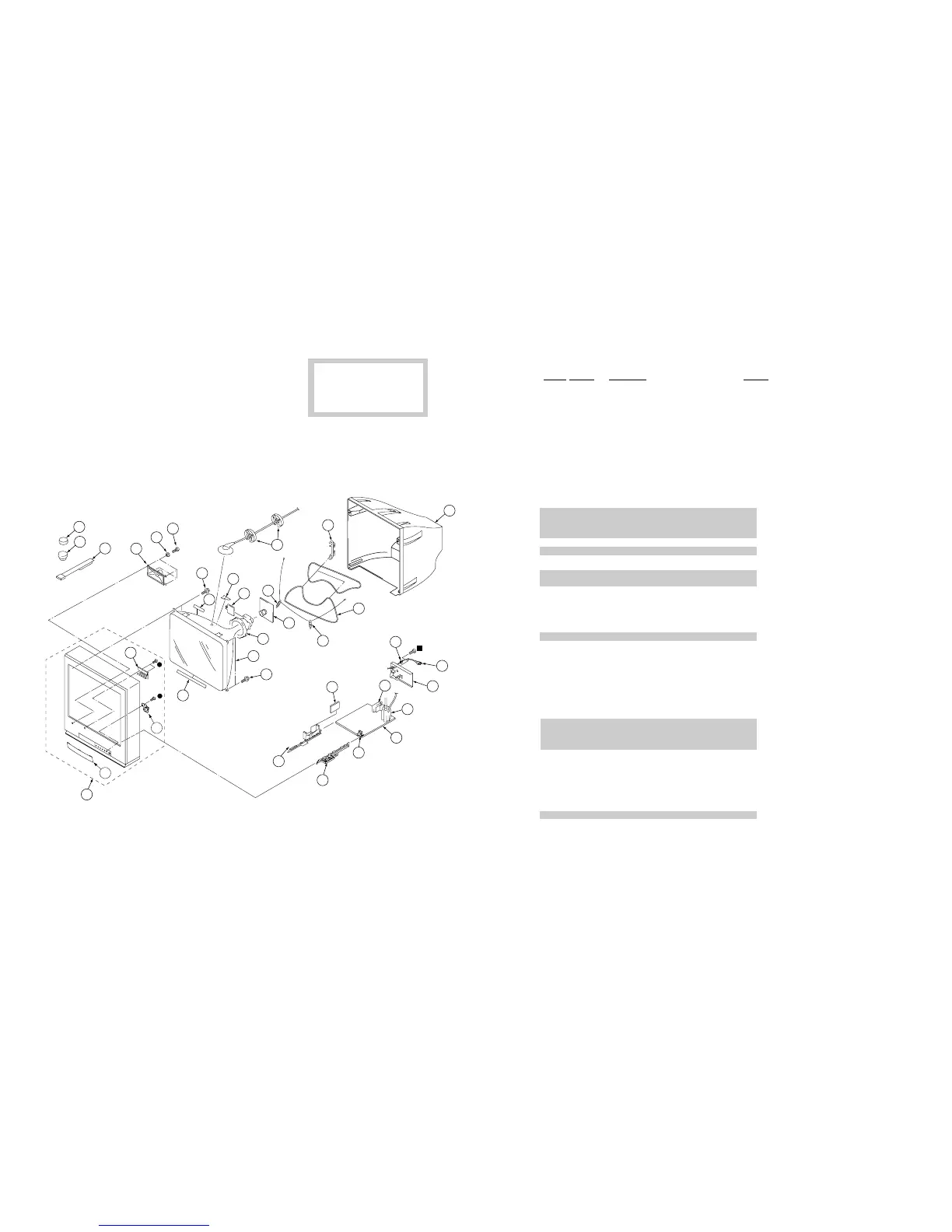

SECTION 6
EXPLODED VIEW
NOTE:
• Items with no part number and no description are
not stocked because they are seldom required
for routine service.
• The construction parts of an assembled part are
indicated with a collation number in the remark
column.
The components identified by
shading and mark ! are critical
for safety.
Replace only with part number
specified.
• Items marked " * " are not stocked since they
are seldom required for routine service. Some
delay should be
anticipated when ordering these items.
4
30
22
25
23
6
5
31
7
19
12
29
28
13
12
11
10
9
6
26
1
14
15
2
18
27
16
20
21
24
17
3
33
32
8
REF. NO. PART NO. DESCRIPTION REMARK
6-1. CHASSIS
[: BVTP 3 × 12 7-685-648-79
L: BVTP 4 × 16 7-685-663-71
NOTE : This picture tube for INdonesian model is upside down, and the position for the
anode cap and tensions springs are change accordingly.
