Sony TRINITRON KV-PF21M70 - Degauss Coil Removal; Picture Tube Removal

– 45 –
KV-PF21M70/TF21M61/TF21M90/TF21P11
RM-952

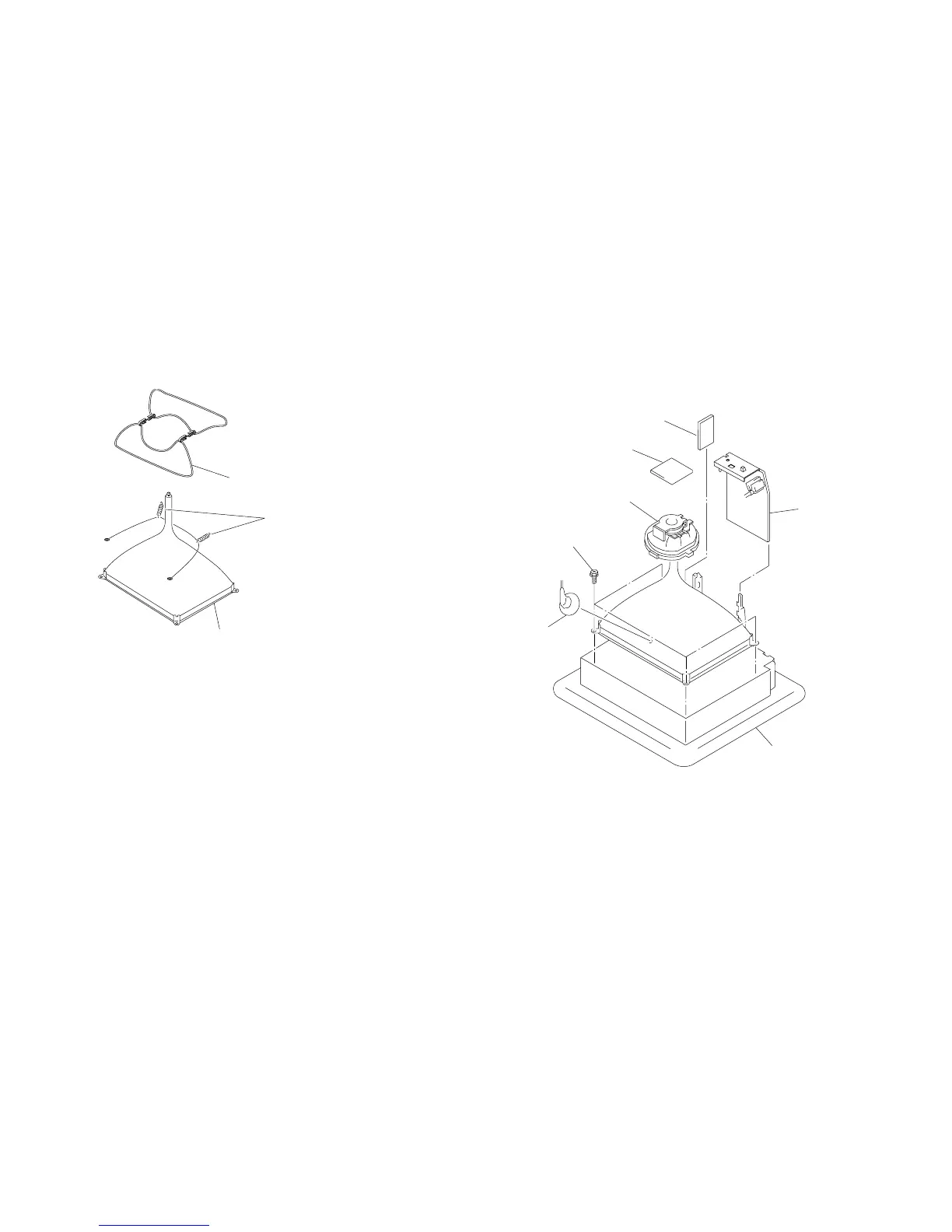

2-8. PICTURE TUBE REMOVAL
NOTE : The picture tube for OCE model is upside down, and the positon for the
anode cap and tension springs are changed accordingly.
2 A board
4 C5 board
(except KV-PF21M70)
C3 board
(KV-PF21M70)
5 Deflection yoke
Cushion
6 Four screws
(Tapping screws)
1 Anode cap
3 F board
2-7. DEGAUSS COIL REMOVAL
1 Demagnetization coil
2 Tension spring
Picture tube
