Sony TRINITRON KV-PF21M70 - Chassis (KV-TF21 M61;TF21 M90;TF21 P11)

KV-PF21M70/TF21M61/TF21M90/TF21P11
RM-952
KV-PF21M70/TF21M61/TF21M90/TF21P11
RM-952

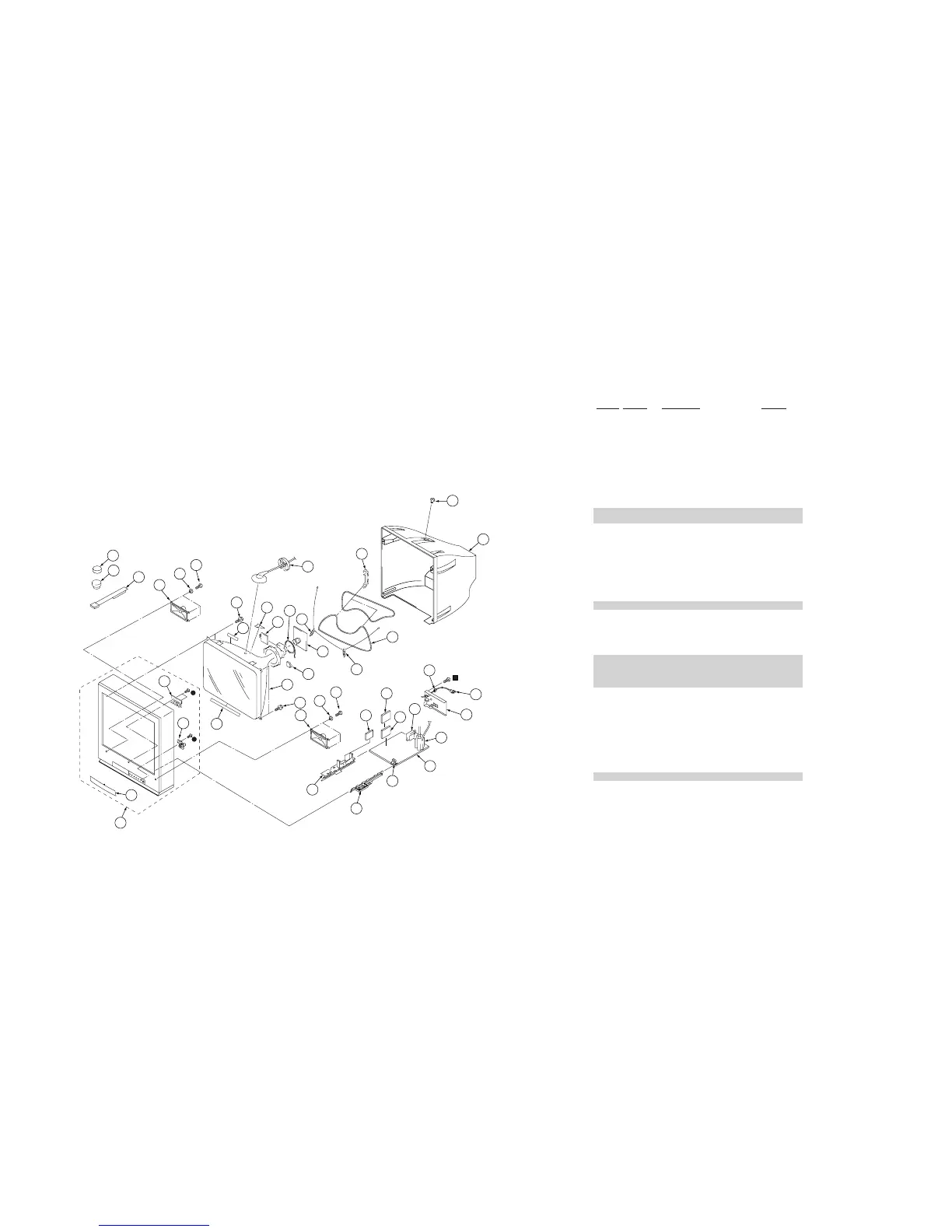

6-2. CHASSIS (KV-TF21M61/TF21M90/TF21P11)
[: BVTP 3 × 12 7-685-648-79
L: BVTP 4 × 16 7-685-663-71
NOTE: The picture tube for OCE model is upside down, and the
position anode cap and tension springs are changed accordingly.
– 95 –
– 96 –
REF. NO. PART NO. DESCRIPTION REMARK
(KV-TF21M61/TF21M90/TF21P11)
1 X-4036-744-1 BEZNET ASSY (KV-TF21M61) 3, 28, 37
X-4036-745-1 BEZNET ASSY (KV-TF21M90) 3, 28, 37
X-4036-744-2 BEZNET ASSY (KV-TF21P11) 3, 28, 37
2 4-070-291-01 BUTTON, POWER
3 4-070-290-01 BUTTON, MULTI
4 1-505-740-11 SPEAKER (5X9CM)
5 4-054-981-01 SCREW, STEP TAPPING
6 4-365-808-01 SCREW (5), TAPPING
7 4-046-600-11 SPACER, DY
8 * 3-704-372-11 HOLDER, HV CABLE
9 ! 8-738-809-05 PICTURE TUBE (A51LPT70X) (KV-TF21M90)
! 8-738-812-05 PICTURE TUBE (A51LPT70X) (EXCEPT KV-TF21M90)
10 8-451-505-11 DEFLECTION YOKE (Y21RSA-S)
11 * A-1331-941-A C5 BOARD, MOUNTED
12 4-369-318-61 SPRING, TENSION
13 1-416-946-11 COIL, DEMAGNETIC
14 * 4-067-189-01 PWB(L), GUIDE
15 * 4-067-187-01 PWB(R), GUIDE
16 8-598-451-00 TUNER, FSS-BTF-WG441 (EXCEPT KV-TF21P11)
8-598-447-00 TUNER, FSS-BTF-LG411 (KV-TF21P11)
17 ! 1-453-293-11 TRANSFORMER ASSY, FLYBACK (NX-1748//M3A4)
18 * A-1298-942-A A BOARD, COMPLETE (KV-TF21M61)
* A-1298-951-A A BOARD, COMPLETE (KV-TF21M90)
* A-1298-968-A A BOARD, COMPLETE (KV-TF21P11)
19 4-057-714-01 PIECE ASSY, TLH CORRECTION
20 4-022-115-00 HOLDER, AC CORD
21 ! 1-574-062-11 CORD, POWER (WITH CONNECTOR) 2.5A/250V
(KV-TF21M61)
! 1-769-609-21 CORD, POWER (WITH CONNECTOR) (KV-TF21M90)
! 1-574-358-11 CORD, POWER (WITH CONNECTOR) (KV-TF21P11)
22 1-452-032-00 MAGNET,DISC
23 4-051-736-21 PIECE A(90), CONV. CORRECT
24 4-067-167-01 BRACKET,TERMINAL
25 1-452-094-00 CIRCULAR DISC MAGNET B (EXCEPT KV-TF21P11)
1-452-014-11 CIRCULAR DISC MAGNET B (KV-TF21P11)
26 4-069-651-01 BLOTTING SHEET
27 * A-1241-355-A F BOARD, MOUNTED
28 X-4036-760-1 DOOR ASSY, CONTROL (KV-TF21M61)
X-4036-761-1 DOOR ASSY, CONTROL (KV-TF21M90)
X-4036-760-2 DOOR ASSY, CONTROL (KV-TF21P11)
29 ! 4-070-300-01 COVER, REAR
30 4-064-883-11 HOLDER, DGC
31 * 4-379-189-12 CUSHION, SPEAKER
32 4-069-652-01 CUSHION (HS BAND)
33 * A-1347-155-A V1 BOARD, COMPLETE (KV-TF21M61/TF21P11 ONLY)
34 * 4-068-953-01 BRACKET, V1 (KV-TF21M61/TF21P11 ONLY)
35 1-452-728-61 COIL, NA ROTATION (RT-154)
36 4-034-272-11 PLATE, CORRECTION, TLV (KV-TF21P11 ONLY)
37 * 4-070-292-01 BAR, OPTICAL
38 4-038-462-01 CAP, ANTENNA
22
25
23
6
32
7
19
12
8
30
29
38
13
12
11
36
35
9
6
26
1
28
14
15
2
18
27
34
16
20
33
21
24
17
3
4
31
5
4
31
5
33
