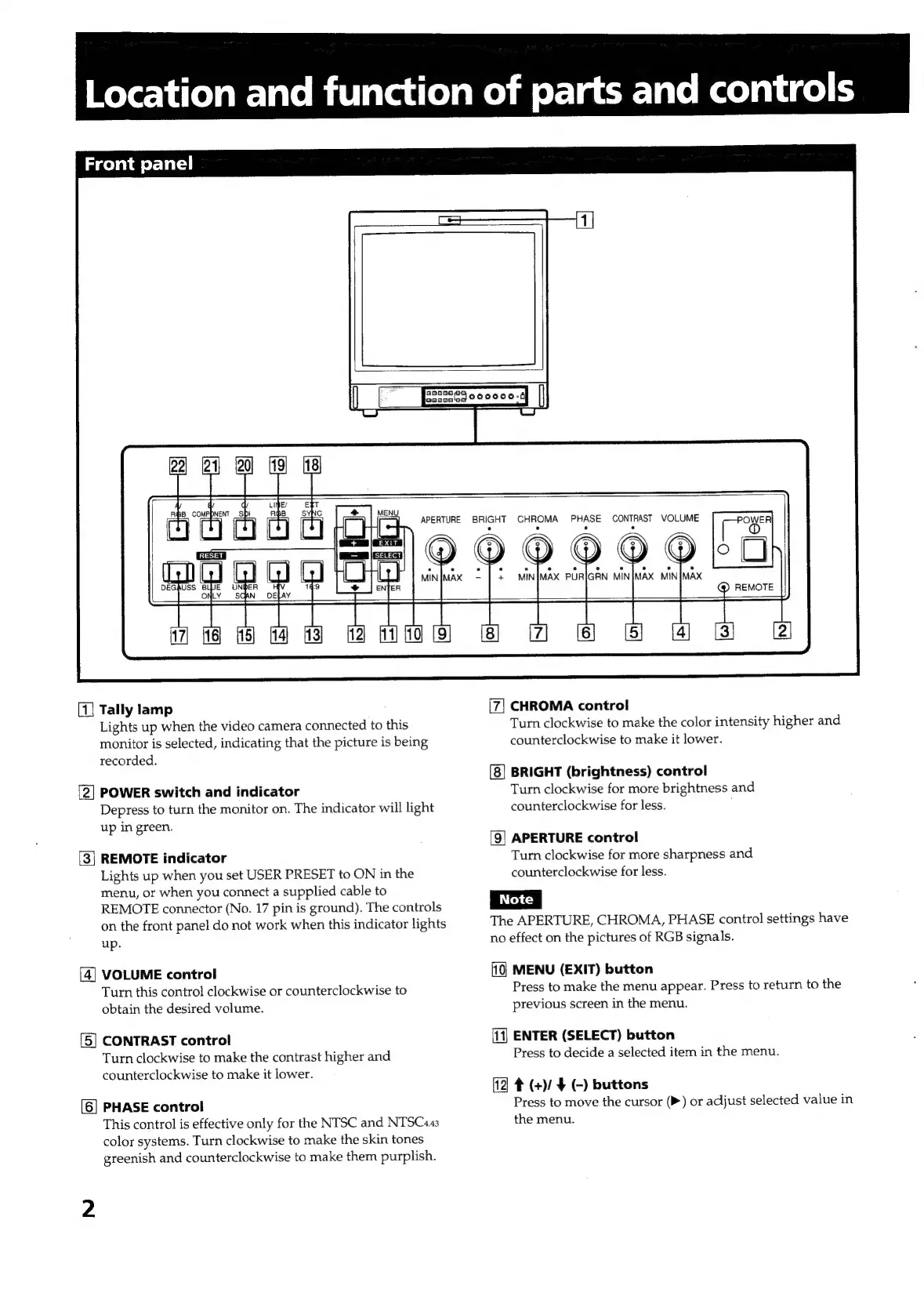

Sony Trinitron PVM-1454QM - Location and function of parts and controls; Front Panel Controls

Location
and
function
of
parts
and
controls
Front panel
5900005
ponooled CC 9900-A
RGB COMPPNENT _ SDI
A 44
RESET
DEGAUSS BLUE UN® =
ONLY —SQAN
+ MIN MAX PUR GRAN MIN MAX MIN MAX
@ REMOTE
[1| Tally lamp
Lights up when the video camera connected to this
monitor is selected, indicating that the picture is being
recorded.
[2] POWER switch and indicator
Depress to turn the monitor on. The indicator will light
up in green.
3} REMOTE indicator
Lights up when you set USER PRESET to ON in the
menu, or when you connect a supplied cable to
REMOTE connector (No. 17 pin is ground). The controls
on the front panel do not work when this indicator lights
up.
[4] VOLUME control
Turn this control clockwise or counterclockwise to
obtain the desired volume.
[5] CONTRAST control
Turn clockwise to make the contrast higher and
counterclockwise to make it lower.
[6] PHASE control
This control is effective only for the NTSC and NTSC13
color systems. Turn clockwise to make the skin tones
greenish and counterclockwise to make them purplish.
[7] CHROMA control
Turn
clockwise
to
make
the
color
intensity
higher
and
counterclockwise to make it lower.
[8] BRIGHT (brightness) control
Turn clockwise for more brightness and
counterclockwise for less. ,
(9] APERTURE control
Turn clockwise for more sharpness and
counterclockwise for less.
The
APERTURE,
CHROMA,
PHASE
control
settings
have
no
effect
on
the
pictures
of
RGB
signals.
10) MENU (EXIT) button
Press
to
make
the
menu
appear.
Press
to
return
to
the
previous screen in the menu.
11] ENTER (SELECT) button
Press to decide a selected item in the menu.
— ho
# (+)/ $ (-) buttons
Press
to
move
the
cursor
(P)
or
adjust
selected
value
in
the menu.
