12 (GB)
Peak inrush current
Hot switching inrush current, measured in
accordance with European
standard EN55103-1: 58A
(230V)
Operating conditions
Temperature 0 to +35°C (32 to 95°F)
Humidity 0 to 90% (no condensation)
Pressure 700 to 1060 hPa
Transport and storage conditions
Temperature –10 to +40°C (14 to 104°F)
Humidity 0 to 90%
Pressure 700 to 1060 hPa
Dimensions Approx. 217 x 217 x 352.5 mm
(w/h/d) (8
5
/8 × 8
5
/8 × 14 inches)
not incl. projecting parts and
controls
Mass Approx. 8.2 kg (18 lb 1 oz) not
incl. battery packs
Accessory supplied AC power cord (1)
Cable with an 8-pin connector (1)
(PVM-9045QM/9042QM only)
AC plug holders (1 set)
Tally plate (1) (PVM-9045QM/
9042QM only)
Design and specifications are subject to change
without notice.

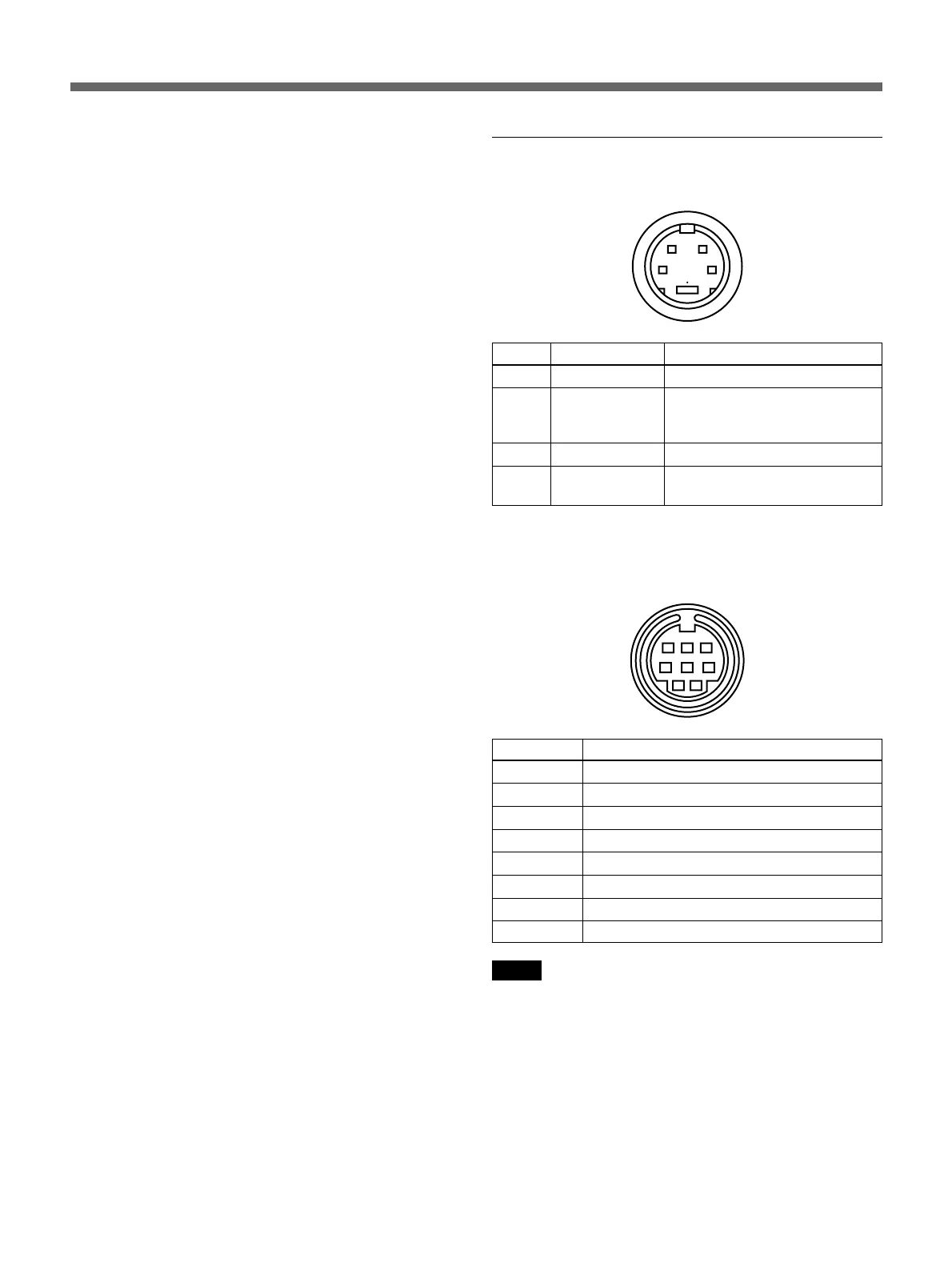

Pin Assignment
Y/C IN connector (4-pin mini DIN)
12
43
Pin No. Signal Description
1 Y-input 1 Vp-p, sync negative, 75 ohms
2 CHROMA 300 mVp-p (PAL), burst
sub-carrier-input Delay time between Y and
C: within 0 ±100 nsec., 75 ohms
3 GND for Y-input GND
4 GND for
GND
CHROMA-input
REMOTE connector (8-pin mini DIN)
(PVM-9045QM/9042QM only)
12
3
678
45
Pin No. Signal
1 16:9
2 H/V delay
3 GND
4 EXT SYNC
5 Tally
6 Underscan
7 A/B or RGB/Y R-Y B-Y
8 LINE/RGB
Notes
•For remote control, connect the pin of the desired
function to pin 3 (GND).
•For remote control, set the front button to OFF (the
switch is out).
Specifications
