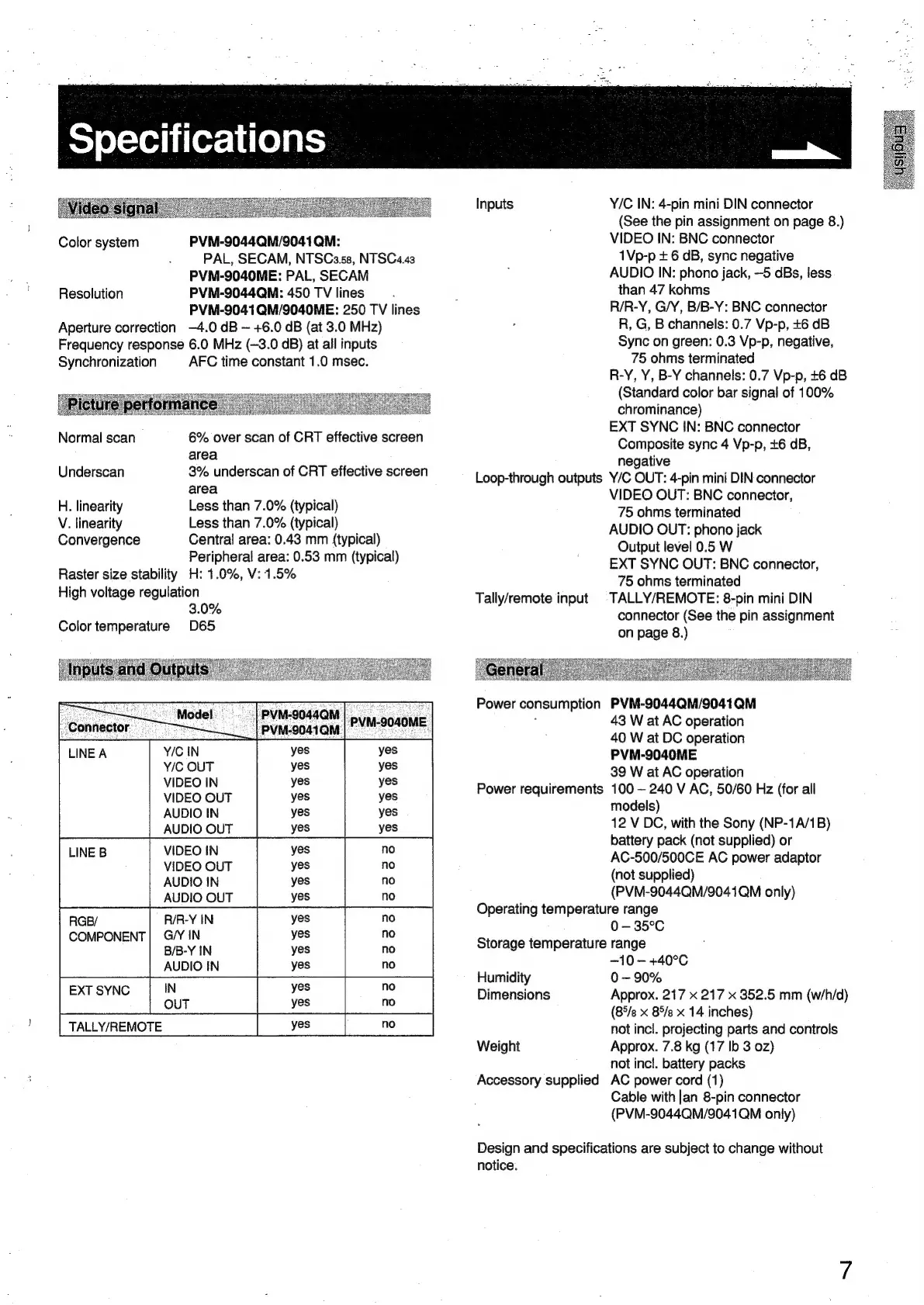

Sony Trinitron PVM-9044QM - Specifications; Video Signal and Picture Performance; Inputs, Outputs, and General Specs

Color system PVM-9044QM/9041QM:
PAL, SECAM, NTSC3.58, NTSC4.43
PVM-9040ME: PAL, SECAM
Resolution PVM-9044QM: 450 TV lines
PVM-9041QM/9040ME: 250 TV lines
Aperture correction 4.0 dB — +6.0 dB (at 3.0 MHz)
Frequency response 6.0 MHz (—3.0 dB) at all inputs
Synchronization
AFC time constant 1.0 msec.
Pines A ay
Normal scan 6% over scan of CRT effective screen
area
Underscan 3% underscan of CRT effective screen
area
H. linearity Less than 7.0% (typical)
V. linearity Less than 7.0% (typical)
Convergence Central area: 0.43 mm (typical)
Peripheral area: 0.53 mm (typical)
Raster size stability H: 1.0%, V: 1.5%
High voltage regulation
3.0%
Color temperature D65
| PVM-90440M |.
| PVM-90410M
Y/C OUT
VIDEO IN
VIDEO OUT
AUDIO IN
AUDIO OUT
VIDEO IN
VIDEO OUT
AUDIO IN
AUDIO OUT
R/R-Y IN
COMPONENT | G/Y IN
B/B-Y IN
AUDIO IN
EXT SYNC IN
OUT
TALLY/REMOTE yes
Inputs Y/C IN: 4-pin mini DIN connector
(See the pin assignment on page 8.)
VIDEO IN: BNC connector
1Vp-p + 6 dB, sync negative
AUDIO IN: phono jack, —5 dBs, less
than 47 kohms
R/R-Y, G/Y, B/B-Y: BNC connector
R, G, B channels: 0.7 Vp-p, +6 dB
Sync on green: 0.3 Vp-p, negative,
75 ohms terminated
R-Y, Y, B-Y channels: 0.7 Vp-p, +6 dB
(Standard color bar signal of 100%
chrominance)
EXT SYNC IN: BNC connector
Composite sync 4 Vp-p, +6 dB,
negative
Loop-through outputs Y/C OUT: 4-pin mini DIN connector
VIDEO OUT: BNC connector,
75 ohms terminated
AUDIO OUT: phono jack
Output level 0.5 W
EXT SYNC OUT: BNC connector,
75 ohms terminated
Tally/remote input © TALLY/REMOTE: 8-pin mini DIN
connector (See the pin assignment
on page 8.)
Power consumption PVM-9044QM/9041QM
2 43 W at AC operation
40 W at DC operation
PVM-9040ME
39 W at AC operation
Power requirements 100 — 240 V AC, 50/60 Hz (for all
models)
12 V DC, with the Sony (NP-1A/1B)
battery pack (not supplied) or
AC-500/500CE AC power adaptor
(not supplied)
(PVM-9044QM/9041QM only)
Operating temperature range
0 — 35°C
Storage temperature range
—10-—+40°C
Humidity 0-90%
Dimensions Approx. 217 x 217 x 352.5 mm (w/h/d)
(8°/s x 85/8 x 14 inches)
not incl. projecting parts and controls
Weight Approx. 7.8 kg (17 Ib 3 oz)
not incl. battery packs
Accessory supplied AC power cord (1)
Cable with |an 8-pin connector
(PVM-8044QM/9041QM only)
Design and specifications are subject to change without
notice.
