Sony UWP-D11 - Page 37

Specifications
37
Model available in Thailand and
Taiwan:
794 MHz to 806 MHz (E model)
Signal-to-noise-ratio
60 dB or more
Voice delay 0.35 ms
Deemphasis 50 μs
Reference frequency deviation
±5 kHz
Frequency response
40 Hz to 18 kHz
Distortion 0.9% or less (5 kHz modulation)
Tone signal In UWP-D compander mode:
32.382 kHz
In UWP compander mode: 32 kHz
In WL800 compander mode:
32.768 kHz
Indicators POWER, RF
Operating temperature
0 °C to 50 °C (32 °F to 122 °F)
0 °C to 35 °C (32 °F to 95 °F) when
charging
Storage temperature
–20 °C to +55 °C (–4 °F to +131 °F)
Supply voltage 3.0 V DC (two LR6/AA size alkaline
batteries)
5.0 V DC (supplied from USB
connector)
Battery life Approx. 6 hours (measured with two
Sony LR6/AA size alkaline batteries
at 25 °C (77 °F))

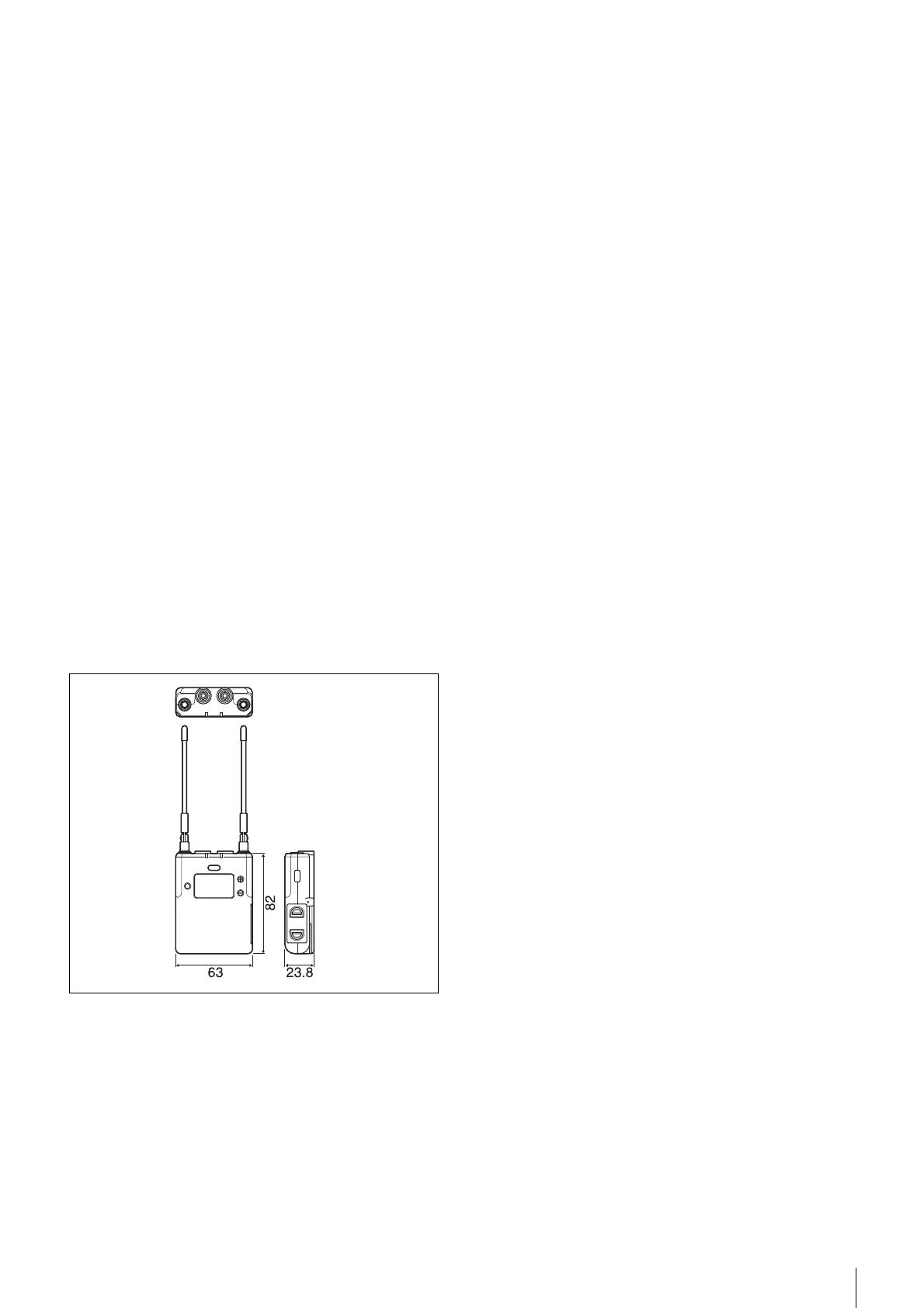

Dimensions
63 × 82 × 23.8 mm
(2
1
/
2
× 3
1
/
4
×
15
/
16
in.)
(Width / height / depth)
(excluding antenna)
Mass Approx. 136 g (4.8 oz)
(excluding batteries)
