Sony UWP-D11 - Plug-on Transmitter (UTX-P03) Specifications; Portable Diversity Tuner (URX-P03) Specifications

Specifications
36

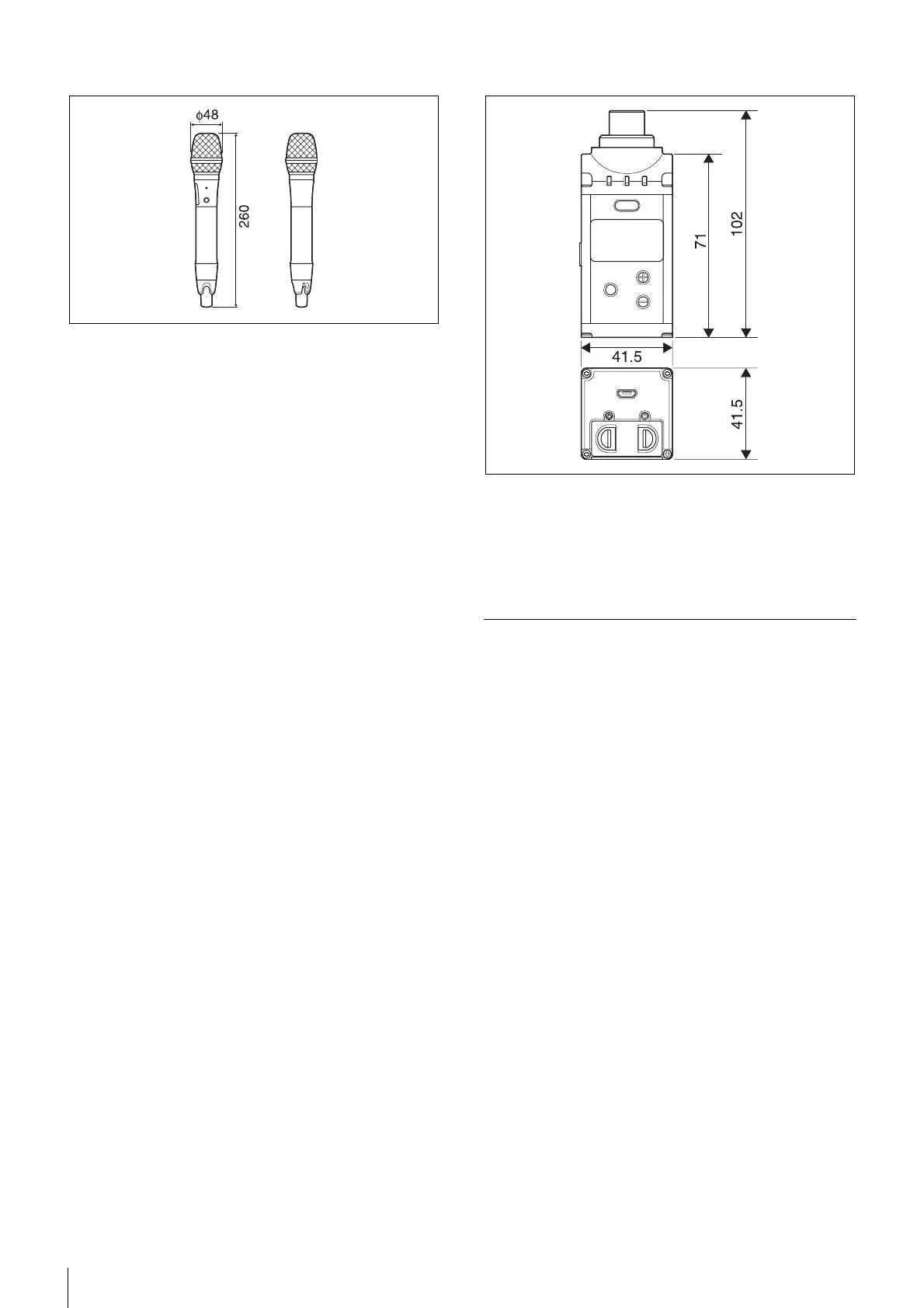

Dimensions
φ 48 × 260 mm (1
15
/
16
× 10
1
/
4
in.)
(Diameter / length)
Mass Approx. 260 g (9.2 oz)
(excluding batteries)
Plug-on transmitter (UTX-P03)
Reference deviation
±5 kHz
Reference audio input level
–60 dBV (at 0 dB attenuation level)
RF output level
40 mW/5 mW selectable (for model
available in USA)
30 mW/5 mW selectable (for model
available in Europe)
10 mW/2 mW selectable (for model
available in Thailand, Taiwan, and
Korea)
Frequency response
50 Hz to 18 kHz
Attenuation 0 dB to 48 dB (3 dB steps)
Audio input connector
XLR-3-11C type (female)
Indicator AF/PEAK, POWER/MUTING, +48V
Battery life Approx. 6 hours (measured with two
Sony LR6/AA size alkaline batteries
at 25 °C (77 °F))
Dimensions
41.5 × 102 × 41.5 mm
(1
11
/
16
× 4
1
/
8
× 1
11
/
16
in.)
(width / height / depth)
(including the audio input connector)
Mass Approx. 145 g (5.1 oz)
(excluding batteries)
Tuner
Portable diversity tuner (URX-P03)
Antenna 1/4 λ wavelength wire antenna
(angle-adjustable)
Squelch level 15 dBμ
Audio output level
–60 dBV
Audio output connector
3.5 mm diameter mini jack
Headphone output level
5 mW (16 Ω)
Reception method
True diversity method
Local oscillator Crystal-controlled PLL synthesizer
Receive frequencies
Models available in USA:
470 MHz to 542 MHz (UC14 model),
566 MHz to 608 MHz and 614 MHz
to 638 MHz (UC30 model),
638 MHz to 698 MHz (UC42 model)
Models available in Europe:
470 MHz to 542 MHz (CE21 model),
566 MHz to 630 MHz (CE33 model),
638 MHz to 694 MHz (CE42 model),
710 MHz to 782 MHz (CE51 model)
Model available in China:
710 MHz to 782 MHz (CN38 model)
Model available in Korea:
925 MHz to 937.5 MHz (KR Model)
