Connecting a Port Replicator
Connecting a Port Replicator
Attaching an optional port replicator enables you to connect additional peripherals to your computer, such as a printer and an
external display.

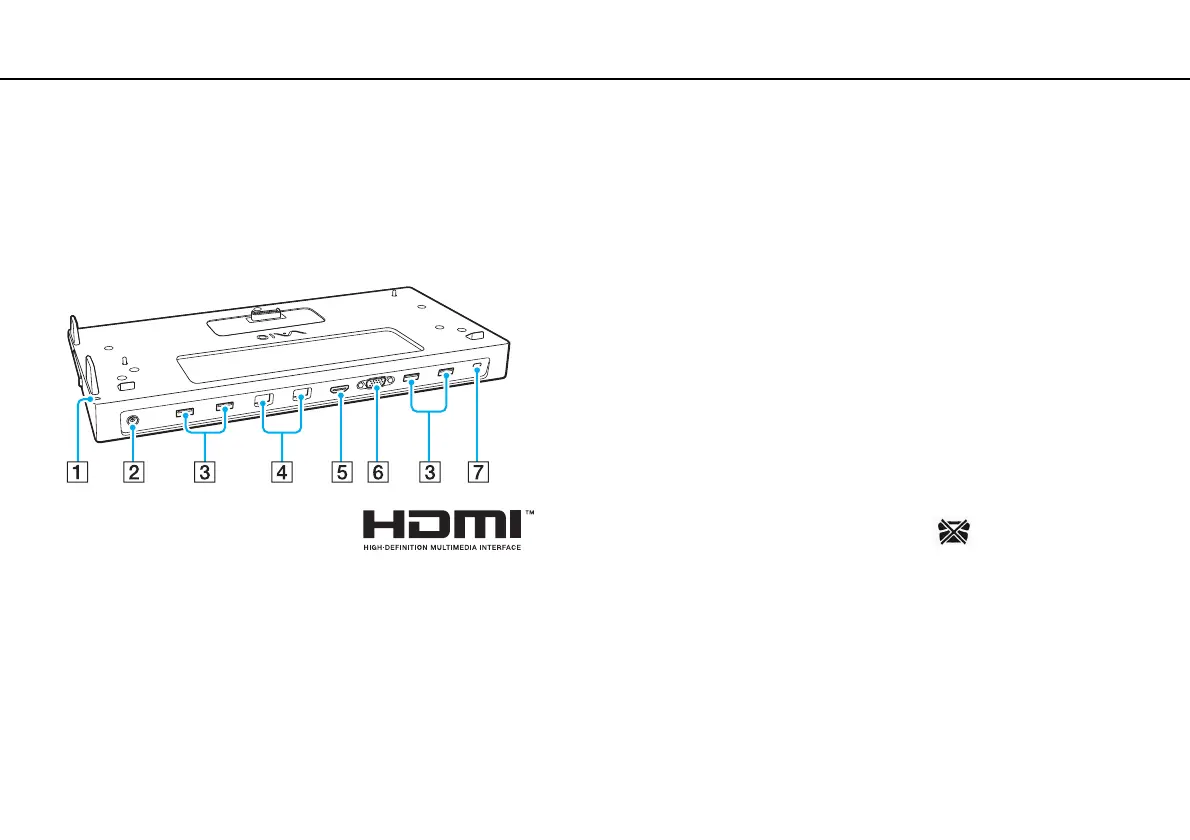

Locating Ports on the Port Replicator
!
While the port replicator is attached to you computer, you cannot use the following ports.
- HDMI output port on your computer
- MONITOR port on your computer
- LAN port on your computer
Simultaneous use of the MONITOR port and the HDMI output port on the port replicator is not possible.
A
DC IN indicator
Illuminates while the port replicator is powered.
B DC IN port (page 102)
C USB ports
*1
(page 119)
D LAN ports
*2
(page 67)
E HDMI output port (page 113)
F MONITOR port (page 110)
G Security slot
*1
Compliant with the USB 2.0 standard.
*2
The port replicator has a protective sticker covering each LAN port.
Connect a 10BASE-T, 100BASE-TX, 1000BASE-T cable to the LAN port.
Using an incorrect cable, such as a phone cable, may result in an electric
current overload that can cause a malfunction, excessive heat, or fire in the
LAN port.
