Getting Started >
Locating Controls and Ports

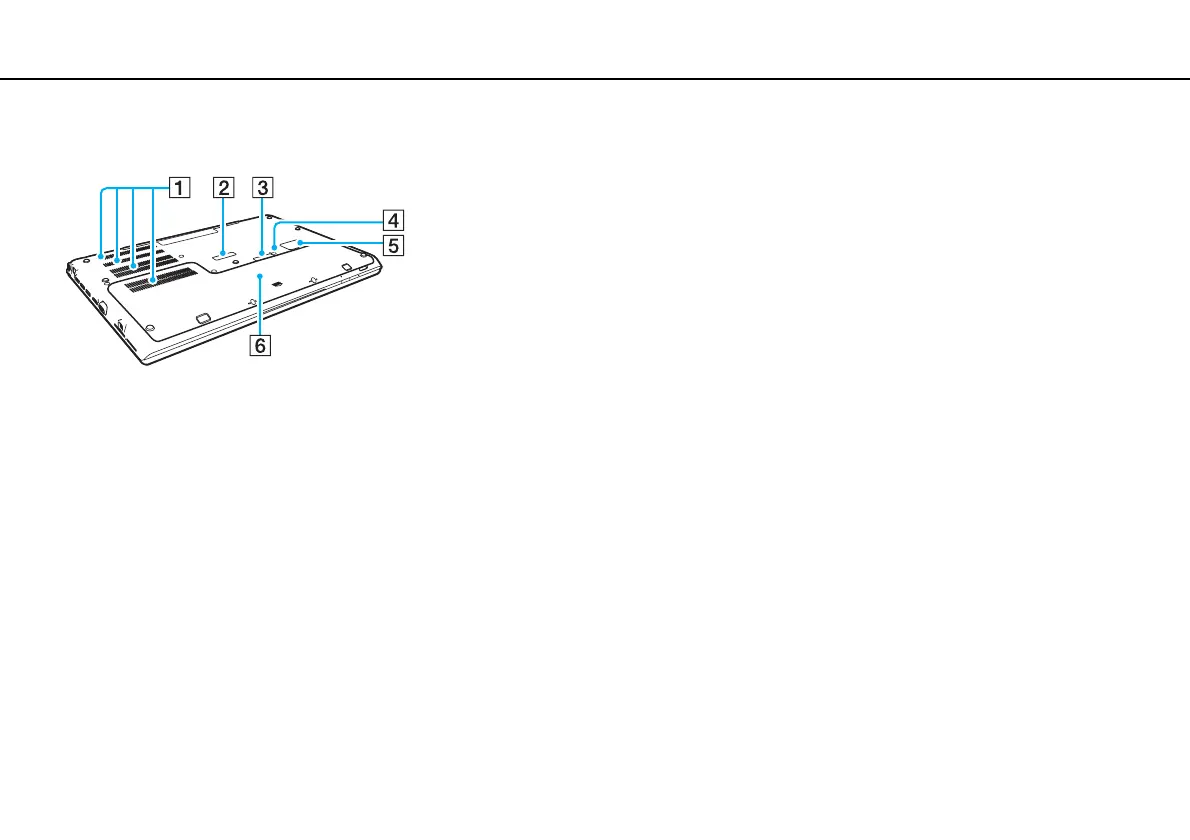

Bottom (with the bottom cover)
A Air vents
B Port replicator connector cover (page 102)
C Extended battery pack connector cover
*1
D Battery off button (page 27), (page 174)
E SIM card cover
*2
(page 76)
F Bottom cover
*1
For detailed instructions on how to attach an extended battery pack, see the
manual that came with your extended battery pack.
While the extended battery pack is attached to your computer, be sure to
keep the removed connector cover for future use.
*2
On selected models only.
