1. Overview: Location and Function of Parts
13

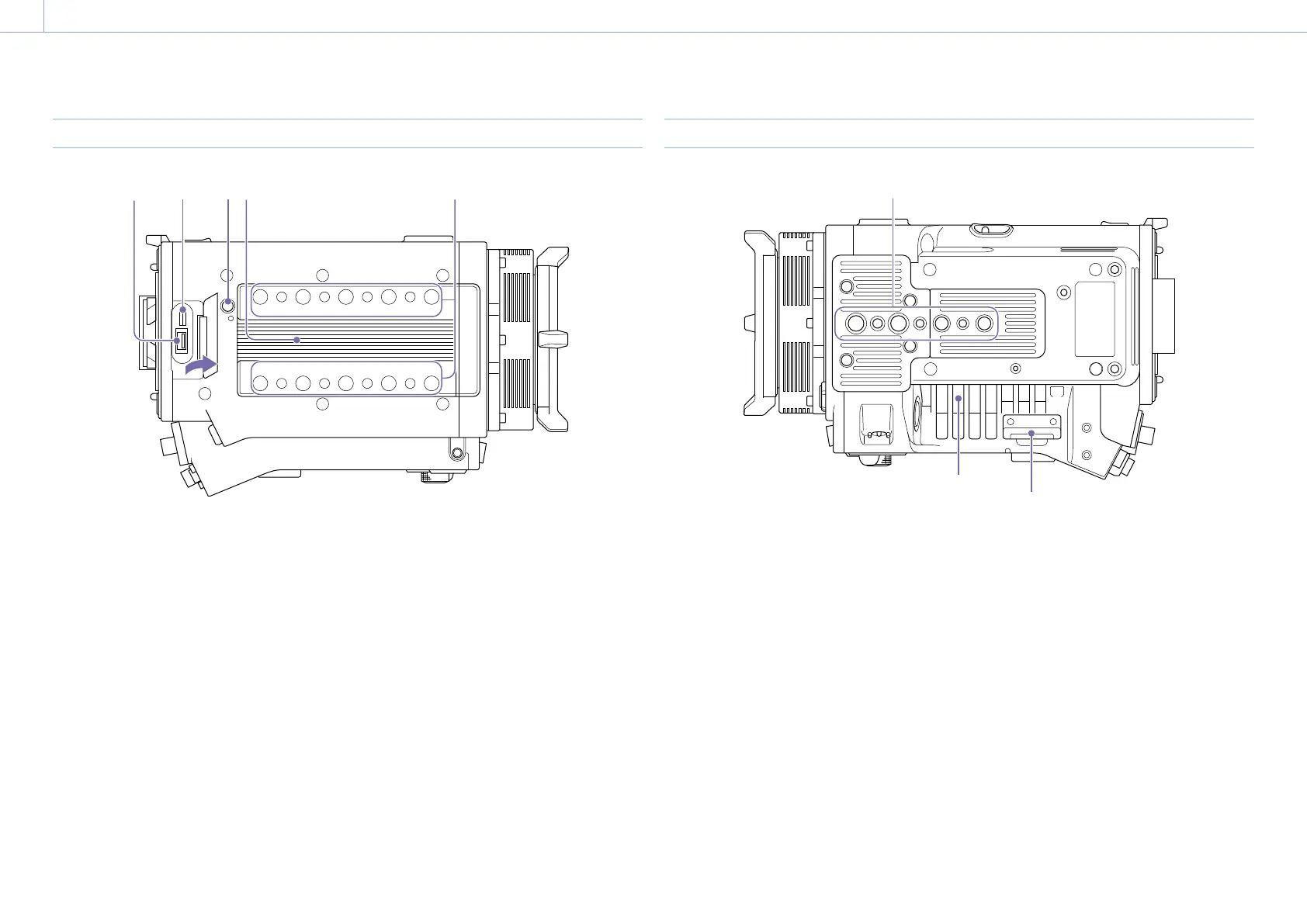

Top
2 3 4
1
5
1. External device connector
Used for camera wireless remote control
(page 100) by connecting a CBK-WA02
Wireless LAN Adaptor (option).
2. Manufacturer calibration terminal
Manufacturer terminal for calibration and
servicing (cannot be used by users).
3. Release button (page 20)
4. Handle/VF attachment mount
(page 20)
5. Accessory mounting screw holes
Type of screw: 1/4-20UNC (8)
Type of screw: 3/8-16UNC (10)
Length of engagement: 10 mm (
13
/
32
inch) or
less
Bottom
2
1
Air vent
1. Tripod plate attachment holes
Type of screw: 1/4-20UNC (2)
Type of screw: 3/8-16UNC (4)
Length of engagement: 9 mm (
3
/
8
inch) or less
2. SD card slot (page 34)
To Next Page
