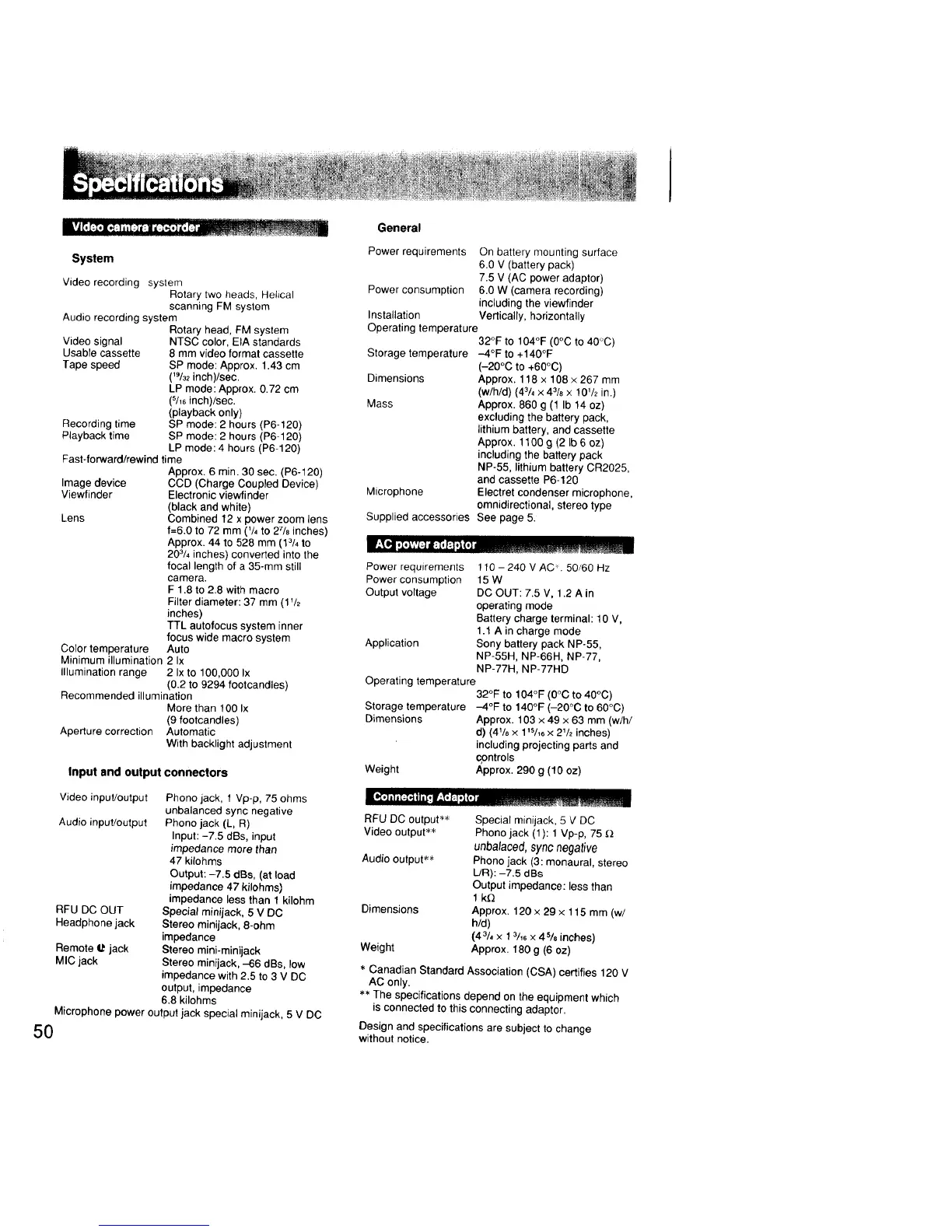

System
Video recording system
Rotary two heads, Hetical
scanning FM system
Audio recording system
Rotary head, FM system
Video signal NTSC color, EIA standards
Usable cassette 8 mm video format cassette
Tape speed SP mode: Approx. 1.43 cm
('9/32inch)/sec.
LP mode: Approx. 0.72 cm
(%6 inch)/sec.
(playback only)
Recording time SP mode: 2 hours (P6-120)
Playback time SP mode: 2 hours (P6-120)
LP mode: 4 hours (P6-120)
Fast-forward/rewind time
Approx. 6 min. 30 sec. (P6-120)
Image device CCD (Charge Coupled Device)
Viewfinder Electronic viewfinder
(black and white)
Lens Combined 12 x power zoom lens
f=6.0 to 72 mm ('/4 to 27/8inches)
Approx. 44 to 528 mm (13/4to
203/4 inches) converted into the
focal length of a 35-mm still
camera.
F 1.8 to 2.8 with macro
Filter diameter: 37 mm (1'/2
inches)
TTL autofocus system inner
focus wide macro system
Color temperature Auto
Minimum illumination 2 Ix
Illumination range 2 Ix to 100,000 Ix
(0.2 to 9294 footcandles)
Recommended illumination
More than 100 Ix
(9 footcandles)
Aperture correction Automatic
With backlight adjustment
Input and output connectors
Video input/output Phono jack, 1 Vp-p, 75 ohms
unbalanced sync negative
Audio input/output Phono jack (L, R)
Input: -7.5 dBs, input
impedance more than
47 kilohms
Output: -7.5 dBs, (at load
impedance 47 kilohms)
impedance less than 1 kilohm
RFU DC OUT Special minijack, 5 V DC
Headphone jack Stereo minijack, 8-ohm
impedance
Remote tt jack Stereo mini-minijack
MIC jack Stereo minijack, -66 dBs, low
impedance with 2.5 to 3 V DC
output, impedance
6.8 kilohms
Microphone power output jack special minijack, 5 V DC
50
General
Power requirements On battery mounting surface
6.0 V (battery pack)
7.5 V (AC power adaptor)
Power consumption 6.0 W (camera recording)
including the viewfinder
Installation Vertically, horizontally
Operating temperature
32°F to 104°F (0°C to 40°C)
Storage temperature -4°F to +140°F
(-20°C to +60°C)
Dimensions Approx. 118 x 108 x 267 mm
(w/h/d) (43/4 x 43/8 x 10V2 in.)
Mass Approx. 860 g (1 Ib 14 oz)
excluding the battery pack,
lithium battery, and cassette
Approx. 1100 g (2 Ib 6 oz)
including the battery pack
NP-55, lithium battery CR2025,
and cassette P6-120
Microphone Electret condenser microphone,
omnidirectional, stereo type
Supplied accessories See page 5.
Power requirements 110 - 240 V AC":. 50/60 Hz
Power consumption 15 W
Output voltage DC OUT: 7.5 V, 1.2 A in
operating mode
Battery charge terminal: 10 V,
1.1 A in charge mode
Application Sony battery pack NP-55,
NP-55H, NP-66H, NP-77,
NP-77H, NP-77HD
Operating temperature
32°F to 104°F (0°C to 40°C)
Storage temperature -4°F to 140°F (-20°C to 60°C)
Dimensions Approx. 103 x 49 x 63 mm (w/h/
d) (4% x 115/,6x 21/2inches)
including projecting parts and
controls
Weight Approx. 290 g (10 oz)
RFU DC output *'_ Special minijack, 5 V DC
Video outpuP_ Phono jack (1): 1 Vp-p, 75 _-_
unbalaced,syncnegative
Audio output '_'_ Phono jack (3: monaural, stereo
L/R): -7.5 dBs
Output impedance: less than
1 k_
Dimensions Approx. 120 x 29 x 115 mm (w/
bid)
(43/4 x 13/_5x 4% inches)
Weight Approx. 180 g (6 oz)
* Canadian Standard Association (CSA) certifies 120 V
AC only.
** The specifications depend on the equipment which
is connected to this connecting adaptor.
Design and specifications are subject to change
without notice.
