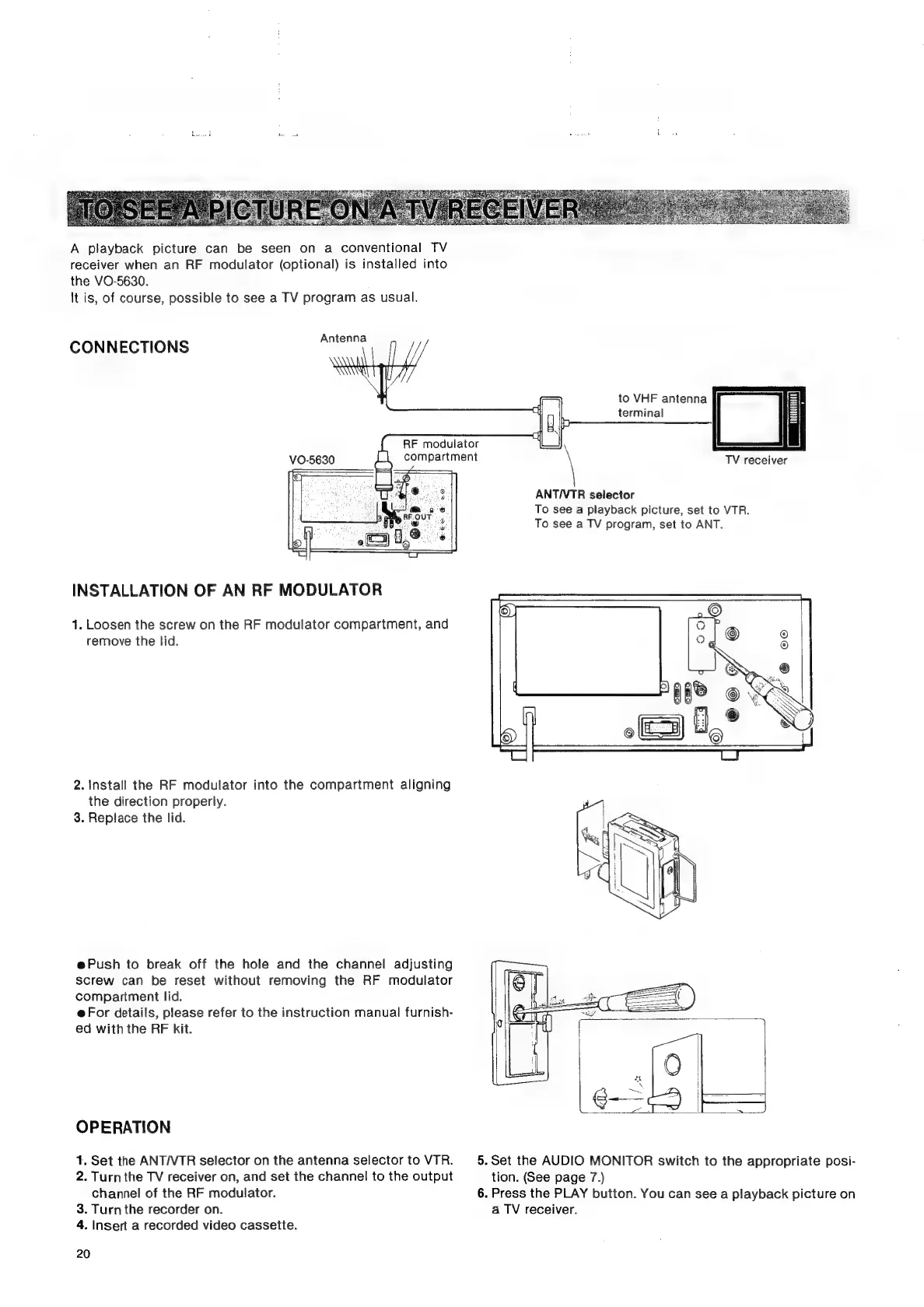

A playback picture can be seen on a conventional TV
receiver when an RF modulator (optional) is installed into
the VO-5630.
lt is, of course, possible to see a TV program as usual.
Antenna
CONNECTIONS
VO-5630
RF modulator
compartment
INSTALLATION OF AN RF MODULATOR
1. Loosen the screw on the RF modulator compartment, and
remove the tid.
2. Install the RF modulator into the compartment aligning
the direction properly.
3. Replace the lid.
e@Push to break off the hole and the channel adjusting
screw can be reset without removing the RF modulator
compartment lid.
eFor details, please refer to the instruction manual furnish-
ed with the RF kit.
OPERATION
1. Set the ANT/VTR selector on the antenna selector to VTR.
2. Turn the TV receiver on, and set the channel to the output
channel of the RF modulator.
3. Turn the recorder on.
4. Insert a recorded video cassette.
20
to VHF antenna
terminal
\ TV receiver
ANTIVTR selector
To see a playback picture, set to VTR.
To see a TV program, set to ANT.
5. Set the AUDIO MONITOR switch to the appropriate posi-
tion. (See page 7.)
6. Press the PLAY button. You can see a playback picture on
a TV receiver.
