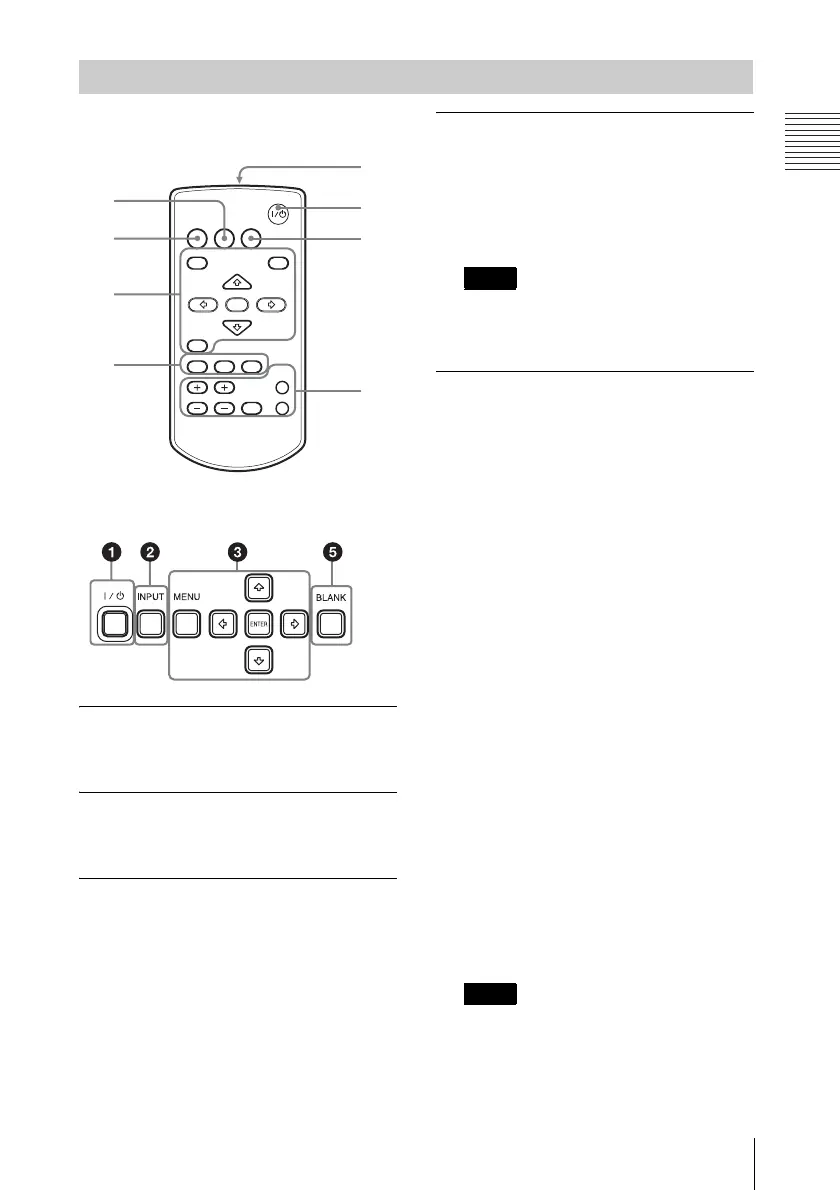

Location and Function of Controls
Overview
Remote Commander
Control Panel Keys
a Turning on the power/Going to
standby mode
?/1 (On/Standby) key
b Selecting an input signal
(page 10)
INPUT key
c Operating a menu (page 17)
MENU key
RESET key
ENTER /V/v/B/b (arrow) keys
RETURN key
d Adjusting the image (page 11)
ASPECT key (page 19)
KEYSTONE key (page 14)
PATTERN key (page 12)
APA (Auto Pixel Alignment) key
*
(page 14)
*
Use this key when inputting a computer
signal via the RGB input terminal
(INPUT A).
e Using various functions during
projecting
D ZOOM (Digital Zoom) +/– key
*1
Enlarges the image with the center of it
as a starting point while projecting.
1 Press the D ZOOM + key to display
the digital zoom icon on the projected
image.
2 Press the D ZOOM + key or the D
ZOOM – key repeatedly to change the
enlargement ratio. The image can be
enlarged up to 4 times.
Press the RESET key to restore the
previous image.
BLANK key
Cuts off the projected image
temporarily. Press again to restore the
previous image. Picture muting helps
reduce power consumption.
MUTING key
Mutes the audio output temporarily.
Press again to restore the previous
volume.
VOLUME +/– key
Adjusts the volume output.
FREEZE key
*2
Pauses a projected image. Press again to
restore the image.
*1: Use this key when inputting a
computer signal. But it may not be
used depending on the resolution of
the input signal.
Remote Commander and Control Panel Keys
2
3
4
5
6
1
4
7
INPUT
MENU
APA ECO MODE
RETURN
ASPECT
D ZOOM
KEYSTONE
ENTER
VOLUME
PATTERN
FREEZE
BLANK
MUTING
RESET
Note
Notes
To Next Page
