Connecting the Projector
Preparation
B Preparation
Connecting the Projector
• Make sure all the equipment is powered off when connecting the projector.
• Use the proper cables for each connection.
• Insert the cable plugs firmly; Loose connections may reduce performance of picture signals or
cause a malfunction. When pulling out a cable, be sure to grip it by the plug, not the cable itself.
• For more information, refer also to the instruction manuals of the equipment you are connecting.
• Use a no-resistance audio cable.
Connection with a computer is explained for each input signal.
INPUT A
INPUT B/INPUT C
• Only VPL-DX270/DX240/DW240 has the INPUT C terminal.
• Use HDMI-compatible equipment and cable(s) that have an HDMI logo on them.
• Use a high speed HDMI cable(s) on which the cable type logo is specified. (Sony products are
recommended.)
• The HDMI terminal of this projector is not compatible with DSD (Direct Stream Digital) Signal
or CEC (Consumer Electronics Control) Signal.
• The resolutions of the projected image may vary depending on the input terminals.
• It is recommended that you set the resolution of your computer to 1024 × 768 pixels (VPL-DX270/
DX240/DX220) or 1280 × 800 pixels (VPL-DW240) for the external monitor.
Notes

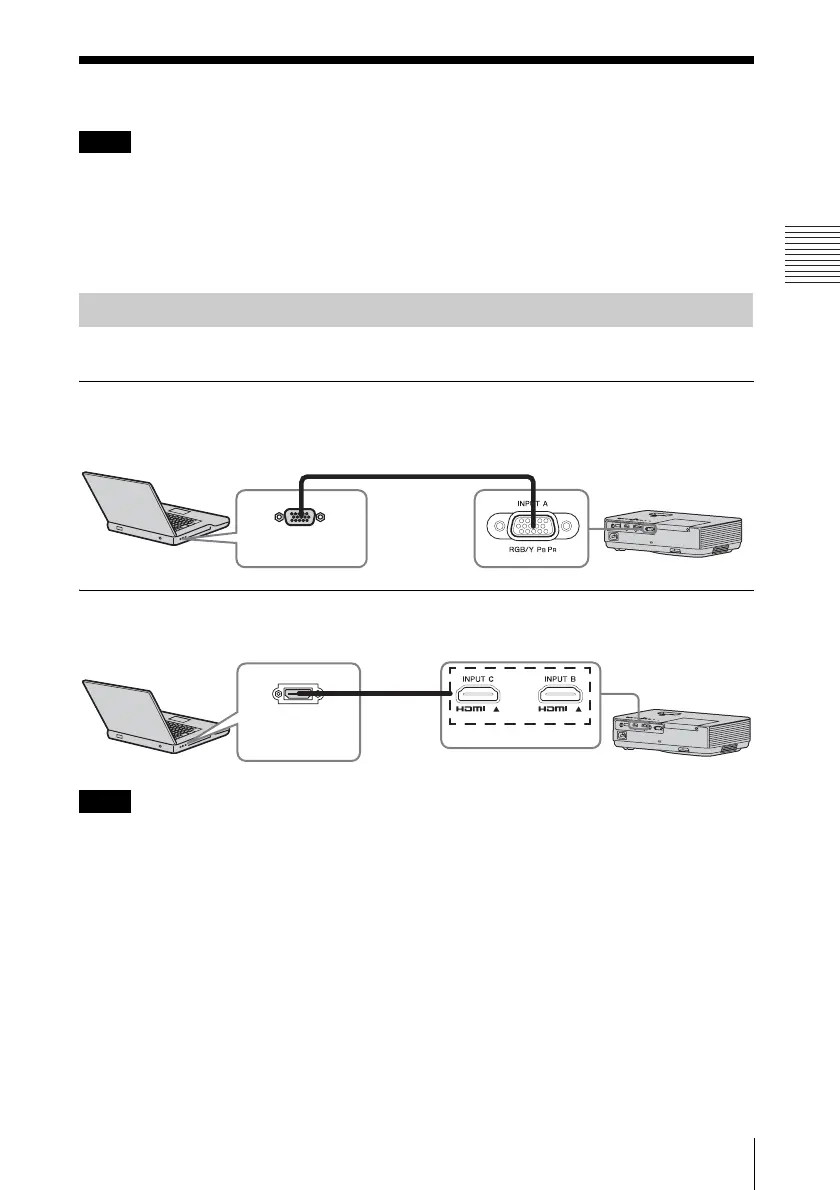

Connecting a Computer
For connecting a computer with an RGB output terminal.
RGB output
terminal
Mini D-sub 15-pin cable (supplied)
Computer
Notes
For connecting a computer with an HDMI output terminal.
HDMI output
terminal
HDMI
cable (not
supplied)
Computer
To Next Page
