2 of 5
C
ONNECTION
D
IAGRAMS

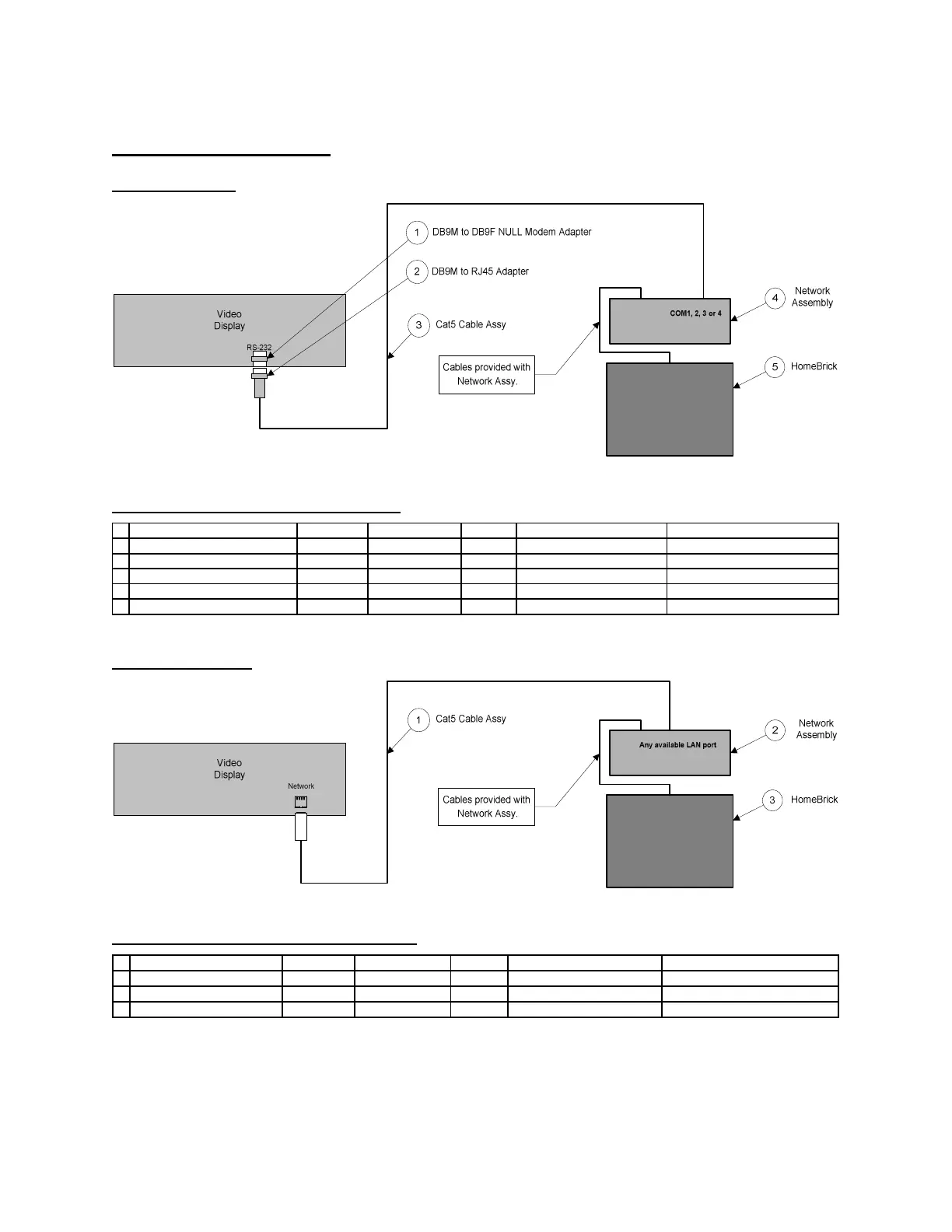

OPTION 1: RS-232
BILL OF MATERIALS FOR OPTION 1: RS-232
# Device Manufacturer Part Number Protocol Connector Type Notes
1 DB9M to DB9F NULL Modem Adapter Various RS-232 DB-9 Male X DB-9 Female Must be purchased separately
2 DB9M to RJ45 Adapter HomeLogic HA-CB-307 RS-232 DB-9 Male X RJ-45 Female
3 Cat5 Cable Assy. Installer N/A RS-232 RJ-45 Male X RJ-45 Male
4 Network Assembly HomeLogic HW-NA-18X4 RS-232 RJ-45 Female X DB-9 Female / USB
5 HomeBrick HomeLogic HW-HB-1080 RS-232 DB9 Male / USB
OPTION 2: ETHERNET
BILL OF MATERIALS FOR OPTION 2: ETHERNET
# Device Manufacturer Part Number Protocol Connector Type Notes
1 Cat5 Cable Assy. Installer N/A IP RJ-45 Male X RJ-45 Male
2 Network Assembly HomeLogic HW-NA-18X4 IP RJ-45 Female X RJ-45 Female
3 HomeBrick HomeLogic HW-HB-1080 IP RJ-45 Female
