Sony VTX-D800U - 9 Exploded View

REF.NO.
PART.NO
DESCRIPTION
REMARK

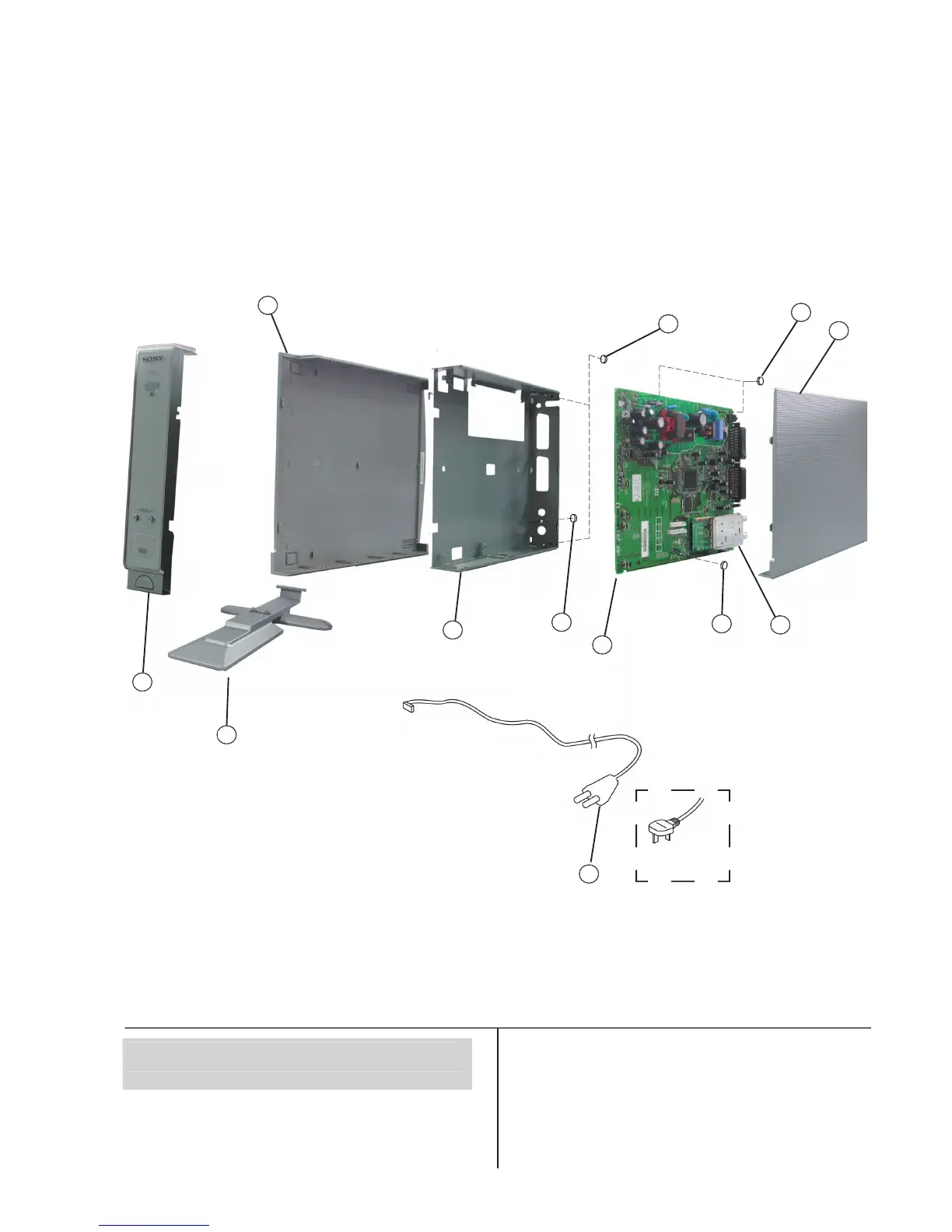

SECTION 9
EXPLODED VIEWS
NOTE :
The construction parts of an assembled part are
indicated with a collation number in the remarks
column.
Items marked “*” are not stocked
since they are seldom required for
routine service. Some delay should
be anticipated when ordering these
items.
REF.NO.
PART.NO
DESCRIPTION
REMARK
- 29
-
UK MODEL
ONLY
3
5
8
4
6
6
4-099-730-11
SCREW +BVTP
7 *A-1302-374-A COMPLETE PC BOARD, B
8 X-4041-804-2 ASSY, PANEL FRONT
9 4-094-926-21 CHASSIS
10 X-4041-542-1 ASSY, STAND
11 8-598-638-00 TUNER UNIT, DIGITAL BTD-DU606Z
1
2
6
7
10
10
10
10
9
11
11
11
1 £ 1-823-917-11 CORD, POWER SUPPLY (VTX-D800U)
£ 1-827-469-11 CORD, POWER SUPPLY (VTX-D800N/
VTX-D800E)
2 4-099-730-01 SCREW + BVTP 3X12 TYPE 2 TT(B)
3 4-096-294-01 COVER, TOP
4
X-4042-575-1
COVER, BOTTOM ASSY
5 7-682-546-04 SCREW +B 3X5
