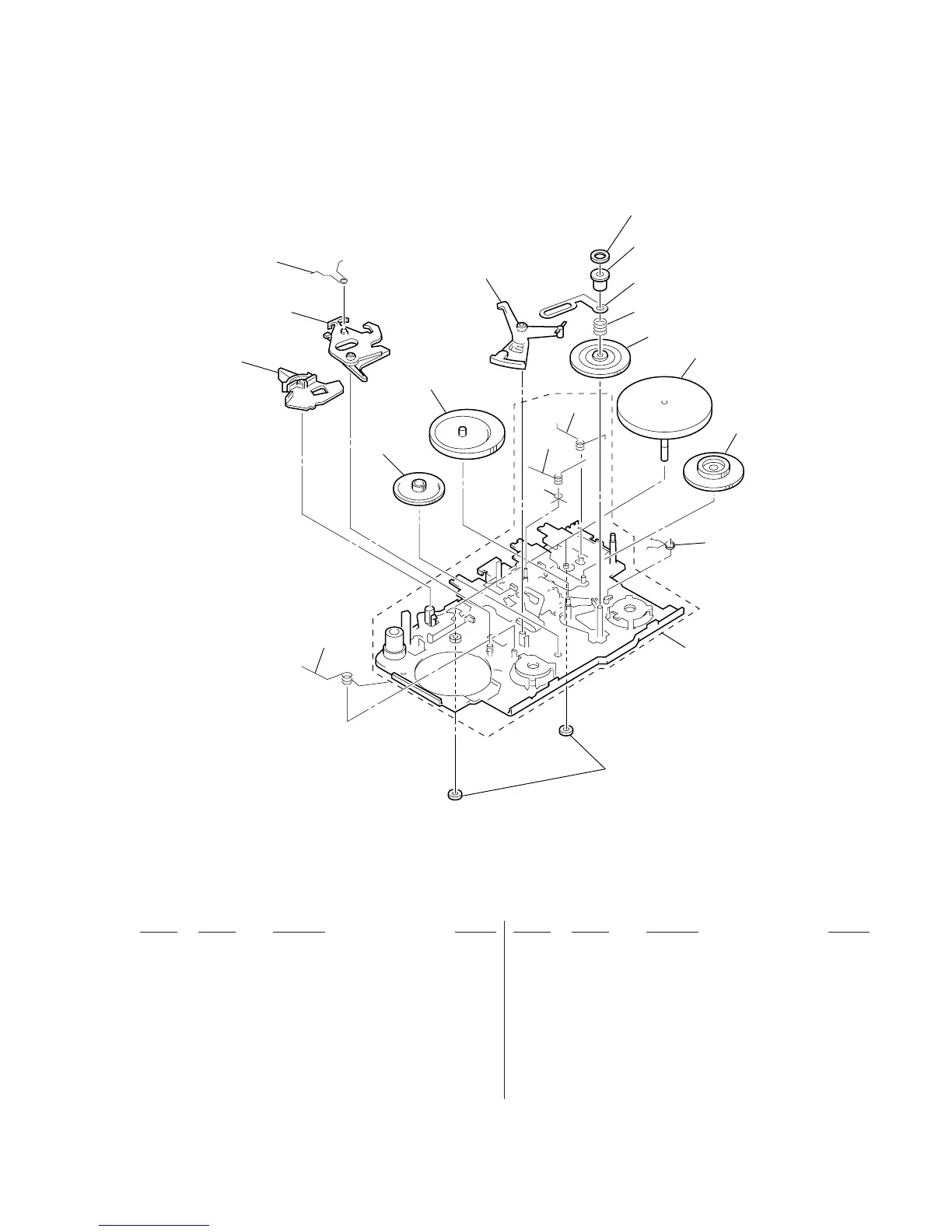

7-4. MECHANISM DECK SECTION-2
(MF-WMFS420-114)
257
258
253
262
263
264
265
266
267
268
269
270
251
252
261
260
259
255
254
256
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
251 3-921-797-01 WASHER
252 3-938-628-01 SPRING (PLAY-CP)
253 3-019-773-01 GEAR (AS)
254 3-021-786-01 LEVER (FS), D SELECTION
255 3-028-792-01 LEVER (BS), DETECTION
256 3-920-994-11 SPRING (D SELECTION)
257 X-3374-598-1 CLUTCH ASSY (S)
258 3-921-052-11 LEVER (A), DETECTION
259 3-025-454-01 SPRING (SW-S)
260 3-022-093-01 SPRING (FR-S)
261 3-022-094-01 SPRING (STOP-S)
262 3-728-091-01 WASHER, STOPPER
263 3-019-778-01 SLEEVE (MS)
264 3-921-335-03 WASHER, LEVER
265 3-920-990-02 SPRING (UD), COMPRESSION
266 3-019-774-01 GEAR (BS)
267 X-3372-619-1 WHEEL ASSY (SP), CAPSTAN
268 3-019-775-01 GEAR (DS)
269 3-933-324-01 SPRING (FR LEVER)
270 X-3378-364-1 CHASSIS ASSY (GL/LS-99)
