— 5 —

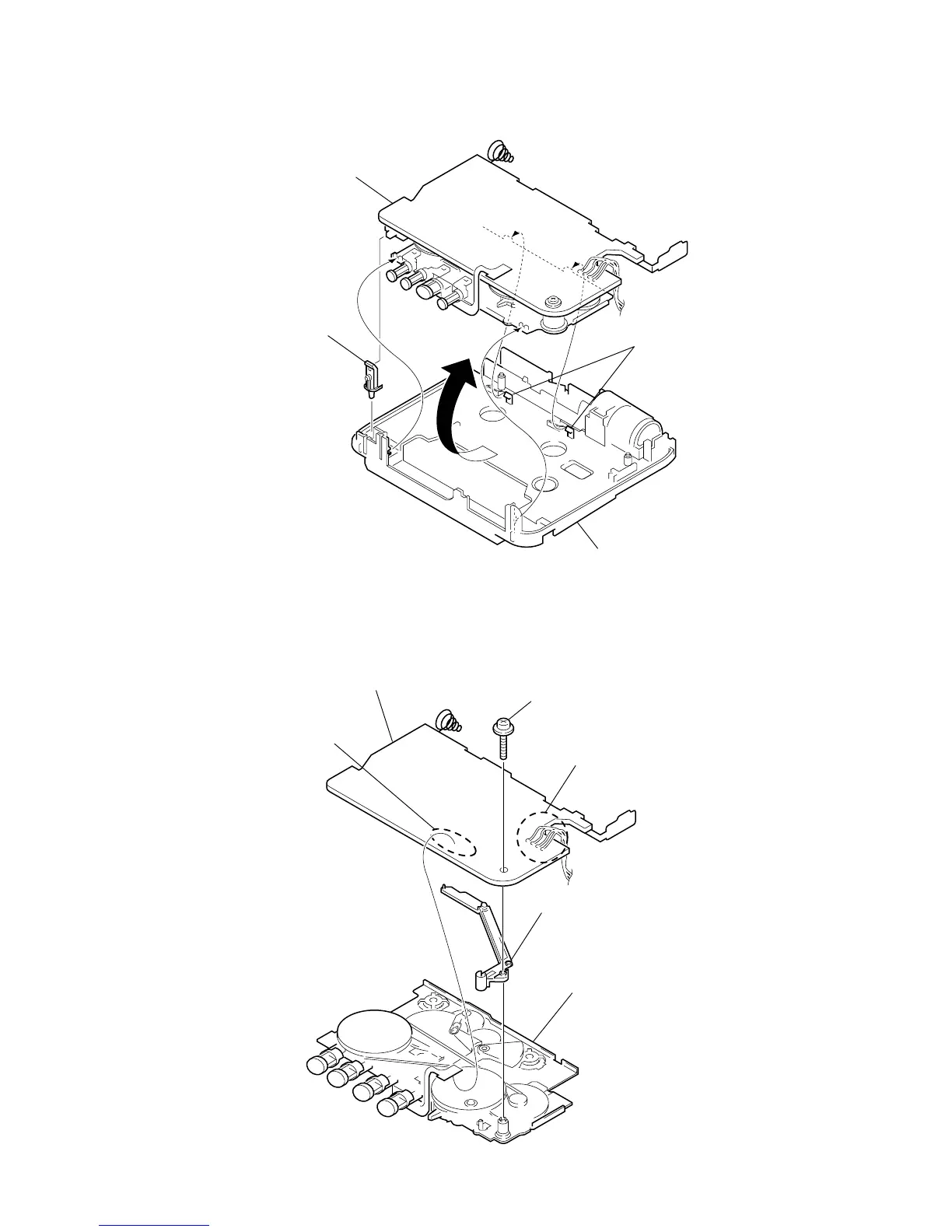

3-2. CHASSIS SUB ASSY
Main board
2
Knob (DX-Local)
1
Two claw
s
3
Chassis sub assy
3-3. MAIN BOARD AND MECHANISM DECK
3
Screw (M1.4 ) Toothed Lock
1
Remove the solder (fouf points)
5
Stopper (MD)
4
Main board
2
Remove the solder
6
Mechanism deck
