– 2 – – 4 –– 3 –
WM-FX453/FX455
US Model
WM-FX455
Canadian Model
WM-FX453
AEP Model
E Model
WM-FX453/FX455
SERVICE MANUAL
SUPPLEMENT - 1
File this Supplement with the Service Manual.
Subject :
r
5E MODEL HAS BEEN ADDED FOR WM-FX453
AND WM-FX455
r
CHANGE OF EXPLODED VIEWS
r
CORRECTION
(ECN-WM700712,WM700713,WM700940)
9-923-169-81
Sony Corporation
Personal A&V Products Company
97H0216-1
Printed in Japan © 1997.8
Published by Quality Engineering Dept.
(Shibaura)
r
MODEL ADDITION
1. The WM-FX453 (5E model) is approximately the same as the WM-FX453 (Canadian model).
2. The WM-FX455 (5E model) is approximately the same as the WM-FX455 (US model).
Consequently, only difference between 5E model and US, Canadian model are listed.
For other information, please refer to the previously issued WM-FX453/FX455 service manual (9-923-169-11).
r
DIFFERENCE PARTS LIST
EXPLODED VIEWS (Service Manual See page 19)
Ref. No. Part No. Description Remark
14 A-3016-972-A MAIN BOARD, COMPLETE (FX455 : 5E)
14 A-3016-973-A MAIN BOARD, COMPLETE (FX453 : 5E)
ELECTRICAL PARTS LIST (Service Manual See page 21–24)
Ref. No. Part No. Description Remark
A-3016-972-A MAIN BOARD, COMPLETE (FX455 : 5E)
A-3016-973-A MAIN BOARD, COMPLETE (FX453 : 5E)
********************************************
R107 1-216-795-11 METAL GLAZE 6.8 5% 1/16W (5E)
R108 1-216-841-11 METAL CHIP 47K 5% 1/16W (5E)
R207 1-216-795-11 METAL GLAZE 6.8 5% 1/16W (5E)
R208 1-216-841-11 METAL CHIP 47K 5% 1/16W (5E)
MAIN
ACCESSORIES & PACKING METERIALS (Service Manual See page 24)
Ref. No. Part No. Description Remark
8-953-130-90 HEADPHONE MDR-E801//K SET (5E)
3-858-915-81 MANUAL, INSTRUCTION
(SPANISH, PORTUGUESE) (5E)
• Abbreviation
5E : Indication of country of origin, radio section : DX/LOCAL switch
r

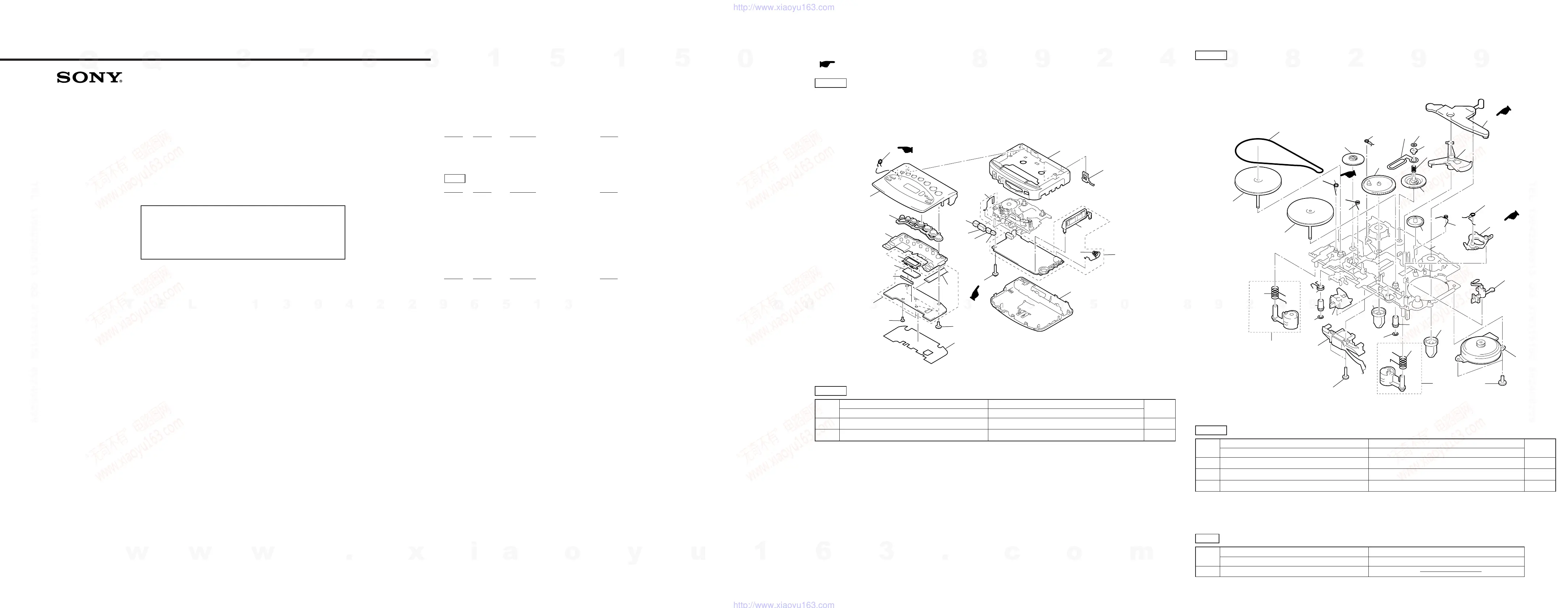

CHANGE OF EXPLODED VIEWS
: Changed portion
Page 19
6-1. CABINET SECTION
1
2
4
3
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
ND701
FPC1
L1
21
Former Type New type
Ref. No. Part No. Description Part No. Description Remark
9 3-921-954-01 SPRING (LID UP)
16 3-008-599-01 SCREW (M1.4), TOOTH (WH)
3-015-892-01 SPRING (LID UP) Changed
3-015-285-01 SCREW (M1.4), TOOTHED LOOK (WH) Changed
Page 19
r
CORRECTION
INCORRECT CORRECT
Ref. No. Part No. Description Part No. Description
C4 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V
MAIN
Former Type New type
Ref. No. Part No. Description Part No. Description Remark
111 3-920-992-01 SPRING (STOP)
124 3-921-022-01 LEVER (B), DETECTION
130 –––––––––––––––––
3-015-436-01 SPRING (STOP) Changed
3-929-419-01 LEVER (BR), DETECTION Changed
3-016-420-01 STOPPER (L) Added
Page 20
6-2. MECHANISM SECTION
(MF-WMFX453-114)
HRP901
M901
not
supplied
101
102
103
103
104
105
105
106
107
107
108
106
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
109
130
Page 20
