WM-FX453/FX455
IC601 LB1979V-TLM
r

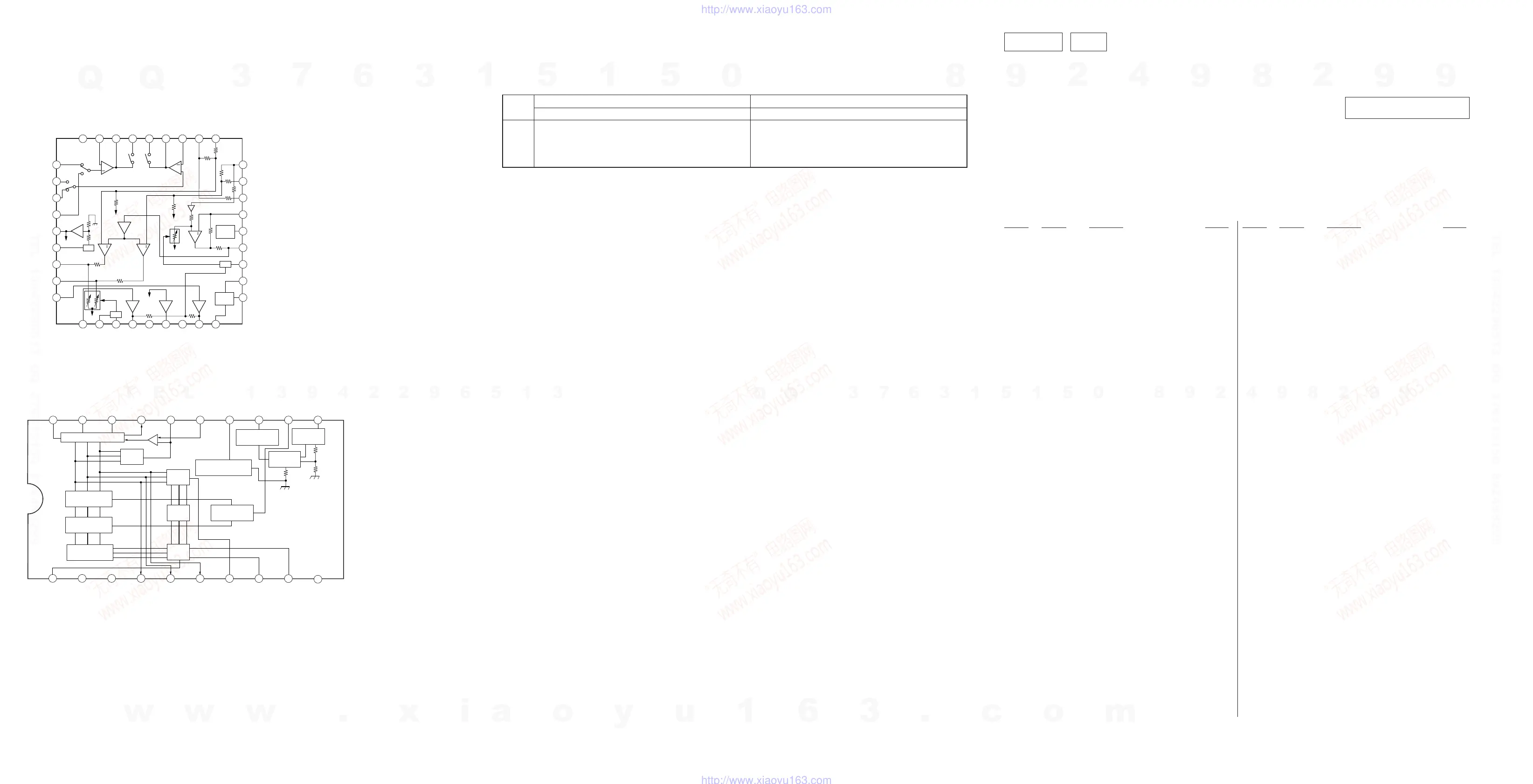

IC BLOCK DIAGRAMS
IC301 LA4582CM
192021222324252627
+
+
+
+
+++
++
+
+
987654321
28
29
30
31
32
33
34
35
36
18
17
16
15
14
13
12
11
10
SYS
CONT
LOW
BOOST
DET
DET
R.F
REF
REF
REF
REF
REF
REF
PRE 1PRE 2
MIX.2MIX.1
PWR.2PWR.CPWR.1
LOW BOOST
IN2
H.P 2
L.P 1
L.P 2
LOW BOOST
NF
LOW BOOST
SW
DET1 OUT
FWD/REW
SW
PRE MUTE
SW
PRE GND
PRE NF2
PRE OUT2
PRE OUT1
SW OUT2
SW OUT1
PRE NF 1
LOW BOOST IN1
H.P 1
PRE REV
IN2
PRE REV
IN1
PRE FWD
IN1
PRE FWD
IN2
VREF
R.F REF
MIX OUT1
MIX OUT2
POWER
IN2
POWER IN1
DET2 OUT
DET2 IN
POWER OUT1
POWER GND
POWER OUTC
VCC
POWER OUT2
POWER MUTE SW
2
3
5
4
6
7
8
9
10
1
11
12
13
14
15
16
17
1819
20
SOFT
SW
MIX
CURRENT/MOTIVE
LOGIC
WAVEFORM
DETECT
PRE
DRIVER
OUTPUT
CORRENT DETECT
SPEED
DETECT
REFERENCE VOLTAGE
FOR SPEED CONTROL
POWER SUPPLY
BIAS
REFERENCE
VOLTAGE
OSCILLATOR
CIRCUIT
MOTIVE POWER
DETECT
+
–
FC GND
FC
RI
OUT
VSP
IN+
VREF
S/S
COM
OSC
WB
VCC
NC
U OUT
V OUT
W OUT
P-GND
VB
UB
GND
r
CHANGE OF EXPLODED VIEWS PARTS LIST
(Supplement-2 See page 2)
Ref. No. Part No. Description Part No. Description
Before Change After Change
3 A-3016-913-A DISPLAY BOARD, COMPLETE (US, CND,5E)
14 A-3016-914-A MAIN BOARD, COMPLETE (FX453: US,CND)
A-3021-161-A DISPLAY BOARD, COMPLETE (FX453 : US)
A-3016-913-A DISPLAY BOARD, COMPLETE (CND, 5E, FX455: US)
A-3016-914-A MAIN BOARD, COMPLETE (FX453: CND)
A-3021-170-A MAIN BOARD, COMPLETE (FX453 : US)
NOTE :
• Due to standardization, replacements in the
parts list may be different from the parts
specified in the diagrams or the components
used on the set.
• -XX, -X mean standardized parts, so they
may have some difference from the original
one.
• RESISTORS
All resistors are in ohms
METAL : Metal-film resistor
METAL OXIDE :Metal oxide-film resistor
F : nonflammable
• Items marked “ * ”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• SEMICONDUCTORS
In each case, u : µ , for example :
uA.... : µ A.... , uPA.... : µ PA....
uPB.... : µ PB.... , uPC.... : µ PC....
uPD.... : µ PD....
• CAPACITORS
uF : µ F
• COILS
uH : µ H
When indicating parts by reference num-
ber, please include the board.
r
ELECTRICAL PARTS LIST (WM-FX453 : US model only)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
A-3021-161-A DISPLAY BOARD, COMPLETE (FX453 : US)
************************
* 1-694-218-31 CONNECTOR, RUBBER
* 3-007-090-01 HOLDER, LCD
< CAPACITOR >
C701 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C702 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C703 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C705 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C706 1-104-847-11 TANTAL. CHIP 22uF 20% 4V
C707 1-162-920-11 CERAMIC CHIP 27PF 5% 50V
C708 1-162-917-11 CERAMIC CHIP 15PF 5% 50V
C709 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C710 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C711 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C712 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C714 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C718 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
< CONNECTOR >
CN701 1-573-925-11 CONNECTOR, FFC/FPC (ZIF) 16P
< FLEXIBLE BOARD >
FPC1 1-655-731-11 PC BOARD, TUNER FLEXIBLE
< IC >
IC701 8-759-564-19 IC uPD17072GB-555-1A7
< COIL >
L701 1-412-995-21 INDUCTOR 22uH
< LIQUID CRYSTAL DISPLAY >
ND701 1-801-520-11 DISPLAY PANEL, LIQUID CRYSTAL
< TRANSISTOR >
Q701 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q702 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q703 8-729-423-55 TRANSISTOR 2SC3931-D
< RESISTOR >
R701 1-216-842-11 METAL CHIP 56K 5% 1/16W
R702 1-216-845-11 METAL CHIP 100K 5% 1/16W
R703 1-216-815-11 METAL CHIP 330 5% 1/16W
R704 1-216-801-11 METAL CHIP 22 5% 1/16W
R706 1-216-833-11 METAL CHIP 10K 5% 1/16W
R707 1-216-833-11 METAL CHIP 10K 5% 1/16W
R708 1-216-833-11 METAL CHIP 10K 5% 1/16W
R709 1-216-833-11 METAL CHIP 10K 5% 1/16W
R710 1-216-833-11 METAL CHIP 10K 5% 1/16W
R712 1-216-833-11 METAL CHIP 10K 5% 1/16W
R715 1-216-841-11 METAL CHIP 47K 5% 1/16W
R716 1-216-845-11 METAL CHIP 100K 5% 1/16W
< VIBRATOR >
X701 1-577-262-11 VIBRATOR, CRYSTAL (75kHz)
**************************************************************
A-3021-170-A MAIN BOARD, COMPLETE (FX453 : US)
*********************
3-007-094-01 TERMINAL (+), BATTERY
3-007-095-01 TERMINAL (-), BATTERY
< CAPACITOR >
C3 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C4 1-162-934-11 CERAMIC CHIP 3PF 0.25PF 50V
C5 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C6 1-162-995-11 CERAMIC CHIP 0.022uF 50V
C8 1-162-995-11 CERAMIC CHIP 0.022uF 50V
C9 1-162-918-11 CERAMIC CHIP 18PF 5% 50V
C10 1-164-392-11 CERAMIC CHIP 390PF 5% 50V
C12 1-162-962-11 CERAMIC CHIP 470PF 10% 50V
C13 1-162-997-11 CERAMIC CHIP 10PF 0.5PF 50V
C14 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C15 1-162-995-11 CERAMIC CHIP 0.022uF 50V
C16 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C17 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C18 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C19 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C20 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V
C21 1-126-160-11 ELECT 1uF 20% 50V
C22 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C23 1-104-700-11 CERAMIC CHIP 0.027uF 10% 16V
