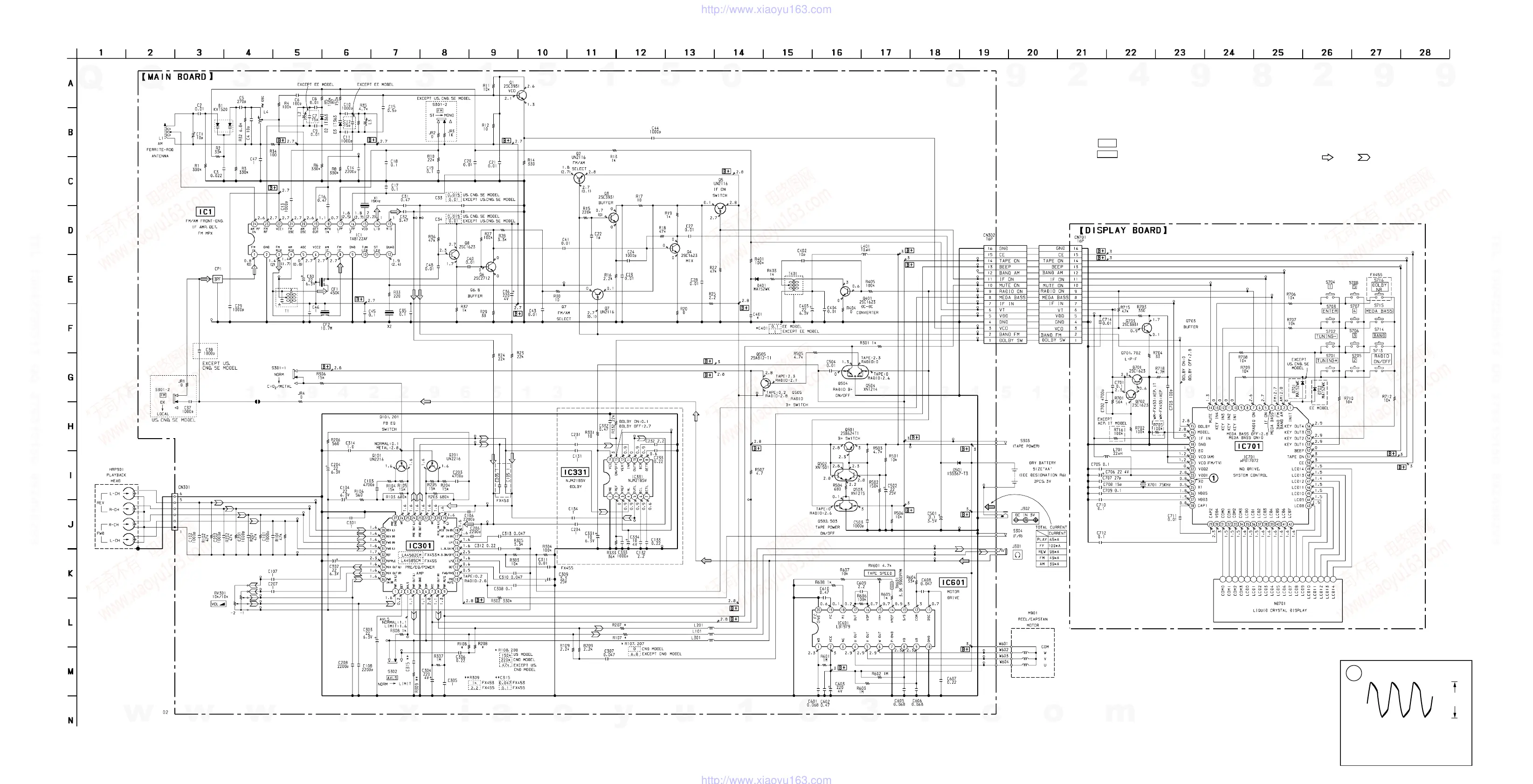

SCHEMATIC DIAGRAM
WM-FX453/FX455
Note :
• All capacitors are in µF unless otherwise noted. pF: µµF
50WV or less are not indicated except for electrolytics and
tantalums.
• All resistors are in and
1
/
4
W or less unless otherwise
specified.
• ¢ : internal component.
•
B +
: B+ Line
•
: adjustment for repair.
• Power voltage is dc 3V and fed with regulated dc power supply
from external power voltage jack (J302).
• Voltage and waveforms are dc with respect to ground under
no-signal ( detuned ) conditions.
no mark : FM (RADIO SECTION), PLAY (TAPE SECTION)
( ) : AM
r
WAVEFORM
1
IC701 @¢
1.83Vp-p
VOLT/DIV : 0.5V AC
TIME/DIV : 5µsec
75kHz
• Voltages are taken with a VOM ( Input impedance
10M ). Voltage variations may be noted due to
normal production tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal
production tolerances.
• Circled numbers refer to waveforms.
• Signal path.
: FM : PB
