Sony WM-DDIII - Section 1: Mechanical Operation and Disassembly; Mechanical Operation Overview; Disassembly Procedure

SECTION 1
MECHANICAL OPELATION
MECHANICAL OPERATION in this set is the same
as that of model WM-DD, so refer to WM-DD service
manual previously issued for MECHANICAL OPERA¬
TION.
SECTION 2
DISASSEMBLY

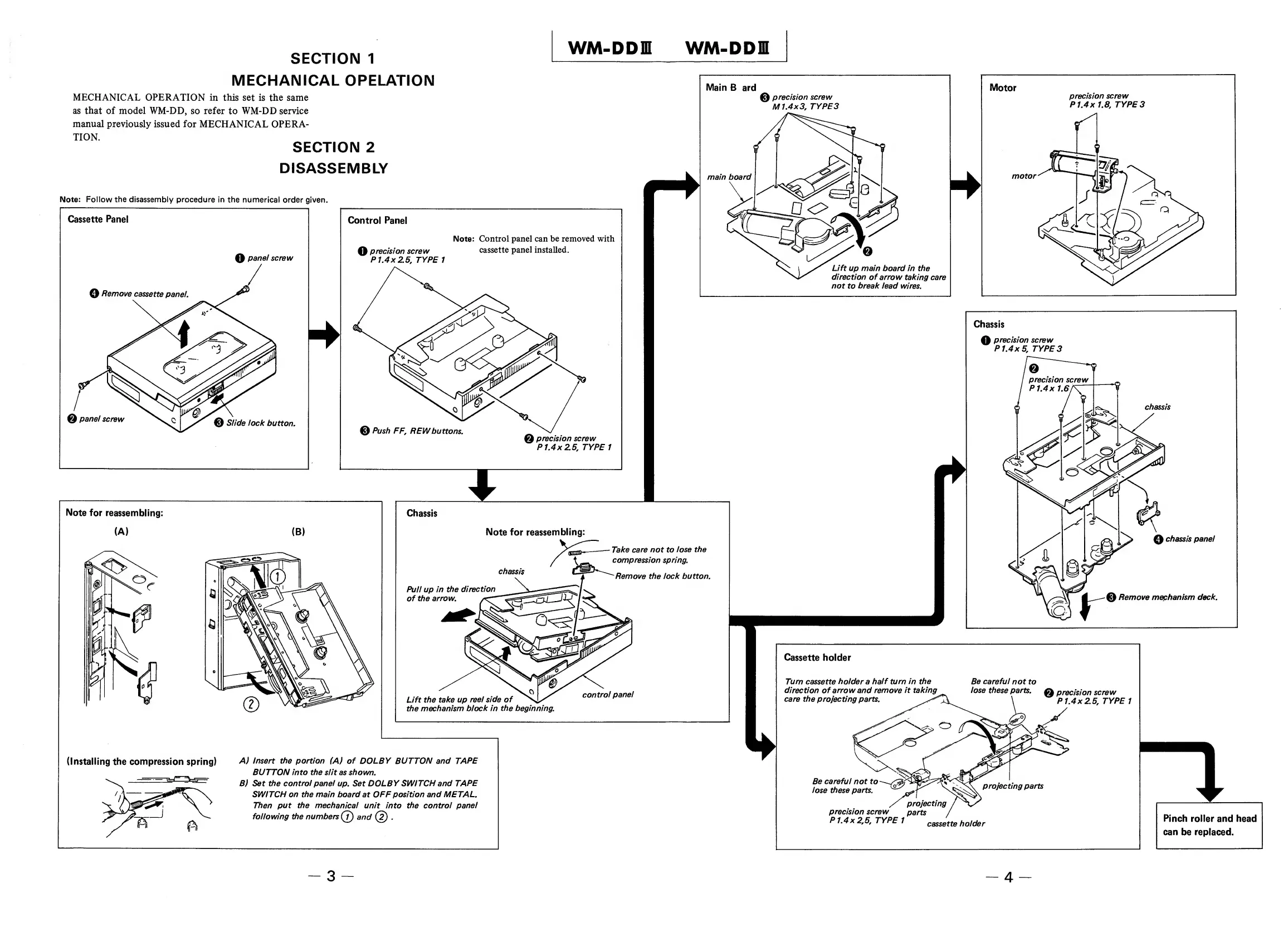

Note: Follow the disassembly procedure in the numerical order given.
WM-DDIK WM-DDI
Cassette Panel
Q Remove cassette panel.
Main B ard
Motor
precision screw
P 1.4 x 1.8l TYPE 3
