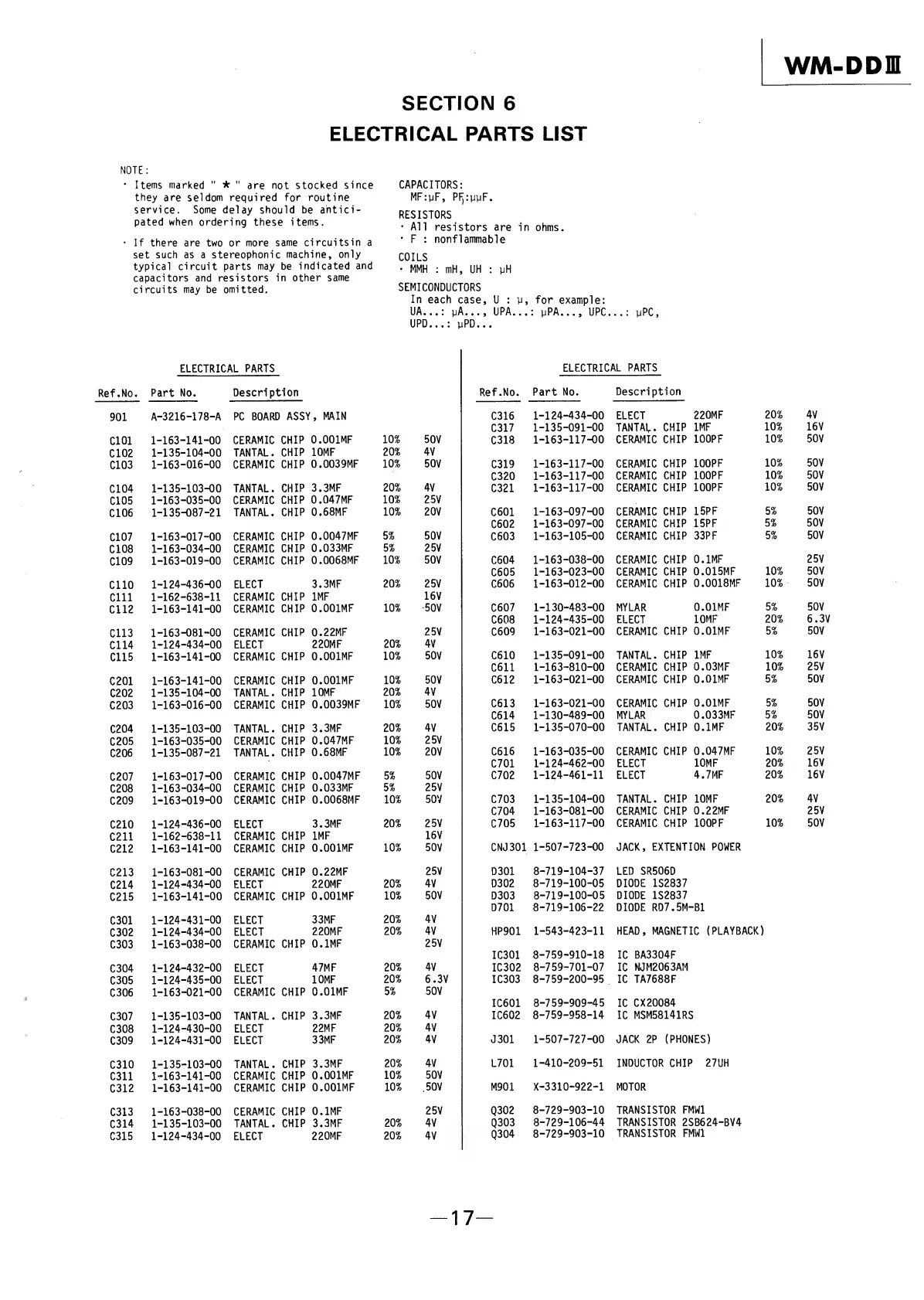

SECTION 6
ELECTRICAL PARTS LIST
WM-DDin
NOTE:
• Items marked " * " are not stocked since
they are seldom required for routine
service. Some delay should be antici¬
pated when ordering these items.
• If there are two or more same circuits in a
set such as a stereophonic machine, only
typical circuit parts may be indicated and
capacitors and resistors in other same
circuits may be omitted.
CAPACITORS:
MF:pF, PF-:ppF.
RESISTORS
• All resistors are in ohms.
• F : nonflammable
COILS
• MMH : mH, UH : pH
SEMICONDUCTORS
In each case, U : p, for example:
UA—: pA..., UPA...: pPA..., UPC...: pPC,
UPD_: pPD...
ELECTRICAL PARTS
ELECTRICAL PARTS
Ref.No.
Part No.
Description
Ref.No.
Part No.
Description
901
A-3216-178-A
PC BOARD ASSY, MAIN
C316
1-124-434-00
ELECT 220MF
20%
4V
C317
1-135-091-00 TANTAL. CHIP IMF
10%
16V
Cl 01
1-163-141-00 CERAMIC
CHIP
0.001MF
10%
50Y
C318
1-163-117-00
CERAMIC CHIP 100PF
10%
50V
C102
1-135-104-00
TANTAL.
CHIP 10MF
20% 4V
C103
1-163-016-00 CERAMIC CHIP
0.0039MF
10% 50V
C319
1-163-117-00
CERAMIC CHIP 100PF
10%
50V
C320
1-163-117-00
CERAMIC CHIP 100PF
10%
50V
C104
1-135-103-00 TANTAL.
CHIP
3.3MF
20%
4V
C321
1-163-117-00 CERAMIC CHIP 100PF
10% 50V
C105
1-163-035-00
CERAMIC
CHIP
0.047MF
10% 25V
C106
1-135-087-21
TANTAL.
CHIP
0.68MF
10% 20V
C601
1-163-097-00
CERAMIC CHIP 15PF
5%
50V
C602
1-163-097-00
CERAMIC CHIP 15PF
5% 50V
C107
1-163-017-00
CERAMIC
CHIP
0.0047MF
5%
50V
C603
1-163-105-00
CERAMIC CHIP 33PF
5%
50V
C108
1-163-034-00 CERAMIC
CHIP
0.033MF 5%
25V
C109
1-163-019-00 CERAMIC
CHIP
0.0068MF
10%
BOV
C604
1-163-038-00
CERAMIC CHIP 0.1MF
25V
C605
1-163-023-00
CERAMIC CHIP 0.015MF
10%
BOV
C110
1-124-436-00
ELECT
3.3MF
20% 25 V
C606
1-163-012-00
CERAMIC CHIP 0.0018MF
10% 50V
cm
1-162-638-11 CERAMIC
CHIP
IMF
16V
Cl 12
1-163-141-00
CERAMIC
CHIP
0.001MF
10% 50 V
C607
1-130-483-00
MYLAR 0.01MF
5% 50V
C608 1-124-435-00
ELECT 10MF
20% 6.3V
C113
1-163-081-00 CERAMIC CHIP
0.22MF
25V
C609
1-163-021-00
CERAMIC CHIP 0.01MF
5%
BOV
Cl 14
1-124-434-00 ELECT
220MF
20%
4V
Cl 15
1-163-141-00 CERAMIC
CHIP
0.001MF
10% BOV
C610 1-135-091-00
TANTAL. CHIP IMF
10% 16V
C611
1-163-810-00 CERAMIC CHIP 0.03MF
10%
25V
C201
1-163-141-00 CERAMIC
CHIP
0.001MF
10%
BOV C612
1-163-021-00
CERAMIC CHIP 0.01MF
5% BOV
C202
1-135-104-00
TANTAL. CHIP
10MF
20%
4V
C203
1-163-016-00 CERAMIC
CHIP
0.0039MF 10%
50 V
C613
1-163-021-00 CERAMIC CHIP 0.01MF
5% 50V
C614
1-130-489-00 MYLAR 0.033MF
5% BOV
C204
1-135-103-00 TANTAL. CHIP
3.3MF
20% 4V
C615
1-135-070-00 TANTAL. CHIP 0.1MF
20%
35V
C205
1-163-035-00 CERAMIC
CHIP
0.047MF
10%
25 V
C206
1-135-087-21
TANTAL.
CHIP
0.68MF
10% 20V
C616 1-163-035-00
CERAMIC CHIP 0.047MF
10%
25V
C701
1-124-462-00
ELECT 10MF
20%
16V
C207
1-163-017-00
CERAMIC CHIP
0.0047MF 5%
50V C702
1-124-461-11
ELECT 4.7MF
20% 16V
C208
1-163-034-00
CERAMIC
CHIP
0.033MF
5%
25V
C209
1-163-019-00
CERAMIC
CHIP
0.0068MF
10%
50 V C703
1-135-104-00 TANTAL. CHIP 10MF
20%
4V
C704 1-163-081-00 CERAMIC CHIP 0.22MF
25V
C210
1-124-436-00
ELECT
3.3MF
20%
25V
C705
1-163-117-00 CERAMIC CHIP 100PF
10% 50V
C211
1-162-638-11
CERAMIC
CHIP
IMF
16V
C212
1-163-141-00
CERAMIC
CHIP 0.001MF
10% 50V
CNJ301 1-507-723-00 JACK, EXTENTION POWER
C213
1-163-081-00
CERAMIC
CHIP 0.22MF
25 V
D301
8-719-104-37 LED SR506D
C214
1-124-434-00
ELECT
220MF
20%
4V
D302 8-719-100-05 DIODE 1S2837
C215
1-163-141-00
CERAMIC
CHIP
0.001MF
10%
50V
D303
8-719-100-05
DIODE 1S2837
D701 8-719-106-22
DIODE RD7.5M-B1
C301
1-124-431-00 ELECT
33MF
20%
4V
C302
1-124-434-00 ELECT
220MF
20% 4V
HP901
1-543-423-11
HEAD, MAGNETIC (PLAYBACK)
C303
1-163-038-00
CERAMIC
CHIP
0.1MF
25V
IC301 8-759-910-18 IC BA3304F
C304
1-124-432-00
ELECT
47MF
20% 4V
IC302
8-759-701-07 IC NJM2063AM
C305
1-124-435-00 ELECT
10MF
20%
6.3V
IC303
8-759-200-95
IC TA7688F
C306
1-163-021-00
CERAMIC
CHIP
0.01MF
5%
50V
IC601
8-759-909-45
IC CX20084
C307
1-135-103-00 TANTAL. CHIP
3.3MF
20%
4V
IC602
8-759-958-14
IC MSM58141RS
C308
1-124-430-00 ELECT
22MF
20%
4V
C309
1-124-431-00 ELECT
33MF
20%
4V
J 301
1-507-727-00 JACK 2P (PHONES)
C310
1-135-103-00
TANTAL.
CHIP
3.3MF
20%
4V L701
1-410-209-51 INDUCTOR CHIP 27UH
C311
1-163-141-00
CERAMIC
CHIP
0.001MF
10%
50V
C312
1-163-141-00 CERAMIC
CHIP
0.001MF
10%
BOV M901 X—3310—922—1 MOTOR
C313
1-163-038-00 CERAMIC CHIP
0. IMF
25V Q302
8-729-903-10
TRANSISTOR FMW1
C314
1-135-103-00 TANTAL.
CHIP 3.3MF
20% 4V
Q303
8-729-106-44
TRANSISTOR 2SB624-BV4
C315
1-124-434-00 ELECT
220MF
20%
4V
Q304
8-729-903-10
TRANSISTOR FMW1
17
